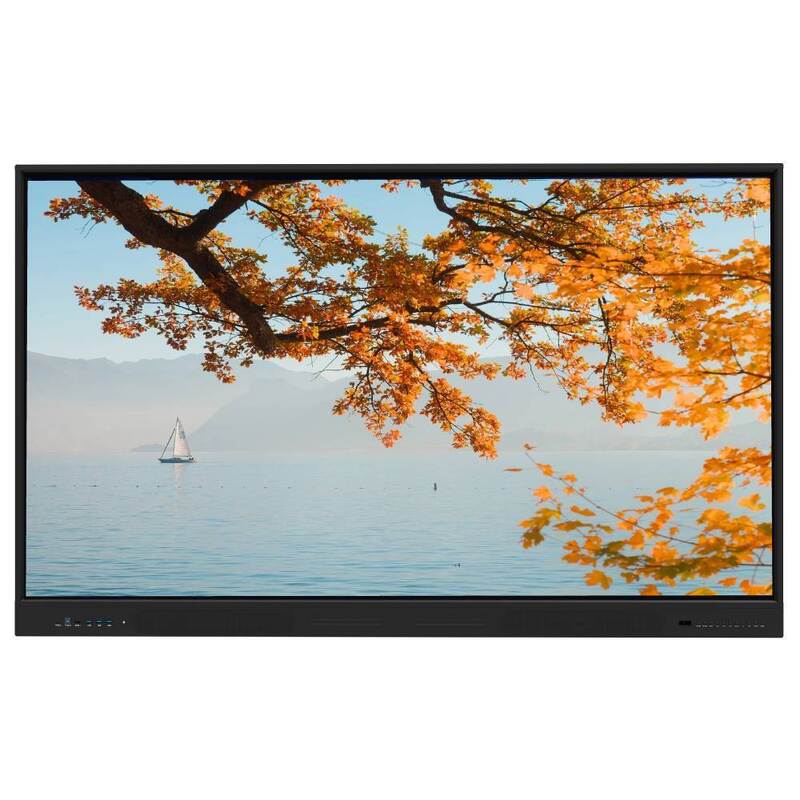

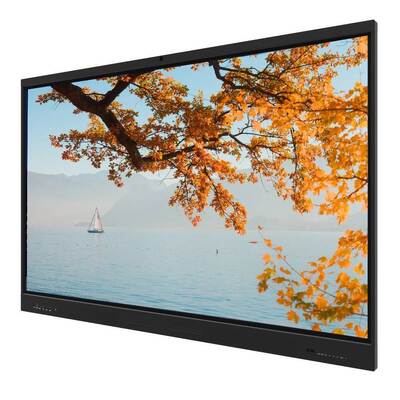

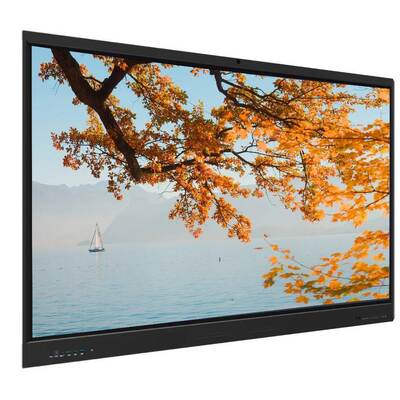

Interactive Flat Panel Whiteboard 75 86 Inch with 48MP AI Camera 8 Mic Integrated and Wireless Share Module
Product Details:
| Place of Origin: | China |
| Brand Name: | iBoard |
| Certification: | CE |
| Model Number: | TE-QS-75 /TE-QS-86 |
| Document: | TE-QS-75 TE-QS-86 Series B...tx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton box, 1pc/carton, optional with wooden frame or box |
| Delivery Time: | 18-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs per month |
|
Detail Information |
|||
| Camera & Mic: | 48MP Ai Camera And 8 Mic Integrated | Mobile Stand: | 65-86 Inch Monitor |
|---|---|---|---|
| Wireless Share Projection Module: | Yes | Warranty: | 3 Years Warranty |
| Certificate: | TÜV, Energy Star , EPEAT, RoHS, REACH, WEEE,etc. | ||
| Highlight: | 48MP AI Camera Interactive Flat Panel,8 Mic Integrated Interactive Whiteboard,Wireless Share Module Smart Board |
||
Product Description
Interactive Flat Panel Whiteboard 75" & 86"
Advanced interactive display with Android 14, 8GB RAM, 128GB storage, 48MP AI camera, and 8-array microphone. Includes wireless sharing module and mobile stand. Windows OPS PC optional.
Key Features
- 20 multi-touch points for collaborative work
- Dual operating system support (Android and Windows)
- Whiteboard software for annotation, sharing, and recording
- Wireless projection from mobile devices and laptops
- Dual-band Wi-Fi (2.4G & 5G) support
- Ultra HD 4K resolution (3840x2160)
- Comprehensive interface ports including USB, HDMI, and Type-C
- 8ms writing latency for smooth operation
Dimensions
75 Inch Model
86 Inch Model
Technical Specifications
| Specification | TE-QS-75 | TE-QS-86 |
|---|---|---|
| Display Backlight | DLED backlight | |
| Resolution | Ultra HD 4K (3840 x 2160 pixels) | |
| Brightness | 350 cd/㎡ | |
| Contrast Ratio | 4000:1 | |
| Screen Size | 1650x927 mm | 1895x1065 mm |
| Aspect Ratio | 16:9 | |
| Viewing Angle | 178° (H/V) | |
| Color Depth | 10bit, 1.07 Billion colors | |
| Writing Latency | 8ms | |
| Lifespan | 100,000 hours | |
| Glass Protection | 4mm anti-reflective, anti-glare, 9H Mohs hardness | |
| Android System | Android 14.0, 8-core ARM Cortex-A55, Quad-core Mali G52 | |
| Memory & Storage | 8GB RAM, 128GB Storage | |
| Connectivity | Wi-Fi 5, Ethernet 10/100M, Bluetooth 5.0 | |
| Camera & Audio | 48MP AI camera with auto frame, voice tracking; 8-array microphone; 15W x 2 speakers | |
| Touch Technology | Infrared Touch, 20 touch points | |
| Touch Accuracy | <2mm | |
| Power Consumption | <350W | <415W |
| Product Dimensions | 1705x1030x97 mm | 1952x1169x97 mm |
Connectivity & Ports
Front Ports:
1 x HDMI, 3 x USB-A 2.0, 1 x USB-B (Touch), 1 x Type-C
Rear Input Ports:
1 x HDMI, 1 x VGA & AUDIO IN, 1 x USB-A 3.0, 1 x USB-A 2.0, 1 x TOUCH-USB, 1 x RS232 (COM port), 1 x RJ45 IN, 1 x MIC IN, 1 x OPS SLOT
Rear Output Ports:
1 x HDMI-out, 1 x SPDIF (Optical), 1 x Earphone (Audio Out)
Included Accessories
Magnetic Pen (x2), Power Cable, Remote Control, Wall mounting bracket with Installation Guide, Mobile stand, Wireless projection module

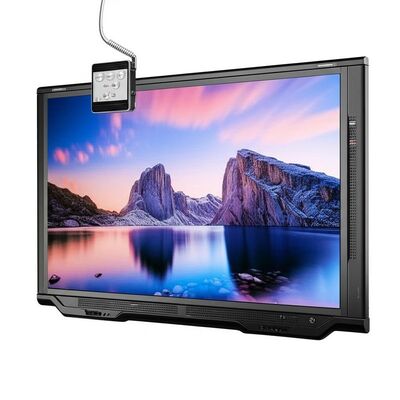

Additional Product Image
Packaging
1 unit per carton. Optional wooden frame or box packaging available.
