86 inch Interactive Flat Panel Touch TV Smart Boards（Entry-level）
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | Support OEM brand |
| Certification: | CE, RoHS，FCC |
| Model Number: | TE-QS3-86 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 piece |
|---|---|
| Price: | USD699-850 per piece |
| Packaging Details: | Carton Package |
| Delivery Time: | 20-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Touch Technology: | Infrared | Touch Point: | 20 Touch Points |
|---|---|---|---|
| Resolution: | 3840*2160 | Accuracy: | 2mm |
| Touch Method: | Finger Or Any Opaque Objects | Response Time: | 8ms |
| Operating System: | Android，Optional With Windows/Linux/Mac | Storage: | Temperature: -30°C~60°C Humidity: 0%~95% |
| Operation: | Temperature: -10°C~45°C Humidity: 10%~90% | Installation: | Wall Mounted, Mobile Stand (optional) |
| Color: | Black (other Colors Optional ) | Name: | Conference Board Interactive Flat Panel Display/ Touch Screen Display Smart TV 65" 75" 86" Built In Camera And Mic |
| Folded: | No | Size: | 86 Inch, 65&75 Inch Available |
| Application: | School, Office, Training, Presentation | Warranty: | 1 Year |
| Material: | Aluminum Alloy Frame | Aspect Radio: | 16:9 |
| Interface: | USB, RS232, HDMI... | Shipping Way: | Sea Shipping Air Freight Truck Freight |

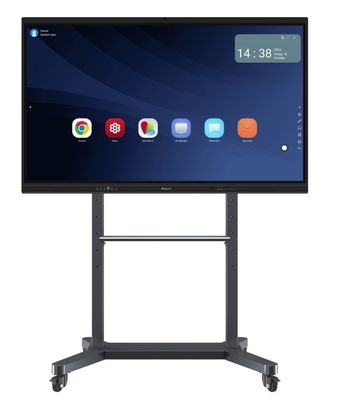

| Mobile Stand: | Optional | OPS Computer: | Optional |
| Camera: | Optional Built In Or External | Microphone: | 8 Array Optional |
| Highlight: | 86 inch interactive flat panel,entry-level smart touch TV,interactive flat panel with warranty |
||
Product Description

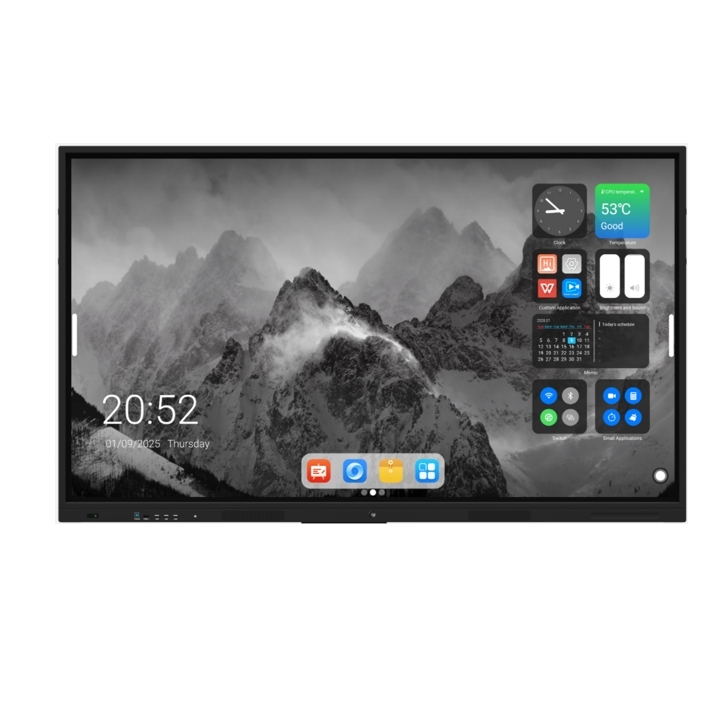

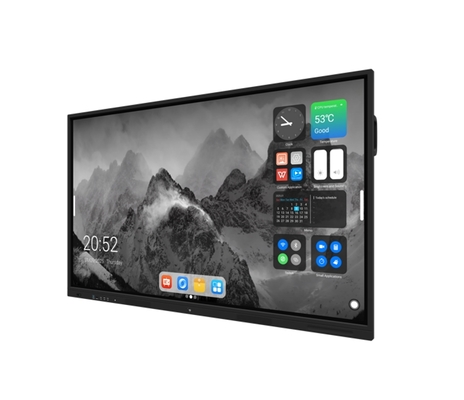

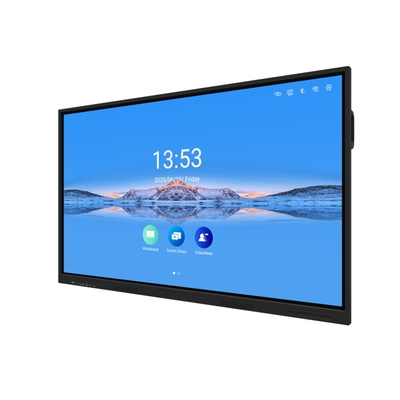

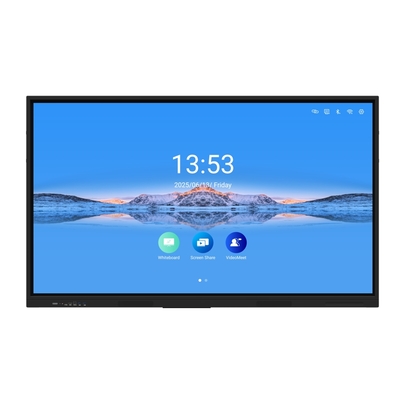

86 inch Interactive Smart TV Touch Screen
for Classroom (Entry-level)
Newly economical model, with built in Camera and MIC(optional), good outlooking and wide view angle, bring a different new visual experience for presentation.
Size: 65" 75" 86"
Frame color in Black or black+silver grey for choice.
Fast and high accuracy infrared Multi-touch, smooth writing and convenient finger-guesture erasing. Built-in HD remote-distance meeting system, support up to remote meeting devices to join meeting. Support scan QR code of the whiteboard software to share the meeting records by mobile devices.
86" Drawing dimension for reference:
Production size: 1954*1169*85 mm
Carton size: 2070*1310*185 mm
Weights: 60/77 kgs
Loading reference: 32pcs/ 67pcs(1x 20GP), 134pcs (1x40HQ)
Packing Details
| Series no. | Model | Size | Packing (cartons) | Net Weight(kgs) | Gross Weight(kgs) |
| LxHxW(mm) | |||||
| 1 | QS3 | 65 | 1590x1043x160 | 35 | 47 |
| 2 | 75 | 1835x1173x160 | 50 | 65 | |
| 3 | 86 | 2070x1310x185 | 60 | 77 |
For Containers reference
| 65" | 75" | 86" | |
| 20FEET | 96PCS | 43pcs | 32pcs |
| 40HQ | 204PCS | 176PCS | 134PCS |
With competitive price, for more details, please feel free to check with our sales team OSD019@TOUCH-EASY.COM.
