OPS Computer I5/ I7 For Interactive Flat Panel Smart Boards
Product Details
| CPU: | 12th Gent Intel ® CoRE ™ I5-1250PE Processor | Memory: | 1* SO-DIMM DDR4 8GB/16GB |
|---|---|---|---|
| Storage: | 1* 2.5" SATA HDD/SDD (256GB/ HDD 1TB ） | Graphic: | Intel® UHD Graphics For 12th Gen Intel® Processors |
| Display Output: | HDMI/DP, Support Synchronous Dual Display | Network 1: | 1*M.2 2230 For WIFI +BT 4.2 |
| Network 2: | Lan 1* 8111H 10M/100M/1000M Ethernet | Product Size: | 195*180*30/ 42 Mm |
| Carton Size: | 282*258*77mm | Weights: | 1.4/ 1.5kgs |
| Interface: | USB, VGA, RS232, HDMI | Screen Size: | 55" 65",75",86", 98" |
| Shipping Way: | Sea Shipping Air Freight Truck Freight | Touch Points: | 20 Points |
| Warranty: | 1 Year | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Windows/Linux | Accuracy: | 2mm |
| Mobile Stand: | Optional | Colors: | Black Or OEM |
| Highlight |
OPS Interactive Flat Panel,i5 Interactive Flat Panel,i7 Interactive Flat Panel |
||
Product Description

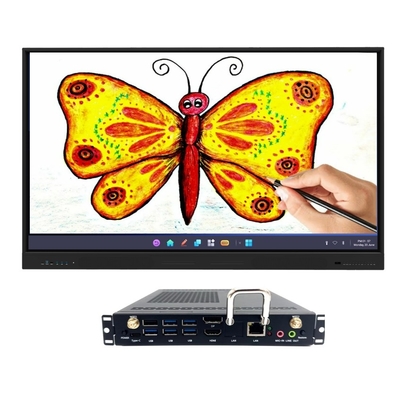

OPS computer i5/ i7 for Interactive Flat panel Smart boards
An OPS computer, short for Open Pluggable Specification computer, is a modular computer system designed primarily for use in Interactive Flat Panel and Touch screen display.
Thanks to the OPS computer, it allows for easy integration of computers into display devices, like interactive whiteboards, projectors, or digital signage, Touch screens...
Key Features

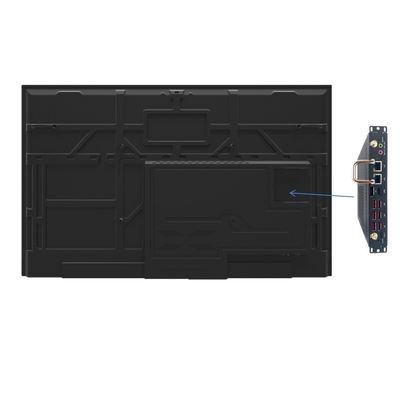

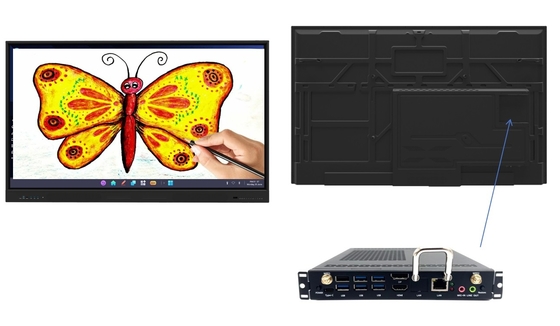

- Modular Design: The OPS computer can be easily inserted into and removed from compatible displays, simplifying maintenance and upgrades.
- Compact Size: Typically small and designed to fit into a specific slot on a display or a similar device, stardard OPS-C size 195*180*30/ 42mm.
- Connectivity: Usually comes with HDMI, USB, Ethernet, and other ports for seamless connectivity.
- Customizable: OPS computers can be configured with various operating systems, processing powers, and storage capacities to fit different needs.
They are widely used in industries like Education, Retail, and Corporate environments, which need to insert in the interactive display or digital signage .
Specification for Reference: I7-1255U
| Standard parameter | CPU | 12th Gent Intel ® CoRE ™ I7-1255U Processor | ||
| RAM | SO-DIMM DDR4 2666 8GB Memory | |||
| Storage | 1*M.2 2280 Interface Support NVMe and SATA dual protocols (manual switching required) (SSD 256G) | |||
| GPU | Intel® UHD Graphics | |||
| Display output | HDMI/DP/Type-c, Supports synchronous dual display, asynchronous three display | |||
| Network | Lan |
1* Intel I226-V 2.5G Ethernet 1* 8111H 10M/100M/1000M Ethernet |
||
| WIFI | 1*M.2 2230 for Wifi+BT 4.2 | |||
| Audio | Cmedia USB Audio(HS100B) | |||

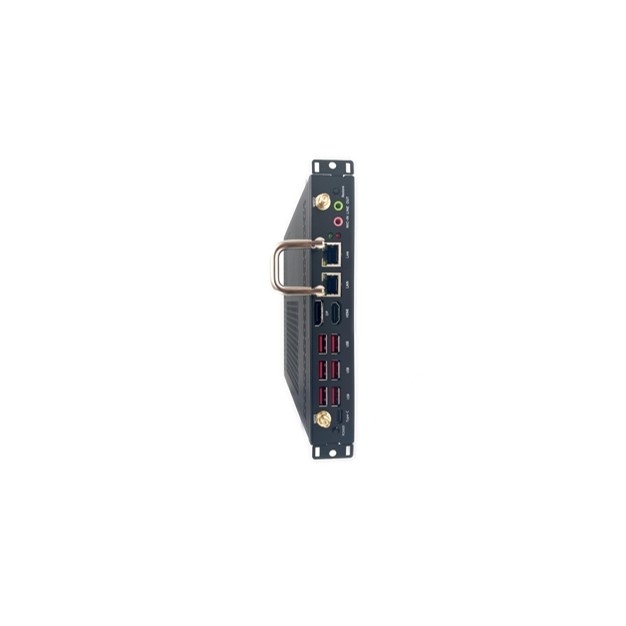

| I/O ports | Front | 1*HDMI2.0 out 1*DP1.4 out 5*USB 3.0 1*USB2.0 2* RJ45 1*Power 1* Reset 1*Line out 1*Mic in 1*Type-C(USB 3.0+Video)1*Power LED 1*HDD/SSD LED 2*WIFI/BT ANT | ||
| Rear | ||||
| 1*JAE 80PIN:HDMI2.0 out(4K/60Hz) | ||||
| Power Supply | Power input | 19V4.74A | ||
| Dimension | Size(mm) | Prouct size : 195*180*30mm | Packing size:282*258*77mm | |
| Weights(kg) | N.W≈1.2 Kg G.W≈1.4Kg | |||
| Temperature and Humidity | Working Temperature | 0°C~ 45°C | ||
| Storage Temperature | -40°C~ 80°C | |||
| Working Humidity | 10% - 95% @40°C RH | |||
| Operation System | OS | Windows 10/11, Linux | ||
For more details, please check with our sales team osd019@touch-easy.com.
