Portable Interactive Whiteboard Pen Touch Sensitive Interactive Device on Normal Whiteboard or Flat Surface for school
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | IB-3D5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD82-90 per piece |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Calibration: | Automatic(5s) / Manual (25/36 Points) | Technology: | Optical Technology |
|---|---|---|---|
| Resolution: | 32768*32768 | Minimum Active Size: | 40 Inch |
| Max Active Size: | 150 Inch | Positional Accuracy: | ±1 Pixel |
| Aspect Ratio: | 4:3；16:9；16:10 | Projector Ratio: | Ultra Short Throw : 0.28, 3D4ENGLB4, Installation Distance:0.40~0.55M; Short Throw：0.34,3D4ENGLA4, Installation Distance:0.54~1.1M； Long Throw：1.34 , 3D4ENGLE4, Installation Distance:2.15~3.2M. |
| Whiteboard Type: | Portable Interactive Whiteboard, Portable Electronic Whiteboard | Type: | Whiteboard,Portable Interactive Whiteboard |
| Product Name: | Interactive Whiteboard,China Wholesale Price USB Connection Portbable Interactive Whiteboard | Interface: | USB,USB2.0 |
| Warranty: | 1 Year | Application: | Meeting,Classroom,School Teaching,training,Education |
| Usage: | Classroom For Teaching,conference Room,household,Education Smart Boards,advertising | Support Os: | Linux,Window,WIN7/WIN8/WIN10/Android(optional),MAC,Android |
| Power Consumption: | 100mw | Signal Refresh Rate: | 120fps. |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Andriod/Windows/Linux/Mac.etc. | Accuracy: | 2mm |
| Mobile Stand: | Optional | Colors: | Black Or OEM |
| Highlight: | School Interactive Whiteboard Pen,Flat Surface Interactive Whiteboard Pen,Portable Interactive Whiteboard Pen |
||
Product Description
Best Pen Touch Optical Portable USB Interactive Whiteboard smartboards for classroom
Pen Touch Interactive Whiteboard (3D TOUCH)
Product introduction
3D5 is our newest Generation Portable Interactive Whiteboard, which is more stable, easy to install and use, response quickly and latency less. 3D Touch 5 use optical technology,it can convert any flat surface into interactive whiteboard.Advantage over traditional whiteboard:auto calibration;write on any flat surface,(such as wall,blackboard,LCD panel);active size from 40-150inch;low cost.
Product installation
1. High stability: Use the advanced algorithm to avoid the affect of the light.
2. Support three ways calibration(Picture A).5s auto calibration(calibrate dot is up to 289units),Semi auto calibration,Manual calibration.
Picture A Picture B
Picture A Picture B 3.Support 10 points touch.Ten people write together without any interference. (Need equip with more pens) (as Picture B)
4.Support size from: 40-150 inch.
5.Portable, high integration and easy to install: Total weight is only around 500g. The installation is very easy, just install the sensor mounted to projector or ceiling, No skill needed.
6.Sensor with the flash chips: Don’t need to calibration if you change the computer with the same resolution ratio. It save time, and make the use easier.
7.Automatic-control filter.When calibrating,the filter keep open;when finished,the filter close.
8.Turn common board or wall to touch board. It can turn any flat surface (whiteboard, wall and so on) into ir pen touchable.
Technical Parameter
Comparison Table
| Portable Pen touch interactive whiteboard | |
| Calibration | Automatic(5s) / Manual (25/36 points) |
| Technology | Optical Technology |
| Resolution | 4096*4096 |
| Multi-writing | Max 10 people can write at the same time |
| Latency | <30ms |
| Filter | Software auto-control, enhance stability. |
| Minimum Active Size | 40-inch |
| Max Active Size | 150-inch |
| Positional Accuracy | ±1 Pixel |
| Aspect Ratio | 4:3；16:9；16:10 |
| Projector ratio | Ultra short throw : 0.28, 3D4ENGLB4, installation distance:0.40~0.55M; Short throw:0.34,3D4ENGLA4, installation distance:0.54~1.1M； Long throw:1.34 , 3D4ENGLE4, installation distance:2.15~3.2M. |
| Power Consumption | 100mw |
| Signal refresh rate | 120fps. |
| Connect | The sensor and computer are connected by USB Cable |
| Weight | 0.25kg |
| OS Requirement | Windows XP, Vista, Windows 7,windows 8,Windows10,Android |
| Software | Calibration software(driver) and GLboard(education software) |
| Certification | CE, FCC |
| Warranty | 3-year |

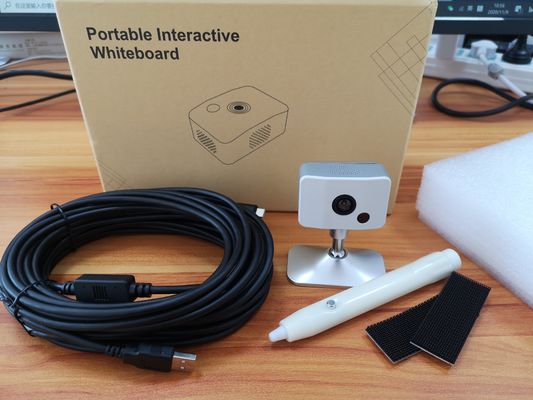

| Package | 1. Sensor 2..Mounts 3.USB cable (12m*1) 4.Infrared pen 5.Manual |
| Technology | Auto Calibrate | Multi Writing | Calibration Accuracy | Portable | Response Speed | Variable Size | Vulnerable | Cost |
| Electromagnetic Induction | No | Few | Better | No | Slow | No | Yes | High |
| Infrared | No | No | Better | No | Quicker | No | Yes | High |
| Pressure | No | Few | Good | No | Quick | No | Yes | Higher |
| Ultrasound | No | No | Good | No | Quick | No | No | Low |
| Optical | Yes | Yes | Better | Yes(250g) | Quickest | 40-150inch | No | Low |
Introduce of our company:
Want to Know more details about this product
