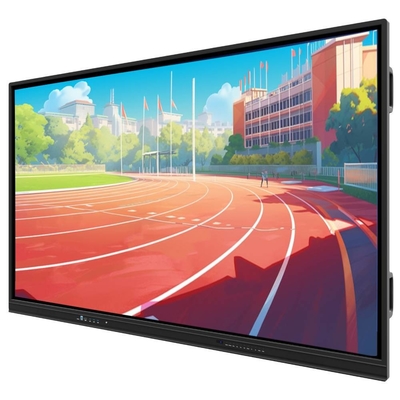

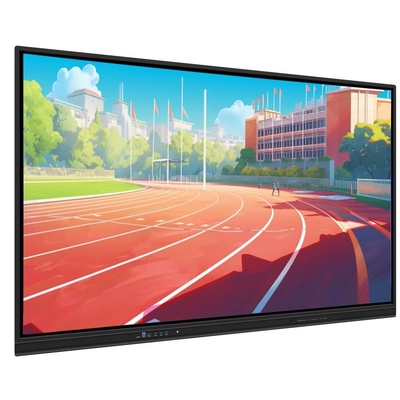

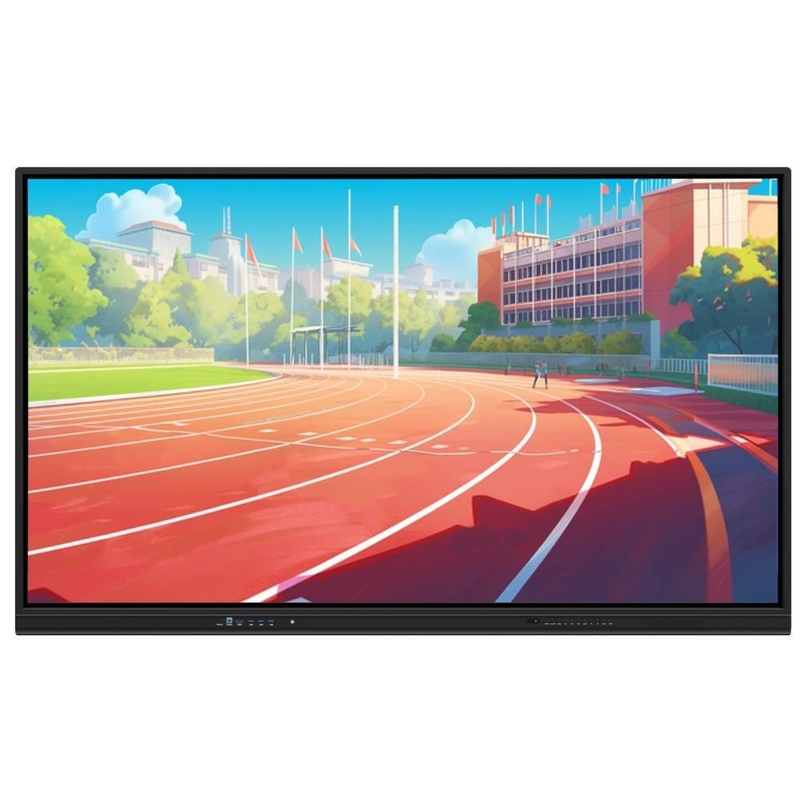

Iboard 55 Inch Interactive Flat Panel Display LCD Touch Screen Monitor TE-QS Series With USB HDMI Port For Education
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-QS-55 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD580-650/PC |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Working Mode: | 7/24 | Screen Type: | LCD |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Resolution: | 3840*2160 4K UHD |
| Contrast Ratio: | 1200:1 | Diagonal Size: | 55 Inch |
| Wifi: | 2.4G/5GHz | Bluetooth: | 5.0 |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | TE-QS series Interactive Flat Panel,LCD touch screen Interactive Flat Panel,55 Inch Interactive Flat Panel Display |
||
Product Description
Interactive Flat Panel Display TE-QS Series
Android 13 4+32G
• diagonal: at least 55 inches,model: TE-QS-55
• screen type: LCD
• typical contrast 1200:1
• resolution: at least 3840x2160, 4K
• speaker power2*15W
• screen aspect ratio: 16:9
• LAN connectivity,
• Wi-Fi -Fi connectivity,
• RS-232 connectivity,
• Internal memory: at least 32GB,
• RAM: at least 4GB,
• with at least 2 HDMI inputs,
• with at least 2 USB 2.0 inputs,
• HDMI cable
• power cable (EU standard)
• working mode: 24/7
• convenience for wall mounting
• remote control
• operating system in English and/or Russian language with the ability to read (run) at least MPEG 4, AVI and APK format files or applications.
Products must be unused, in packaging.
The warranty period for the products shall be at least 3 years
| Item | iboard 55 inch interactive flat panel display LCD touch screen monitor TE-QS series with USB HDMI port for education |
| Model | TE-QS-55 |
| Diagonal size | 55 inch (screen size:
1212*682mm)
|
| Screen type | LCD |
| Aspect ratio | 16:9 |
| Contrast ratio | 1200:1 |
| Brightness | 350 cd/m2 |
| Resolution |
3840*2160 4K UHD
|
| Glass | AG tempered glass
4mm thickness, 7H hardness
|
| Android version |
Android 13.0 (4 x ARM Cortex-A55@1.9GHz Quad-core MaliG52) 4+32G
|
| Bluetooth | 5.0 |
| WIFI |
2.4GHz for WIFI ,5GHz for wireless sharing; Wi-Fi® Module IEEE* 802.11a/b/g/n/ac
|
| Screen share | wireless share |
| Input ports |
Rear: 2*HDMI2.0, 1*VGA&AUDIO IN, 1*YPBPR, 1*USB 2.0, 1*USB 3.0, 1*TOUCH-USB, 1*RS232,
1*LAN IN, 1*AV IN, 1*MIC IN, 1*DP, 1*OPS SLOT
Front: 1*HDMI2.0, 1*TOUCH USB, 3*USB3.0, TYPE-C
|
| Output ports |
1*HDMI-out; 1*COAXIAL, 1*Earphone, 1*LAN OUT, 1*AV OUT
|
| Front keys |
8KEY(POWER,SOURCE,MENU,VOL-,VOL+,HOME,ENTER, ES)
|
| Light sensor |
Integrated light sensor for brightness detector that automatically adjusts the brightness of the panel according to ambient light.
|
| Voltage |
AC(100～240)V-50/60HZ
|
| Power range |
Standby Power<1W Rated Power<150W
|
| Touch technology | Infrared touch |
| Accessories |
Magnetic Pen*2, 10M HDMI Cable*1, Touch USB cable*1, EU Power Cable*1, Remoter*1, Wall
mounting bracket*1
|
| Product size (mm) |
1263*780*84
|
| Packing size (mm) |
1385*194*920mm
|
| N.W./G.W |
20/26
|
| Warranty | 3 years |
Applicatons: school teaching, classroom, education, training,presentation,conference meeting,office,etc.
Packing: 1pc/carton, optional to be with wooden crate/pallet
For more details,please refer to the data sheet.TE-QS-55 55 inch Touch Screen Monitor - Android 13...
