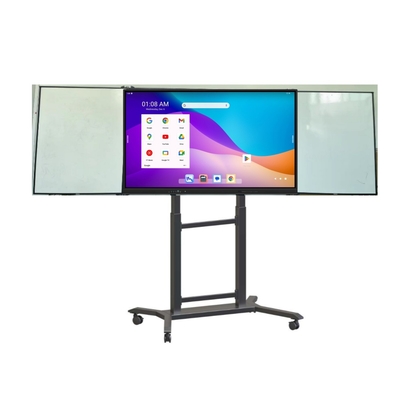

75 Inch Interactive Display With Electronic Stand With Side Viewings

75 inch Interactive Display with Electronic Stand with Sidewings​

​

Description of Interactive Display

iBoard Interactive Touch Solutions for School Classroom, office, conference presentation, Trainning, annotation ect.

Built in Android 13 ( 16G+256G), come with OPS slot for windows system. Camera& mic optional, different color for option.

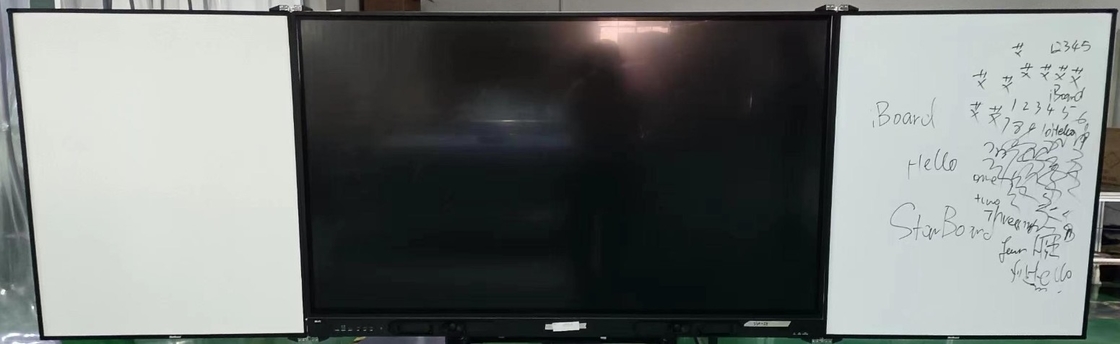

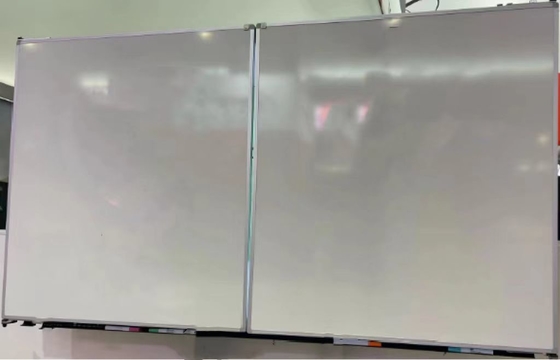

This is our latest version of smart board, it also come with eletronic stand as an option.The board have 4 classic metal-ceramic writing surfaces, framed with aluminium frames, for writing with marker. In the closed position, the hinged sides will provide protection for the interactive monitor in the middle of the board. Here can be with locks or not based on the request of the users.

The 4 classic writing surfaces (marker) will be magnetic(we have whiteboard or black board for option), 1200mm high and 1000mm wide. In the version with closed sides, the board will be maximum 2000 mm long. In the open version - it will be maximum 4000 mm (format 1000+2000 (monitor) +1000mm).

Information of Eletronic stand

Electrically adjustable height, the support structure of the interactive display and the sides is made of rectangular profiles, joined by welding executed robotically in argon, electrostatically painted and polymerized, with the size of 30x30x1.5mm. The 2 legs are made of rectangular profiles measuring 50x80x1.5mm, which are telescopically joined together.

The electrically operated column makes it easy to adjust the display to the right height. Thanks to the silent electric motor, the display height can be adjusted by one person via remote control, the sturdy column base can easily lift a monitor and its sides, with a maximum supported weight of 135 kg, the whole mechanism can be moved thanks to the 4 wheels are equipped with a safety brake so that the stand stays in position, when in standby mode, the stand consumes no more than 0. 1 W, making it an energy efficient device, column height adjustment range: 650-1200mm (plus the height of the interactive monitor), lifting/lowering speed: min 30 mm/s, with 220V power supply.

The stand allows the installation of 75" diagonal interactive monitors in the centre.

Webcam (optional)

With 13 MP camera, recessed into the top side of the interactive monitor, equipped with 8 microphones and a 120-degree viewing angle.

OPS computer(optional)

We have many different options for the ops computer, according to the request from the user.

Specifecation of Interactive Display

We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one. With various experience on making OEM/ODM interactive flat panels and interactive whiteboard, products sold to more than 80 countires in the world.

SKD support;

Easy for after-sales service;

Good quality control;

Warranty up to 3 years support( just need 3% extra cost), normally one year for panel, 3 year for the rest parts.

Firmware OTA upgrades for lifetime.

Remark: For more details of the specification, please contact us to know more. All Product specifications and pictures are for reference only and subject to change without prior notice.
