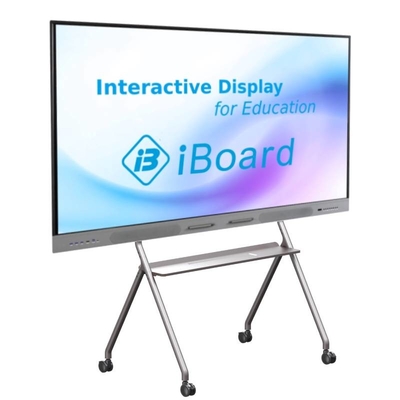

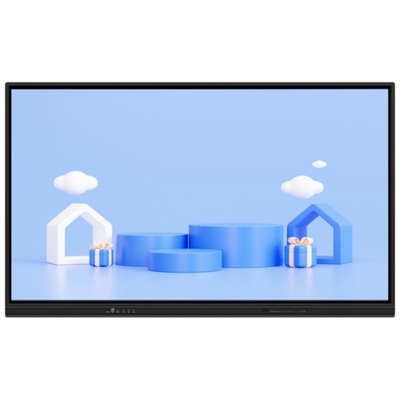

98 Inch All In One Interactive Whiteboard Smart Board For Office School

Basic Information
Place of Origin: China
Brand Name: iBoard/ OEM
Certification: CE FCC Rohs
Model Number: TE-YL98
Minimum Order Quantity: 2 pieces
Price: USD1700-USD2500 per piece
Packaging Details: Export Cartons
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 8000 pieces per month
Screen Size: 98 Inch Touch Points: 20 Points
Color: Black, Grey, Silver (Other Colors Optional ) Application: Educational Teaching, Meeting, Training, Home
Operating System: Android, Windows Brightness: 350cd/m2
Interface: USB2.0/3.0,USB/RS232/RJ45,USB,HDMI... Material: Aluminum Alloy Frame
Certificates: CE, ROHS, FCC...
High Light:

98 Inch All In One Interactive Whiteboard

,

Interactive Whiteboard Smart Board with OPS

,

98 inch Interactive Whiteboard Smart Board

98 inch All in one Interactive Whiteboard Smart board

Description of Multi touch screen monitors

Interactive Touch Solutions for School Classroom, office, conference presentation, Trainning, annotation ect.

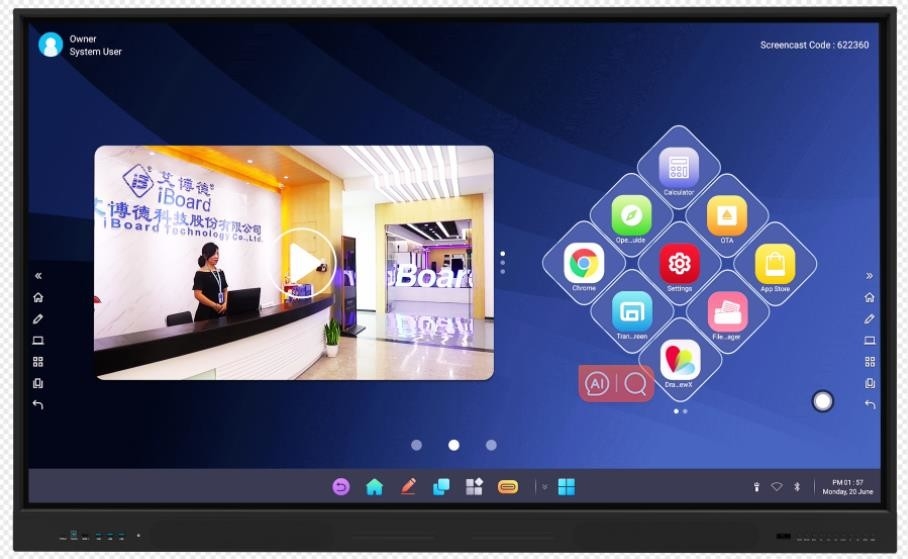

Built in Android ( 4G+32G/8G+64G), come with OPS slot for windows system. Camera& mic optional, different color for option.



We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one. With various experience on making OEM/ODM interactive flat panels and interactive whiteboard, products sold to more than 80 countires in the world.



We have Own developed Infrared technology and whiteboard software for free;

SKD support;

Easy for after-sales service;

Good quality control;

Firmware OTA upgrades for lifetime.





Specifecation of Interactive Touch Screen Monitor

Model TE-QS-65 TE-QS-75   TE-QS-86
Dispaly Backlight D-LED Backlight
Resolution 3840*2160 3840*2160 3840*2160
Brightness 450 cd/㎡ 450 cd/㎡ 450 cd/㎡
Contrast 1200:1 or higher 1200:1 or higher 1200:1 or higher
Screen Size(mm) 1428.5*803.5 1649.7*927.9 1895.04*1065.96
Aspect Ratio 16:9
View Angle 178°
Screen Mode 16:9/4:3/dot to dot/full screen
Color Depth 10bit, 1.07Billon colors 10bit, 1.07Billon colors 10bit, 1.07Billon colors
Panel Response Time 8ms 8ms 8ms
Suport Resolution 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ





Android Specification

Android 13.0

Ram: 8G/4G
Storage: 128G/64G/32G
I/O Ports Please contact us to know more detail specification
Front Button POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,...etc
Built in camera 13/48 Mega Pixels (Optional)
Built in Microphone 6/8 array microphones (Optional)
Voltage AC(100~240)V-50/60HZ
Power Range Standby Power<1W Standby Power<1W Standby Power<1W
Rated Power<230W Rated Power<350W Rated Power<415W









Touch Parameter

Touch Technology Infared Touch
Touch Points 20 touch points for both android & windows
Writing Mode Finger or any opaque object
Accuracy <2mm
Response Time 4~8ms
Cusor Speed 180 dot/s
Connection Port USB(full speed)
Operating System Windows/Linux/Mac/Android
Working Temperature 0℃-40℃



Remark: For more details of the specification , please contact us to know more detials.
