86 Inch Interactive Flat Panel Touch Screen Display for Education Conference
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-YL-86 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | USD650-USD1280 per piece |
| Packaging Details: | Carton Package, Wooden case or wooden crate optional |
| Delivery Time: | 10-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 7000 units per month |
|
Detail Information |
|||
| Screen Size: | 86 Inch, 65 /75/ 98 Inch | Touch Points: | 20-50 Points |
|---|---|---|---|
| Color: | Black, Grey, Silver (Other Colors Optional ) | Application: | Educational Teaching, Meeting, Training, Home |
| Operating System: | Android, Windows | Brightness: | 400cd/m2 Or Higher |
| Interface: | USB, VGA, RS232, HDMI, DP... | Material: | Aluminum Alloy Frame |
| Certificates: | CE, ROHS, FCC... | Service: | OEM/ ODM |
| Aspect Radio: | 16:9... | Screen Size: | 65",75",86", 98" |
| Shipping Way: | Sea Shipping Air Freight Truck Freight | Warranty: | 1 Year, Up To 3 Years |
| Power Supply: | AC 100-240V, 50/60Hz | Accuracy: | 2mm |
| Mobile Stand: | Optional | OPS Computer: | Optional In I3/i5/i7 |
| Camera&mic: | Optional Built In Or USB Connected | NFC Function: | Optional |
| Document Scanner: | Optional | Dongle: | Optional With Wirelss Screen Share Dongle |
| Highlight: | OEM 86 Inch Interactive Flat Panel,Aluminum Frame Interactive Touch Screen whiteboard,86 inch Interactive Touch Screen whiteboard |
||
Product Description
86 inch Interactive Flat Panel
65/75/ 98 Inch 4K Multi Touch Display
Description of Multi touch screen monitors
Interactive Touch Solutions for School Classroom, office, conference presentation, Trainning, annotation ect.

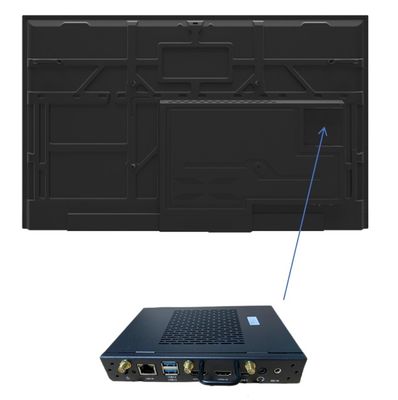

Built in Android ( 4G+32G/ 8G+128G/16+256GB), come with OPS slot for windows system. Camera& mic optional, different color for option.
We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one. With various experience on making OEM/ODM interactive flat panels and interactive whiteboard, products sold to more than 80 countires in the world.
We have Own developed Infrared technology and whiteboard software for free;
SKD support;
Customized service for UI/ logo...
Easy for after-sales service;
Good quality control;
Firmware OTA upgrades for lifetime.
Specifecation of Interactive Touch Screen Monitor
| Model | TE-YL-65 | TE-YL-75 | TE-YL-86 (Even 98") | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 450 cd/㎡ | 450 cd/㎡ | 450 cd/㎡ | |
| Contrast | 1200:1 or higher | 1200:1 or higher | 1200:1 or higher | |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ | |||
|
Android Specification |
Android latest version | |||
| Ram: 4G/8G/16GB | ||||
| Storage: 32G/64G/128GB/256GB | ||||
| I/O Ports | Please contact us to know more detail specification | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,...etc | |||
| Built in camera | 13/48 Mega Pixels (Optional) | |||
| Built in Microphone | 6/8 array microphones (Optional) | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
|
Touch Parameter |
Touch Technology | Infared Touch | ||
| Touch Points | 20 touch points for both android & windows | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <2mm | |||
| Response Time | 4~8ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB(full speed) | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||
Remark: For more details of the specification , please contact the sales team osd019@touch-easy.com for more detials.
