| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard/ OEM |
| Certification: | CE FCC Rohs |
| Model Number: | TE-YL5K |
| Minimum Order Quantity: | 5 pieces |
| Price: | USD600-USD950 per piece |
| Packaging Details: | Export Cartons |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 pieces per month |
| Screen Size: | 65 /75/ 86 /98 Inch | Touch Points: | 20 Points |
|---|---|---|---|
| Color: | Black, Grey, Silver (Other Colors Optional ) | Application: | Educational Teaching, Meeting, Training, Home |
| Operating System: | Android, Windows | Brightness: | 350cd/m2 Or Higher |
| Interface: | USB2.0/3.0,USB/RS232/RJ45,USB,HDMI... | Material: | Aluminum Alloy Frame |
| Highlight: | Infared Touch Interactive Flat Panel,Interactive Flat Panel 350cd/m2,350 cd/m2 Multi Touch screens |
||

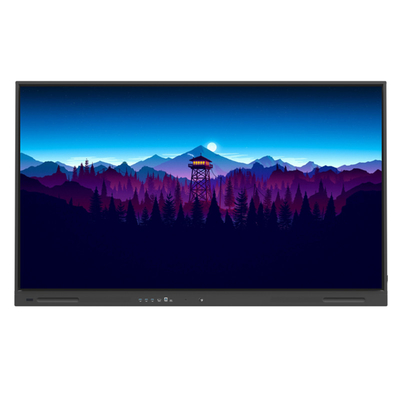

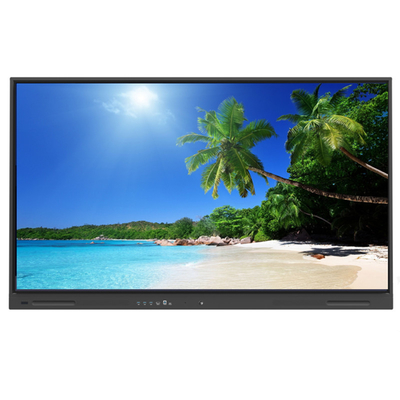

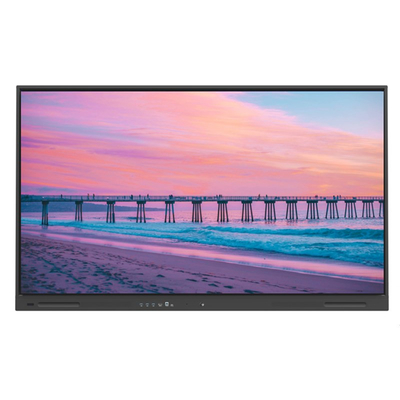

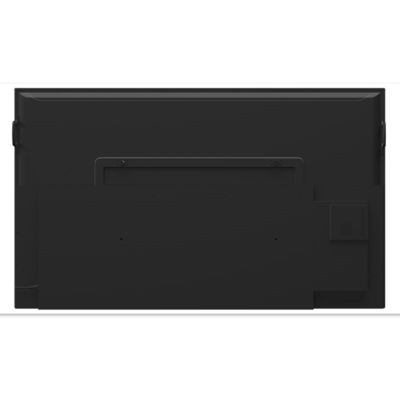

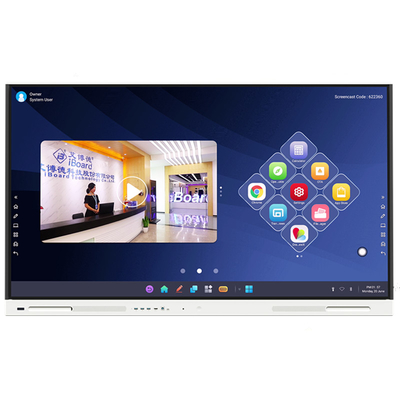

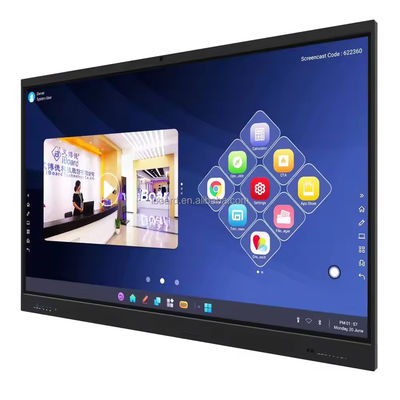

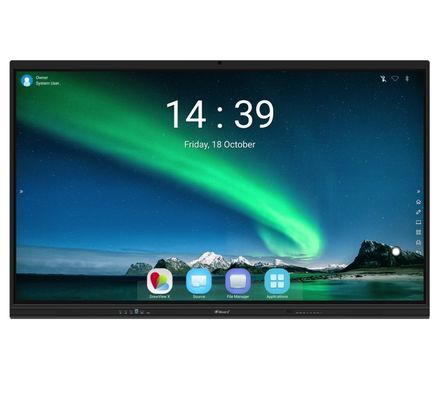

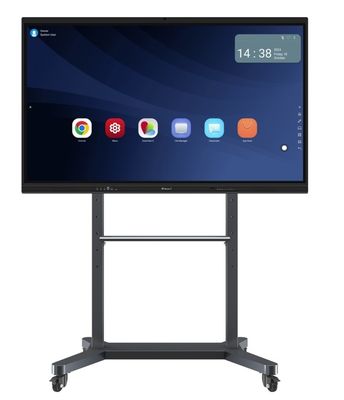

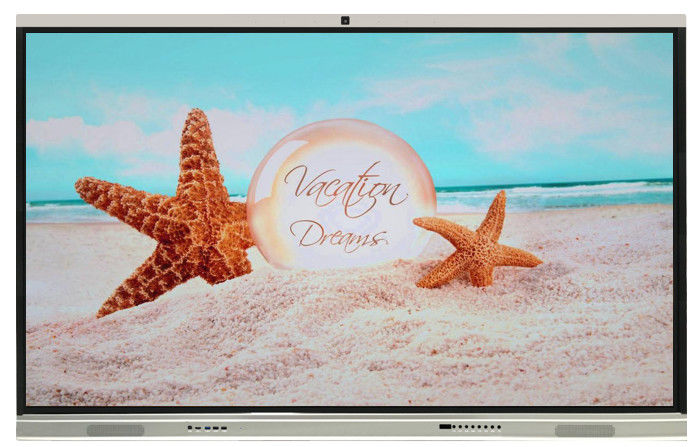

65 inch Interactive Flat Panel 75 86 98 Inch 4K Multi Touch screens
Description of Multi touch screen monitors
Interactive Touch Solutions for School Classroom, office, conference presentation, Trainning, annotation ect.
Built in Android 11.0(2+16G/ 4+32G/ 8G+64G for choose), come with OPS slot for windows system. Camera& mic optional, different color for option.
We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one. With various experience on making OEM/ODM interactive flat panels and interactive whiteboard, products sold to more than 80 countires in the world.
We have Own developed Infrared technology and whiteboard software for free;
SKD support;
Customized service for UI/ logo...
Easy for after-sales service;
Good quality control;
Firmware OTA upgrades for lifetime.
Specifecation of Interactive Touch Screen Monitor
| Model | TE-YL-65 | TE-YL-75 | TE-YL-86 (Even 98") | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ | |
| Contrast | 1200:1 or higher | 1200:1 or higher | 1200:1 or higher | |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ | |||
|
Android Specification |
Android 11.0 | |||
| Ram: 2G/4G/8G | ||||
| Storage: 16G/32G/64G | ||||
| I/O Ports | Please contact us to know more detail specification | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,...etc | |||
| Built in camera | 13 Mega Pixels (Optional) | |||
| Built in Microphone | 4 /6/8 array microphones (Optional) | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
|
Touch Parameter |
Touch Technology | Infared Touch | ||
| Touch Points | 20 touch points for both android & windows | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <2mm | |||
| Response Time | 4~8ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB(full speed) | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||
Remark: For more details of the specification , please contact us to know more detials.
