| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard |
| Certification: | FCC, CE, IC, RoHS |
| Model Number: | IB-ZT |
| Minimum Order Quantity: | 1 set |
| Price: | USD300-USD480 |
| Packaging Details: | Carton or wooden packaging, oem available |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000/month |
| Model: | IB-ZT | Aspect Radio: | 16:9 |
|---|---|---|---|
| Technology: | Infrared | Project Area: | 1280*2038mm |
| Resolution: | 32768*32768 | Support: | Different System |
| Touch Accuracy: | Less Than 2mm | Certificates: | CE/FCC/RoHS |
| High Light: | Meeting RoHS Smart TV Whiteboard,Classroom Infrared Interactive Whiteboard RoHS |
||

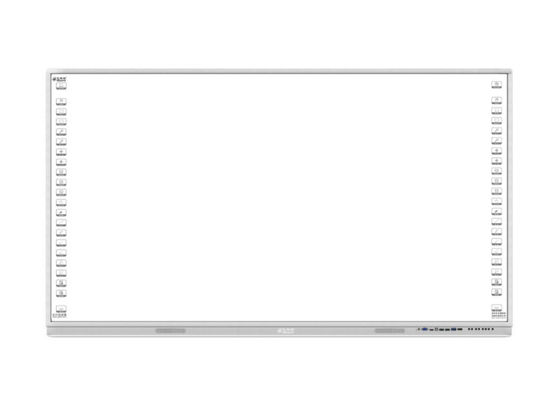

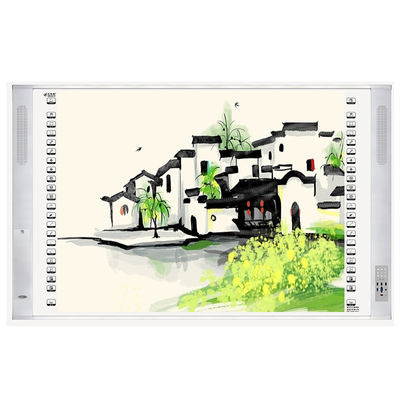

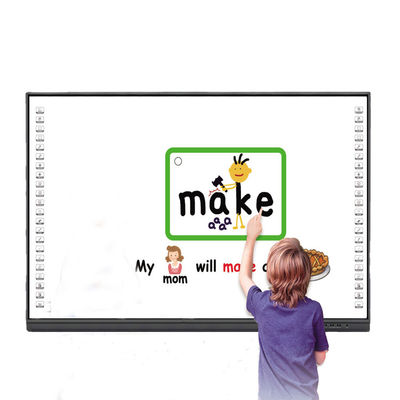

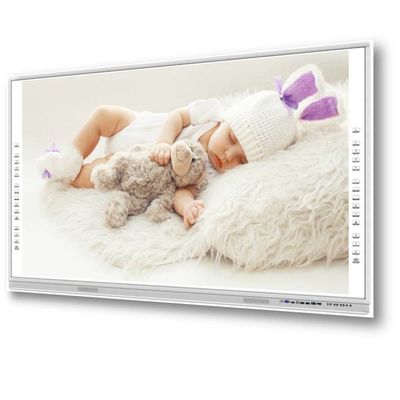

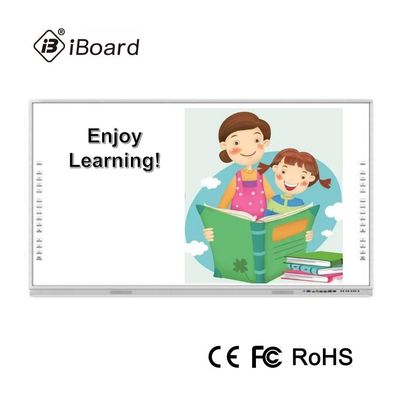

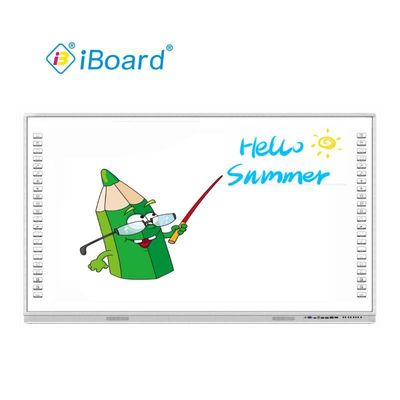

Infrared Interactive Whiteboard All In One smart board for Education
Interactive display for training, writing annotation, camera display, connecting to an external PC, playing multimedia audio and video.
Ultra Slim Frame, with the newe ultra-slim frame design and modern styling frame width is only 2.04cm, maximising the area used for touch input and displaying vibrant content.
High-speed multi-point interactive touch technology supporting up to 20 touch points. Using the best Infrared touch sensors, interactions are smooth and fast.
OPS PC module compliant solt support the Intel OPS(Open Pluggable Specification) standard allowing users to add PC level functionality with ease. (It is optional for customers, need extra cost.)
| SPECIFICATION of Multi-touch Whiteboard | ||
| Mdoel | ZT-98 | ZT-108 |
| Total Diagonal Size | 98.5 inch | 107 inch |
| Active Diagonal Size | 95.5 inch | 104.1 inch |
| Projection Diagonal Size | 92inch | 100.6 inch |
| Projection Size (mm) | 2038*1146 | 2227*1253 |
| Touch Active Size (mm) | 2142*1152 | 2331*1259 |
| Product Total Area Size (mm) | 2179*1129 | 2368*1336 |
| Aspect Ratio | 16:9 | 16:9 |
|
Touch Module Parameters |
Techonology: Infared Touch | |
| Cursor Speed: 200 dot/s | ||
| Touch Resolution: 32768*32768 | ||
| Writing Mode: Finger or any other opaque object | ||
| Touch Point: 10 points | ||
| Accuracy: 2 mm | ||
| Response Time: 5ms | ||
| Connection : USB2.0 , USB3.0 | ||
| Supported OS systems: Windows/Android/Linux /Mac | ||
|
Android Specification
|
Andriod 6.0 | |
| CPU: QuadCore ARM A53 | ||
| DDR3 - 1G | ||
|
Input Ports |
HDMI-In x2 (support up to 1920*1200) | |
| USB x6 | ||
| Touch USBx2 | ||
| OPS Slotx1 | ||
| RJ45x1 | ||
| MIC In x1 | ||
| WIFI Antenna x1 | ||
|
Output Ports |
HDMI x1((support up to 1920*1080p) | |
| RS232 x1 | ||
| AUDIO OUTx1 | ||
| Speakers | 15W x2 | |
| Indicator Lights | Device Indicator light x1; Built-in OPS indicator light x1 | |
| Input Voltage | AC(90～240)V-50/60HZ | |
| Power | Power Standby:<1W | |
| Rated Power:<190W | ||
| working temperature | 0°C～40°C | |
|
Accessories |
Power Cord 3 Meters x 1 | |
| HDMI Cable 5 Meters x 1 | ||
| Touch USB Cable 1.5 Meters x 1 | ||
| RS232 Cable 5 Meters x 1 | ||
| Installation Guide x 1 | ||
| Styplus Pen x 3 | ||
| Pointer x 1(Optional) | ||
| Whiteboard Software x 1 | ||
Certification:
Packing and delivery:
Exhibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 15 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
