Capacitive touch Commercial Display Touch Kiosk Interactive Digital Signage For Business display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | iBoard/ support OEM / ODM |
| Certification: | CCC, CE, RoHs, FCC, ISO |
| Model Number: | 43/49/55/65 inch |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | USD480-1500 per piece |
| Packaging Details: | Carton Package |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs per month |
|
Detail Information |
|||
| Aspect Ratio: | 16:9(W:H) | Resolution:: | 1920x1080(FHD) Or 3840x2160 (UHD) |
|---|---|---|---|
| Picture Format:: | JPEG/BMP/GIF/PNG, ETC | Color:: | Black/ Grey/ Silver/ White... |
| Material:: | Aluminum Ally Frame + Toughened Glass Panel | Service Hours:: | 50000 Hours(continuous) |
| Video Format:: | MP4/AVI/DIVA/XVI/VOB/DAT/MPG/RM/RMVB/MOV/HDMOV/ | Music Format:: | MP3/MWA/OGG/AAC/AC/DTS/FLAC/APE |
| Highlight: | 6 Points LED Kiosk Display Interactive,Business Interactive Digital Signage CE |
||
Product Description

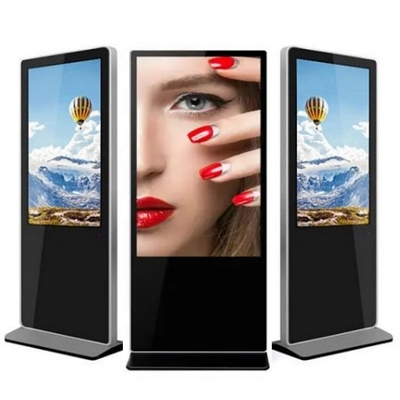

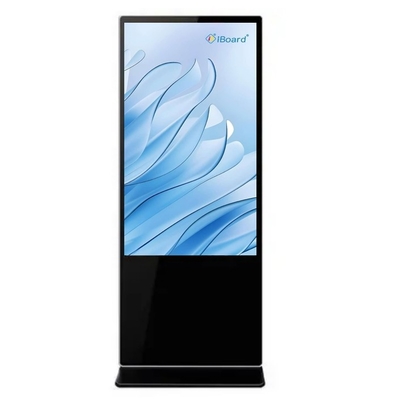

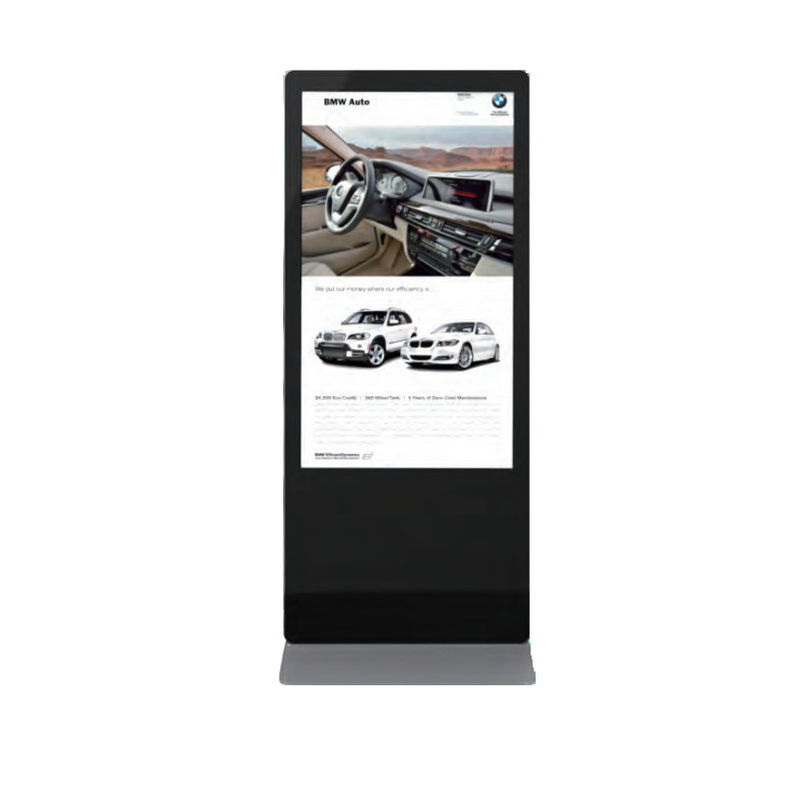

Touch Screen Kiosk Commercial displays For Business
Support OEM service for the commercial display, we have touch tables, kiosk, floor stand display, wall mount LED display...
Size from 43 inch up to 65 inch, bigger for 75/86/98 inch, support canpacitive 10 touch points, with different solutions for your option.
Support OEM service, we will made it according to your request.
Specification:
| Mainboard Specification | ||
|
Android System (Windows system optional) |
Solution | RK3288/ 3588/3576... |
| RAM | 2/4/8GG.. | |
| Internal Memory | 16/32/64GB | |
| Operating System | Android | |
| Power Supply | ||
| Input Voltage | AC 100-240V 50/60HZ | |
| Rated Power | <120W | |
| Standby Power | <1W | |
| Power of Speaker | 2X5w 8Ω | |
| Case/Cover Color | ||
| Front Frame | Extruded silver case+tempered glass | |
| Back Cover | Quality cold-rolled board | |
| LOGO | Optional | |
| Accessories | ||
| Power Calble | 1.5M * 1 1.5m international 3-pin plug*1 |
|
| Instruction | X1 | |
| Warranty Card/Verification | X1 | |
| Key | X1 | |
| Touch Specfication | ||
| Touch Point | 10 | |
| Surface | 4mm tempered glass | |
| Interpolation Resolution | 32768×32768 | |
| Response Time | ≤5ms | |
| Touch Accuracy | ±2mm on more than 90% area | |
| Touch Style | Finger, touch pen and other untransparent objects | |
| Port | USB2.0 | |
| Flash Multi-touch | Support TUIO protocol | |
| Min. touch Diameter | Effictive touch area≥3mm | |
Certification:
Exhibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 12 years. From material purchasing to product delivery, we have own professional
staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
