| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard |
| Certification: | FCC, CE, IC, RoHS |
| Model Number: | LE |
| Minimum Order Quantity: | 1 set |
| Price: | USD30-USD350 |
| Packaging Details: | Carton or wooden packaging, oem available |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000/month |
| Type: | Infrared | Touch Resolution: | 32767*32767 |
|---|---|---|---|
| Response Time: | 8ms | Aspect Ratio: | 16:9 |
| Function: | Multi Touch | Touch Input: | Finger Or Any Opaque Objects |
| Usage: | Use For Any Touch Screen Monitor | Color: | Black |
| High Light: | Touch Screen Panel Conversion Overlay Frame,IBoard Multi Touch Screen Panel |
||

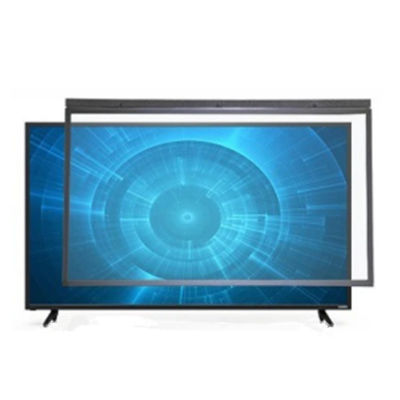

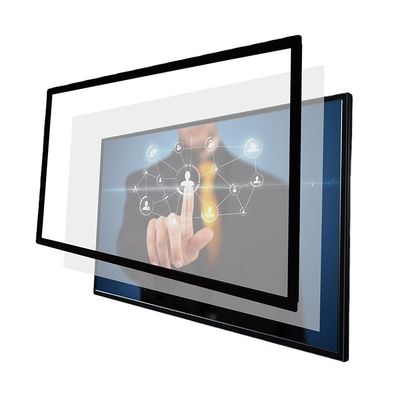

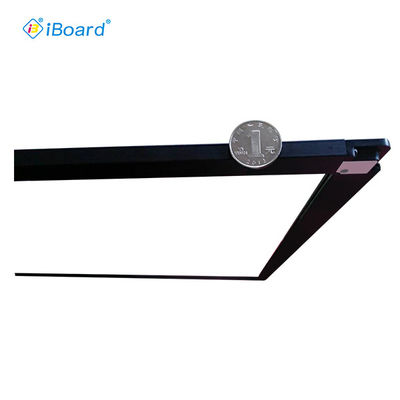

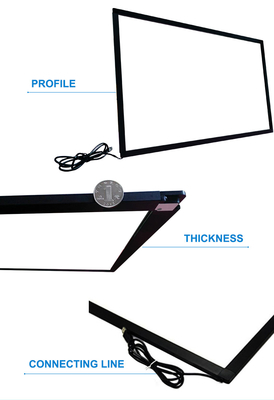

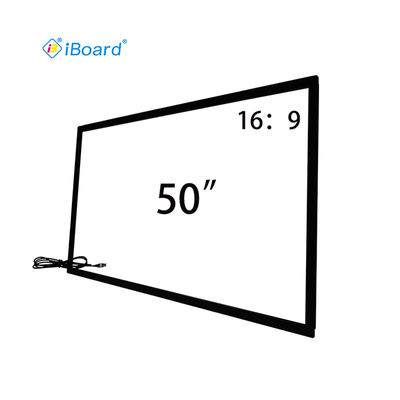

Infrared Multi Touch Frame For Touch Screen Monitor
The touch frame is widely used in advertising display, interactive LED display, video wall, inquiry machine, ATM machine, etc., which need to be used in touch solutions.
Any size customization from 19 inch to 200 inch
Fast and smooth writing experience
Support high-precision multi-touch
Super anti-glare(full angle), low radiation
Support multiple operating systems, drive-free, plug and play
Specification:
| Name | Infrared Touch Frame |
| Touch Technology | Infrared touch technology |
| Touch points | 1/2/6/10/20 touch points |
| Touch input method | Finger or any other opaque objects |
| Touch interpolation | 32767*32767 |
| Respond time | 8ms |
| Touch Accuracy | ±2mm(over 90% Area) |
| Available size for touch | ⌀ 5mm |
| Supply voltage | DC+5V±10% |
| Supporting system | Windows /MAC OS/LINUX/Android |
Application:
Certification:
Packing and delivery:
Exibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 12 years. From material purchasing to product delivery, we have own professional
staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
