| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard |
| Certification: | FCC, CE, IC, RoHS |
| Model Number: | IB-ZT |
| Minimum Order Quantity: | 1 set |
| Price: | USD300-USD500 |
| Packaging Details: | Carton or wooden packaging, oem available |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000/month |
| Model: | IB-ZT | Aspect Radio: | 16:9 |
|---|---|---|---|
| Technology: | Infrared | Project Area: | 1280*2038mm |
| Resolution: | 32768*32768 | Support: | Different System |
| Touch Accuracy: | Less Than 2mm | Certificates: | CE/FCC/RoHS |
| High Light: | Rohs Smar All In One Infrared Interactive Whiteboard,Rohs Smart TV Whiteboard |
||

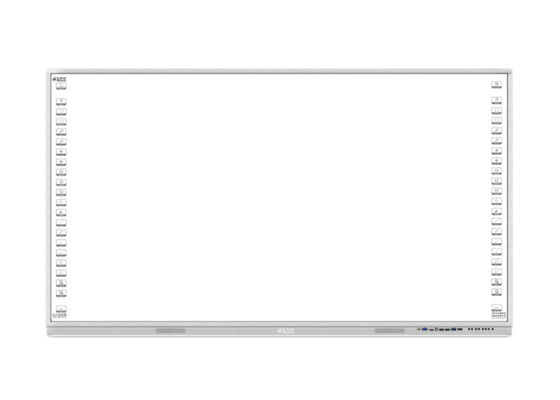

Infrared Interactive Whiteboard All In One Smart Board for Education

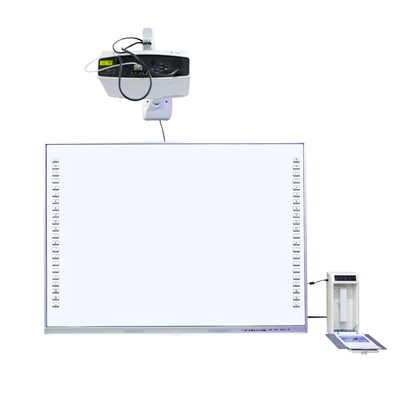

Multimedia all-in-one machine is composed of interactive infrared whiteboards, micro-industrial small computers, surround sound speakers, central control, control panels and wireless microphones (optional). The appearance adopts pure aluminum alloy silver sandblasting design. The multimedia all-in-one machine adopts integrated design and is easy to be installed. The whole machine only needs external power cable and projector signal output line without adding a third wire. The computer completely adopts built-in design. The product looks beautiful and its functions can meet the needs of users.
| SPECIFICATION of Multi-touch Whiteboard | ||
| Mdoel | ZT-98 | ZT-108 |
| Total Diagonal Size | 98.5 inch | 107 inch |
| Active Diagonal Size | 95.5 inch | 104.1 inch |
| Projection Diagonal Size | 92inch | 100.6 inch |
| Projection Size (mm) | 2038*1146 | 2227*1253 |
| Touch Active Size (mm) | 2142*1152 | 2331*1259 |
| Product Total Area Size (mm) | 2179*1129 | 2368*1336 |
| Aspect Ratio | 16:9 | 16:9 |
|
Touch Module Parameters |
Techonology: Infared Touch | |
| Cursor Speed: 200 dot/s | ||
| Touch Resolution: 32768*32768 | ||
| Writing Mode: Finger or any other opaque object | ||
| Touch Point: 10 points | ||
| Accuracy: 2 mm | ||
| Response Time: 5ms | ||
| Connection : USB2.0 , USB3.0 | ||
| Supported OS systems: Windows/Android/Linux /Mac | ||
|
Android Specification
|
Andriod 6.0 | |
| CPU: QuadCore ARM A53 | ||
| DDR3 - 1G | ||
|

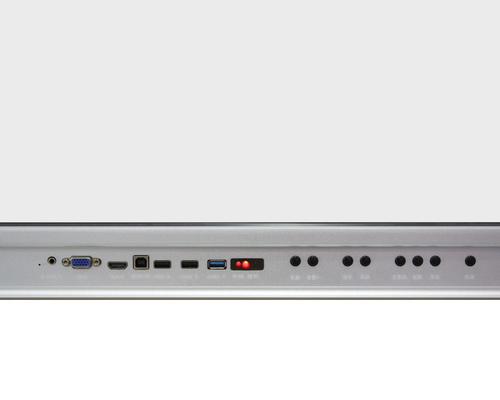

Input Ports |
HDMI-In x2 (support up to 1920*1200) | |
| USB x6 | ||
| Touch USBx2 | ||
| OPS Slotx1 | ||
| RJ45x1 | ||
| MIC In x1 | ||
| WIFI Antenna x1 | ||
|
Output Ports |
HDMI x1((support up to 1920*1080p) | |
| RS232 x1 | ||
| AUDIO OUTx1 | ||
| Speakers | 15W x2 | |
| Indicator Lights | Device Indicator light x1; Built-in OPS indicator light x1 | |
| Input Voltage | AC(90～240)V-50/60HZ | |
| Power | Power Standby:<1W | |
| Rated Power:<190W | ||
| working temperature | 0°C～40°C | |
|
Accessories |
Power Cord 3 Meters x 1 | |
| HDMI Cable 5 Meters x 1 | ||
| Touch USB Cable 1.5 Meters x 1 | ||
| RS232 Cable 5 Meters x 1 | ||
| Installation Guide x 1 | ||
| Styplus Pen x 3 | ||
| Pointer x 1(Optional) | ||
| Whiteboard Software x 1 | ||
Product Advantages:
As a new multimedia interactive teaching device, the multimedia all-in-one interactive whiteboard integrates the functions of interactive whiteboard, projector,amplifier, speaker, computer, visualizer, central control panel, microphone and other multimedia equipment to meet the demands of modern teaching applications, and solve the problems that different multi-media equipments in the classroom are of dispersion, messy connections, cumbersome operations, poor equipment coordination and poor compatibility. It is ideal interactive multi-media solution for smart classroom.
Application:
Certification:
Packing and delivery:
Exibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 12 years. From material purchasing to product delivery, we have own professional
staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 12 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
