| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard |
| Certification: | FCC, CE, IC, RoHS |
| Model Number: | IB-55 |
| Minimum Order Quantity: | 1 set |
| Price: | USD800-USD850 |
| Packaging Details: | 190X78X8.86 cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000/month |
| Application: | Advertising | Input Voltage: | 16W |
|---|---|---|---|
| Resolution: | 1920*1080 | Glass: | 4mm Tempered Glass |
| Touch Points: | 10 Points | Reponse: | 15ms |
| Screen Size: | 1900*787mm | Touch Resolution: | 32767*32767 |
| High Light: | Multi Touch Digital Display Kiosk Interactive,10 Points Touch Screen Kiosk |
||
LED Touch Screen Led For Advertising
|
Display Parameter |
Screen size | 43inch | 49inch | 55inch | 65inch |
| Resolution | 1920*1080P | ||||
| Aspect Ratio | 16:9 | ||||
| LCD panel | A type LCD | ||||
| View Angle | 178° | ||||
|
|
Touch panel | Support infrared technology 10 touch points and more(capacitive technology optional) | |||
| Output Resolution | 32767*32767 | ||||
| Scanning speed | 50scans/s | ||||
| Life Time | Single touch more than 60 million times | ||||
| Touch diameter | 5mm | ||||
| Response Time | 10ms | ||||
|
Surface Parameters |
Aluminium alloy frame+tempered glass | ||||
|
|
System | Support windows7/8/10 system | |||
| CPU | I3 | ||||
| Motherboard chipset | IntelM76 | ||||
| Ram | 4G | ||||
| Display | Integrated Intel HD Graphics graphics display core | ||||
| Storage | 120G/SSD/HDD | ||||
| Ethernet | 100M/1000M Adaptive network card | ||||
| External port | HDMI*1 / | ||||
| USB2.0*2/3.0*2 | |||||
| 3.5MM audio output*1 /MIC*1 | |||||
| DC power port, 2.5*5.5MM | |||||
| VGA*1 | |||||
|
Internal interface |
Usb*4,Dupont 2.54 | ||||
| Com*4 | |||||
| Sata*1 | |||||
| Built-in audio 2x5W | |||||
| wireless module supports 802.11b/g/n wireless protocol | |||||
| Power consumption | Max.20W, boot 15W, standby 0.5W | ||||
| Main Specification | Base | Silver, hardware base | |||
| Outlook Color | Black and silver | ||||
| Power amplifier system | 2*5w | ||||
| Equipment power | 90W | 110W | 130W | 160W | |
| Size | 177.80*635*50 | 1873.80*718*50 | 1903.82*796*50 | 2036.29*935*79.6 |
|

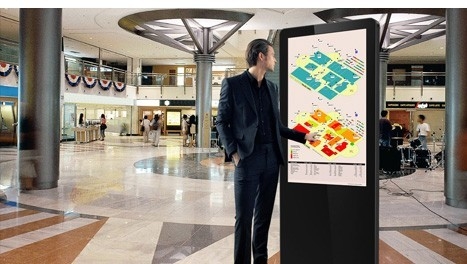

Application:
Certification:
Packing and delivery:
Exibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 12 years. From material purchasing to product delivery, we have own professional
staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 12 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
