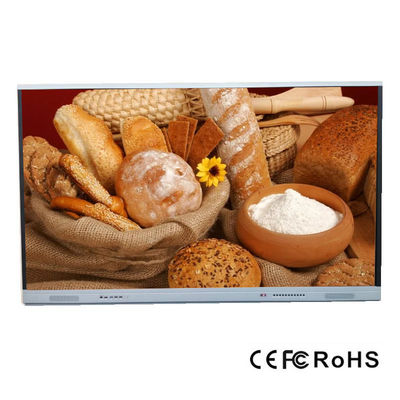

Android 11 75 Inch Interactive Flat Panel Multi Touch LED Screen Monitor 4K
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-QS/XP/YL-75 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD1200 - USD1800/unit |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Brand Name: | IBoard Or OEM | Product Name: | 75'' Infrared Interactive Flat Panel |
|---|---|---|---|
| Model: | TE-QS/XP/YL-75 | Size: | 75 Inch |
| Color: | Black | Material: | Aluminium Frame |
| Screen Type: | LED | Display Ratio: | 16:9 |
| Contrast: | 1200:1 | Resolution: | 3840 X 2160 |
| View Angle: | 178° | Brightness: | 350cd/m² |
| System: | Android 11 | RAM: | 2G |
| ROM: | 16G | Touch Technology: | Infrared Touch |
| Touch Ways: | Finger Or Any Opaque Objects | Touch Points: | 10 Points Or More |
| Support OPS: | One OPS Slot (Optional) | Lifetime: | 50000 Hrs |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |

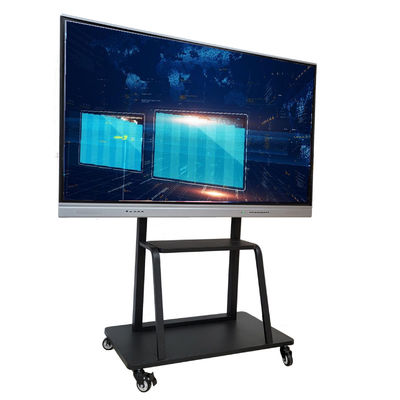

| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | Android 11 Interactive Flat Panel,75'' Multi Touch LED Screen Monitor 4K,Aluminium Frame 4K Interactive Flat Panel |
||
Product Description
iBoard Factory Android 11 75 Inch Interactive Smart Multi Touch LED Screen Monitor 4K Flat Panel Display Display
TE-QS/XP/YL-75
| DISPLAY | |||
| Screen Type | LED | Display Ratio | 16:9 |
| Resolution | 3840(H) x 2160(V) | Display Area | 1895.04*1065.96mm(85.6 inch) |
| Brightness | 350 cd/m3 | Color Depth | 10bit(R), 1.07Billon colors |
| Contrast | 1200:1 | Life Time | 50,000 Hrs |
| Response Time | 6.5 ms | ||
| ANDROID SYSTEM | |||
| Android Version | Android 11.0 | CPU |
Dual Cores ARM Cortex-A73 Dual Cores ARM Cortex-A53 |
| DISPLAY CONNECTION PORTS | |||
| Input Ports (Front) |
HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC) USB-C(optional) |
Output Ports(back) |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
| Input Ports (Back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1 |
||
| Sensing Type | Infrared Touch | Writing Style | Finger; Stylus,any opaque object |
| Positioning resolution | 32767 x 32767 | Communication Mode | Full-speed USB (Plug and Play) |
| Scanning Speed | 4ms | Surface Glass | 4mm tempered Glass |
| Response size | ≥Φ3mm | OS support | Android, Windows, Linux, Mac, Chrome |
| INTERNET | |||
| Ethernet | 802.3 10/100 | Wifi |
IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Or IEEE802.11an 2.4GHz |
| Bluetooth | 4.0 | ||
| ACCESSORIES |
| Touch pen x 2 |
| Touch USB (A-B 1.5M) x 1 |
| HDMI cable (2M) x 1 |
| Power cable (1.8M) x 1 |
| Remote controller x 1 |

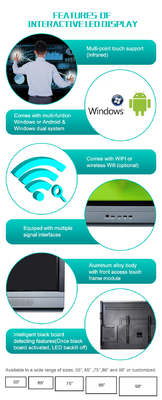

Newly designed model,good outlooking and wide view angle,bring a different new visual experience for presentation.

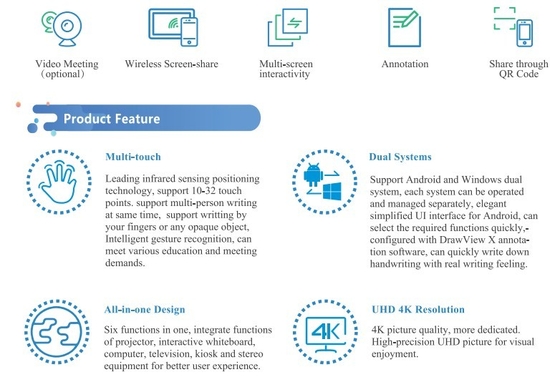

Fast and high accuracy infrared Multi-touch,smooth writing and convenient finger-guesture erasing. Built-in HD remote-distance meeting system, support up to 4 remote meeting devices to join meeting Support scan QR code of the whiteboard software to share the meeting records by mobile devices.
Six functions in one, integrate functions of projector, interactive board, computer, television, koisk and audio but better user experience.
It is an ideal solution for business presentation or schools.
ABOUT US
--Company
Shenzhen iBoard Technology Co., Ltd founded in 2007. The company is located in Shenzhen, Guangdong Province, China. It has 14 years of experience in the education informationization industry. We are a smart education solution provider and operation service provider, specializing in R&D, production and sales of smart education cloud platform, interactive teaching software, interactive whiteboard software; also sales interactive whiteboard, laser projector, all-in-one multimedia device, interactive LED display, advertising display and digital signage etc.
--Certificates
Our products meet the certification requirements of most of countries in the world and have complete certificates.
--Factory
Our factory is 23000㎡, can meet the needs of large orders. We have rich experience in OEM/ODM service for overseas customers. And our products are sold to more than 80 countries. Strict production process ensures that products are carefully debugged when they leave the factory. To ensure the perfect delivery to the customer.
