DLED 98 Inch LCD Interactive Display 4G+32G Storage 50000hrs Lifetime
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | YL5s-98 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD2300 - USD3500/unit |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Brand Name: | IBoard Or OEM | Color: | Black |
|---|---|---|---|
| Resolution: | 3840 X 2160 | Contrast: | 1200:1 |
| Brightness: | 350cd/m² | Touch Ways: | Finger Or Any Opaque Objects |
| Touch Points: | 10 Points Or More | Support OPS: | One OPS Slot (Optional) |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | 3G DDR4 LED Interactive Display,EMMC LED Interactive Display 32G,Aluminium Frame LED Interactive Flat Panel |
||
Product Description

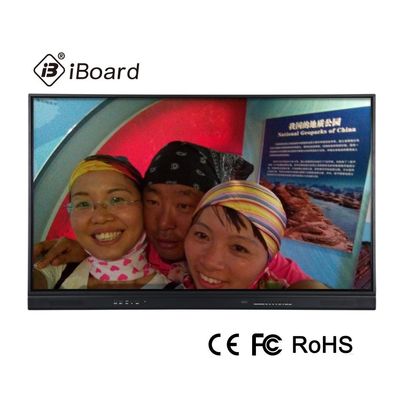

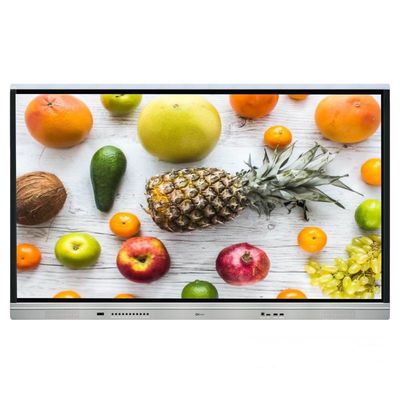

98'' IR Interactive Flat Panel Display
| Model Name | TE-YL5S-98 |
| Type of Screen | DLED |
| Resolution | 3840*2160 |
| Brightness | 350cd/㎡ |
| Contrast | 1200:1 |
| Display Area | 2158.8*1214.4mm(97.52 inch) |
| Display Ratio | 16:9 |
| View Angle | 178° |
| Color Depth | 10bit,1.07 Billion Colors |
| Video System | PAL,NTSC,SECAM |
| Sound System | D/K, B/G, I,M |
| CPU | 4 x ARM Cortex-A55 |
| Basic Frequency | Default 1.2G |
| Android | 9.0 |
| Flash | 32G EMMC |
| RAM | 3G DDR4 |
| Computer VGA Inputs Support Resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| First Touch Response Time | <19ms |
| Input Ports |
BACK:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,2*USB2.0,1*TOUCH-USB,1*RS232,1*TF CARD(MAX 32G),1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth(Support 4.0),1*OPS SLOT(up to3840*2160/60Hz) FRONT:1*HDMI(Max SPPORT 3840*2160/60Hz),1*TOUCH USB,3*USB(Support Android & OPS) |
| Output Ports | Back OUTPUT:1*COXIAL,1*EARPHONE |
Certificates
Our products meet the certification requirements of most of countries in the world and have complete certificates.
Exhibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 15 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
