TFT LED Interactive Digital Panel Display 178 Degree View Angle Infrared Touch

Basic Information
Place of Origin: CHINA
Brand Name: iBoard
Certification: CE/FCC/ROHS
Model Number: XP1-65
Minimum Order Quantity: 1 Piece
Price: USD700 - USD1800/unit
Packaging Details: Carton or wooden packaging, oem available
Delivery Time: 10-25 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 units/month
Brand Name: IBoard Or OEM Color: Black And Silver
Material: Aluminium Frame Screen Type: LED
Display Ratio: 16:9 Resolution: 3840 X 2160
Brightness: ≥350cd/m2 Touch Points: 10 Points Or More
High Light:

65in Interactive Digital Whiteboard

,

350cd/m2 Interactive Digital Whiteboard

,

Bluetooth 4.2 Interactive Touch Panel

Interactive Flat Panel 65 inch IR Touch Wall Mounted 4K Monitor All-in-One Android PC Aluminium Frame Black and Silver

Specifications

DISPLAY
Screen Type TFT LED Display Ratio 16:9
Resolution 3840(H) x 2160(V) Response Time 6.5 ms
Brightness 350 cd/m3 Color Depth 10bit(R), 1.07Billon colors
Contrast 4000:1 Life Time 50,000 Hrs
ANDROID SYSTEM
Android Version Android 8.0 CPU

2*ARM Cortex-A73

2*ARM Cortex-A53
DISPLAY CONNECTION PORTS
Input Ports (Front)

HDMI 1.4*1;USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC)

USB-C(optional)

Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1

Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1


TOUCH SYSTEM
Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Response size ≥Φ3mm OS support Android, Windows, Linux, Mac, Chrome
INTERNET
Ethernet 802.3 10/100 Wifi

IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz

Or IEEE802.11an 2.4GHz

Bluetooth 4.2

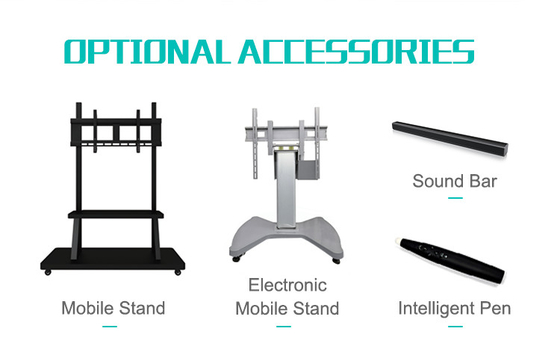

ACCESSORIES
Touch pen x 2
Touch USB (A-B 1.5M) x 1
HDMI cable(2M) x 1
Power cable(1.8M) x 1
Remote controller x 1

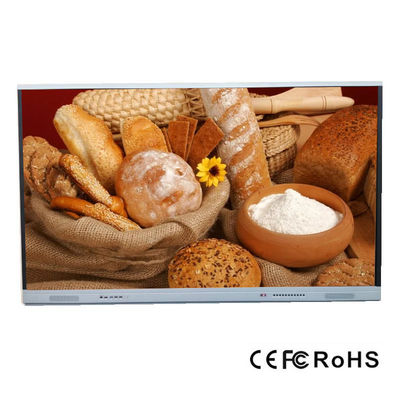

THE PRODUCT -- TE-XP1-65

TFT LED Interactive Digital Panel Display 178 Degree View Angle Infrared Touch 0TFT LED Interactive Digital Panel Display 178 Degree View Angle Infrared Touch 1TFT LED Interactive Digital Panel Display 178 Degree View Angle Infrared Touch 2TFT LED Interactive Digital Panel Display 178 Degree View Angle Infrared Touch 3TFT LED Interactive Digital Panel Display 178 Degree View Angle Infrared Touch 4TFT LED Interactive Digital Panel Display 178 Degree View Angle Infrared Touch 5

Certificates

Our products meet the certification requirements of most of countries in the world and have complete certificates.

TFT LED Interactive Digital Panel Display 178 Degree View Angle Infrared Touch 6

Exhibition:

TFT LED Interactive Digital Panel Display 178 Degree View Angle Infrared Touch 7





























































































FAQ:

1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 15 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
