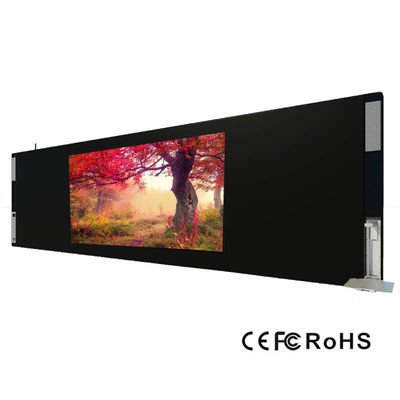

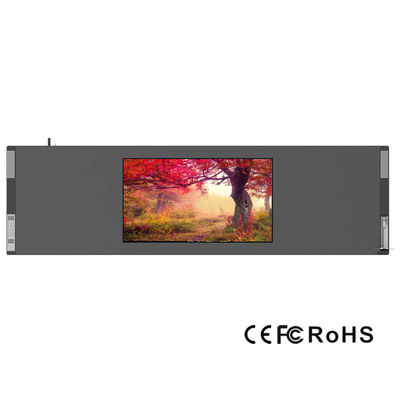

New 86 inch Nano Intelligent Blackboard with All In One Computer Interactive Whiteboard Smart TV Monitors Blackboard
Product Details
| LCD Type: | DLED | Physical Resolution Of LCD: | 3840*2160 |
|---|---|---|---|
| Brightness: | 350 Cd/㎡ | Contrast Ratio: | 4000:1 |
| Display Area: | 1895.04*1065.96mm(85.6 Inch) | Screen Scale: | 16:9 |
| Viewing Angle: | 178° | Video Format: | PAL、NTSC、SECAM |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight |
86'' Nano Intelligent Blackboard,450cd/m2 Intelligent Blackboard,NTSC Android LED Blackboard |
||
Product Description
Inteligent Intaractive Blackboard
Specifications of Nano Blackboard:
| Products name | TE-GR-86 |
| LCD type | DLED |
| Physical resolution of LCD | 3840*2160 |
| Brightness | 450 cd/㎡ |
| contrast ratio | 4000:1 |
| Display area | 1895.04*1065.96mm(85.6 inch) |
| Screen scale | 16:9 |
| viewing angle | 178° |
| Color | 10bit,10.7 |
| Video format | PAL,NTSC,SECAM |
| Sound System | D/K, B/G, I,M |
| Android system | 9.0 |
| Android system EMMC | 32G |
| Android system DDR3 | 3G |
| Computer VGA input support resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| Touch first response time | <15ms |
| Input port |
Front:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,1*USB 2.0,1*USB 3.0,1*TOUCH-USB,1*RS232,1*TF卡,1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth(support4.0),1*standardOPS(up to3840*2160/60Hz, bulid-in 10M/100M LAN) Front:1*HDMI(Max支持3840*2160/60Hz),1*TOUCH USB,3*复用USB |
| Output port | Post output:1*COXIAL,1*EARPHONE |
| Front button | 11KEY(POWER,SOURCE,MENU,VOL+,VOL-,REC,A.Blue,PC,ES,RATIO,HOME) |
| Rated voltage | AC(100-240)V～50/60HZ |
| Rated current | 3.5A |
| Working temperature | 0°C～40°C |
| Support touch points | 20 |
| Touch model | finger or capacitive pen |
| Positioning technology | Capacitance Technology |
| positioning accuracy | <2mm |
| Continuous response time | <8ms |
| Cursor speed | >240点/mm |
| Touch screen system communication port | USB |
| operating system | Support WINDOWS/LINUX/MAC /Android |
| Touch times | More than 60 million times in the same location |
| Accessories | Touch pen x 1 |
| USB(touch line1.5M) x 1 | |
| power cable(1.8M) x 1 | |
| Installation CD x 1 | |
| Remote control x 1 | |
| warranty card x 1 | |
| Bare metal size | 4200*1306.5*127.6mm |
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 12 years. From material purchasing to product delivery, we have own professional
staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 12 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
