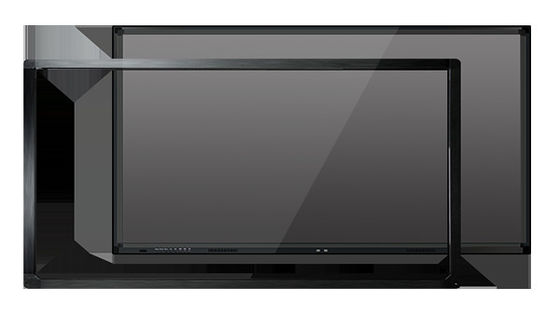

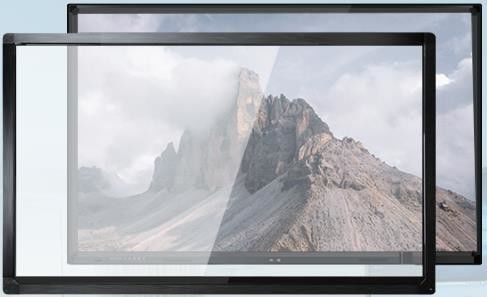

21-300 Inch 25ms Infrared Touch Frame Overlay USB Connection Custom Size

Basic Information
Place of Origin: China
Brand Name: iBoard
Certification: CE
Model Number: TE-LE
Minimum Order Quantity: 1pc
Price: 40-1500USD
Packaging Details: carton, PVC tub
Delivery Time: 5-15days
Payment Terms: T/T
Supply Ability: 20000pcs/month
Technology: Infrared Size: 21.5-120inch
Touch Points: 2-32points Response Object: Finger, Pen, Any Opaque Objects
Frame Material: Aluminium Interface: USB

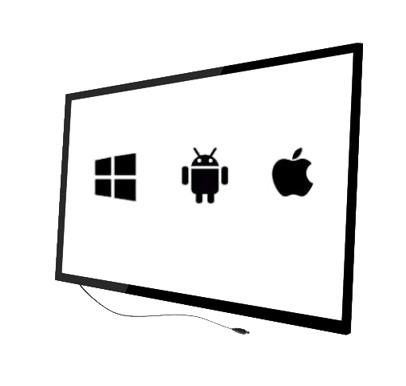

Installation: 3m Tape System Support: Windows, Linux, Android, Mac, Chrome
High Light:

25ms Infrared Touch Frame

,

3m Tape Infrared Touch Frame

,

Overlay USB Infrared Touch Screen

21-300inch infrared Touch Frame over lay for touch TV customize anysize



Product introduce

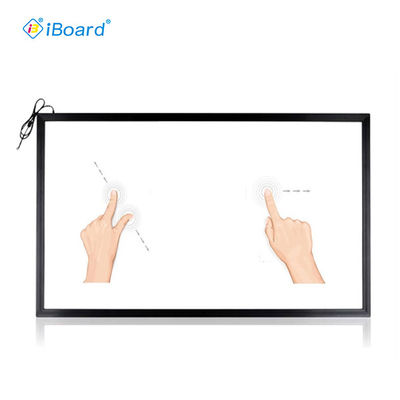

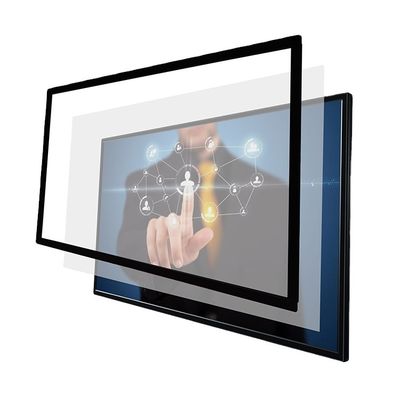

iBoard TE-LE series infrared touch frame overlay can customize sizes from 21.5'' to 300'', use iBoard 15th generation touch solution PCB, improved the touch points, speed, smoothness and others. can be widely used on any LED/LCD display.

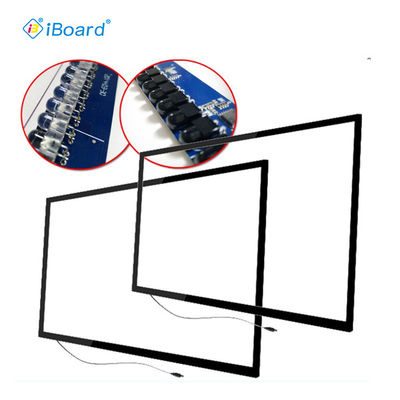

It is in use of stable and reliable infrared sensor positioning technology, and any opaque objects such as fingers can touch the screen to run writing performance. Exactly, touch TV is different from general one by adding a touch equipment, which can realize the touch function on the general TV, can work in control computers and various application areas of the software industry, and can be use for inquire about information widely,advertising display,command control ,media,teaching training ,banks,insurance companies,chain stores,entertainment,telecommunications,mobile communications,exhibitions,car sales,store,movie theaters,airports,television stations,museums,public community,the Exhibition Hall,real estate agency,sales office,senior hotels,offices,subways,travel agencies,government agencies,the armed forces,hospitals,electricity-energy industry etc., Provide more intuitive, vivid interactive platform for customer



Connection



iBoard touch screen connects with a general computer by a USB cable, the display output of computer can display on the panel by a VGA cable connect the computer and TV. After adjusting, we can transfer the touching, moving information switch of iBoard touch screen to the pointer moving and click information of mouse. So with the corresponding IBD_Drawview software or other drawing and application, all these contents that clicking, moving, writing and other information on the panel can be displayed at real-time on the TV panel.



Features

Specification

Technology

Infrared technology

Writing Stylus

Pen, finger, pointer and any other opaque objects

Positioning Accuracy

Typical accuracy< 2mm

Response Object Size

Ø3.0mm, recommended size:Ø5.0mm

Cursor Speed

180 d/s around

Resolution

32768(W) × 32768(D)

Respond Speed

First dot (click): 25ms

Continuous dots (write) : 8 ms

Lifetime of Touch Screen

Above 60,000,000 single-dot touch

Certification

CE,FCC,RoHs

PC Port

 USB 2.0



21-300 Inch 25ms Infrared Touch Frame Overlay USB Connection Custom Size 0

21-300 Inch 25ms Infrared Touch Frame Overlay USB Connection Custom Size 121-300 Inch 25ms Infrared Touch Frame Overlay USB Connection Custom Size 2
