Educational Equipment 65 Inch 350cd/M2 Android LED Interactive Whiteboard Smart Flat Panel
Product Details
| Brand Name: | IBoard Or OEM | Product Name: | 65'' Infrared Interactive Flat Panel |
|---|---|---|---|
| Model: | YL5s-65 | Size: | 65 Inch |
| Color: | Black | Material: | Aluminium Frame |
| Screen Type: | LED | Display Ratio: | 16:9 |
| Resolution: | 3840x2160 | View Angle: | 178° |
| Brightness: | 350cd/m2 | System: | Android 9 |
| RAM: | 3G | ROM: | 32G |
| Touch Technology: | Infrared Touch | Touch Ways: | Finger Or Any Opaque Objects |
| Touch Points: | 10 Points Or More | Support OPS: | One OPS Slot (Optional) |
| Lifetime: | 50000 Hrs | Aspect Radio: | 16:10, 16:9... |
| Interface: | USB, VGA, RS232, HDMI | Screen Size: | 65",75",86", 98" |
| Multi-Touch: | Up To 40 Points | Hotkeys: | Two Sides Hotkeys |
| Shipping Way: | Sea Shipping Air Freight Truck Freight | Touch Points: | 20 Points |
| Warranty: | 1 Year | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Andriod/Windows/Linux/Mac.etc. | Accuracy: | 2mm |

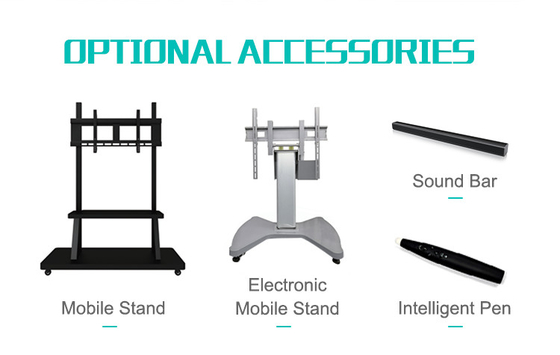

| Mobile Stand: | Optional | Colors: | Black Or OEM |
| Highlight |
350cd/m2 Android LED Interactive Whiteboard,OPS Slot Android LED Interactive Whiteboard,NTSC Touch Screen Interactive Display |
||
Product Description

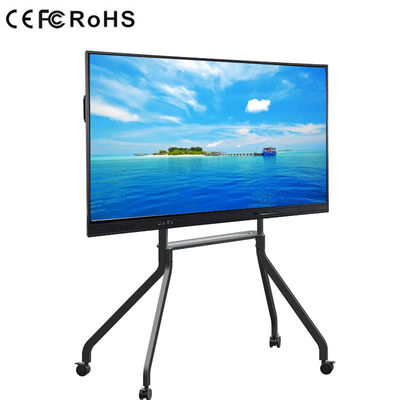

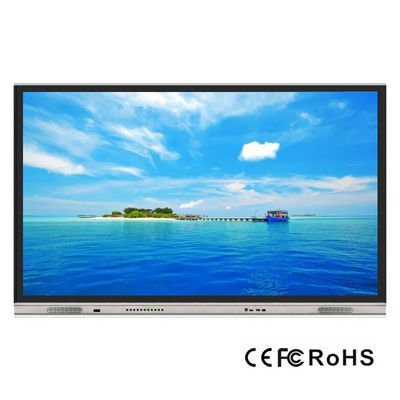

65'' IR Interactive Flat Panel Display
| Model Name | TE-YL5S-65 |
| Type of Screen | DLED |
| Resolution | 3840*2160 |
| Brightness | 350cd/㎡ |
| Contrast | 1200:1 |
| Display Area | 1428.5*803.5 mm(64.53 inch) |
| Display Ratio | 16:9 |
| View Angle | 178° |
| Color Depth | 10bit,1.07 Billion Colors |
| Video System | PAL,NTSC,SECAM |
| Sound System | D/K, B/G, I,M |
| CPU | 4 x ARM Cortex-A55 |
| Basic Frequency | Default 1.2G |
| Android | 9.0 |
| Flash | 32G EMMC |
| RAM | 3G DDR4 |
| Computer VGA Inputs Support Resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| First Touch Response Time | <19ms |
| Input Ports |
BACK:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,2*USB2.0,1*TOUCH-USB,1*RS232,1*TF CARD(MAX 32G),1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth(Support 4.0),1*OPS SLOT(up to3840*2160/60Hz) FRONT:1*HDMI(Max SPPORT 3840*2160/60Hz),1*TOUCH USB,3*USB(Support Android & OPS) |
| Output Ports | Back OUTPUT:1*COXIAL,1*EARPHONE |
Interactive display for training, writing annotation, camera display, connecting to an external PC, playing multimedia audio and video.
Ultra Slim Frame, with the newe ultra-slim frame design and modern styling frame width is only 2.04cm, maximising the area used for touch input and displaying vibrant content.
High-speed multi-point interactive touch technology supporting up to 20 touch points. Using the best Infrared touch sensors, interactions are smooth and fast.
OPS PC module compliant solt support the Intel OPS(Open Pluggable Specification) standard allowing users to add PC level functionality with ease. (It is optional for customers, need extra cost.)
ABOUT US
--Company
Shenzhen iBoard Technology Co., Ltd founded in 2007. The company is located in Shenzhen, Guangdong Province, China. It has 14 years of experience in the education informationization industry. We are a smart education solution provider and operation service provider, specializing in R&D, production and sales of smart education cloud platform, interactive teaching software, interactive whiteboard software; also sales interactive whiteboard, laser projector, all-in-one multimedia device, interactive LED display, advertising display and digital signage etc.
--Certificates
Our products meet the certification requirements of most of countries in the world and have complete certificates.
--Factory
Our factory is 23000㎡, can meet the needs of large orders. We have rich experience in OEM/ODM service for overseas customers. And our products are sold to more than 80 countries. Strict production process ensures that products are carefully debugged when they leave the factory. To ensure the perfect delivery to the customer.
