|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 Piece|
|Price:||USD900 - USD1800/unit|
|Packaging Details:||Carton or wooden packaging, oem available|
|Delivery Time:||10-30 Working Days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||20000 units/month|
|Brand Name:||IBoard Or OEM||Color:||Black|
|Material:||Aluminium Frame||Screen Type:||LED|
|Brightness:||350cd/m2||Touch Ways:||Finger Or Any Opaque Objects|
|Touch Points:||10 Points To 20 Points||Support OPS:||One OPS Slot (Optional)|

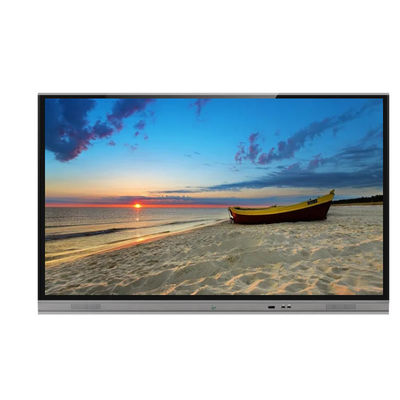

USB3.0 Infrared Interactive Flat Panel,
Infrared Interactive Flat Panel 75 Inch,
Interactive Digital Board 32G ROM
√ Dual System
√ Anti-glare reflection
√ Eye protection
√ Low radiation
√ Enviromental protection/ Battery saving
√ Multi optional connecting port
√ High accuracy ≤2mm
√ Multi touch (10/20 Touch points)
√ Gesture recognition
√ Support Windows/Linux/Mac/Chrome/Android
√ Built in Micophone/Camera ( Optional)
√ Support remote 4 meeting devices (Optional)
√ Support transcreen for 4 devices (Optional)
Specification of Smart Monitor
|Screen Type||LED||Display Ratio||16:9|
|Resolution||3840(H) x 2160(V)||Response Time||6.5 ms|
|Brightness||350 cd/m2||Color Depth||10bit(R), 1.07Billon colors|
|Contrast||1200:1||Life Time||50,000 Hrs|
|Android Version||Android 11.0||GPU||G52*8|
|DISPLAY CONNECTION PORTS|
|Input Ports (Front)||
HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC)
AV-out*1; HeadPhone*1; SPDIF*1;
|Input Ports (Back)||
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;
USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1
|Sensing Type||Infrared Touch||Writing Style||Finger; Stylus,any opaque object|
|Positioning resolution||32767 x 32767||Communication Mode||Full-speed USB (Plug and Play)|
|Scanning Speed||4ms||Surface Glass||4mm tempered Glass|
|Response size||≥Φ3mm||OS support||Android, Windows, Linux, Mac, Chrome|
|Built-in Camera||Support 2K or 4K|
IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz
Or IEEE802.11an 2.4GHz
|Touch pen x 2|
|Touch USB (A-B 1.5M) x 1|
|HDMI cable(2M) x 1|
|Power cable(1.8M) x 1|
|Remote controller x 1|
|Operation Temperature||0°C～40°C||Operation Humidity||10% - 90%|
|Storage Temperature||-10°C～560°C||Storage Humidity||10% - 90%|
Our products meet the certification requirements of most of countries in the world and have complete certificates.
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 15 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
