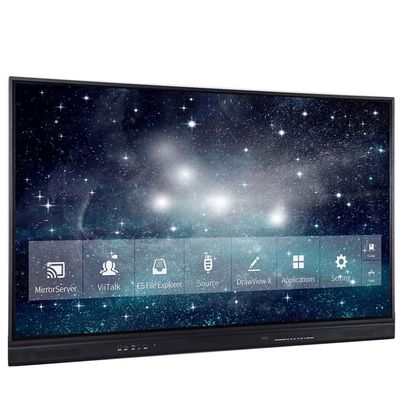

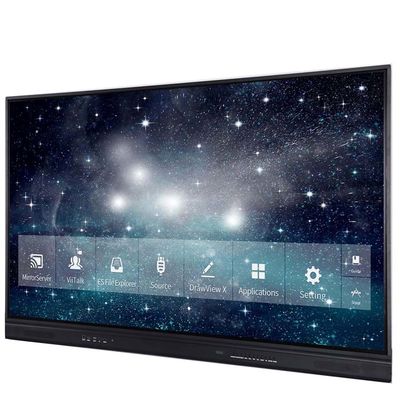

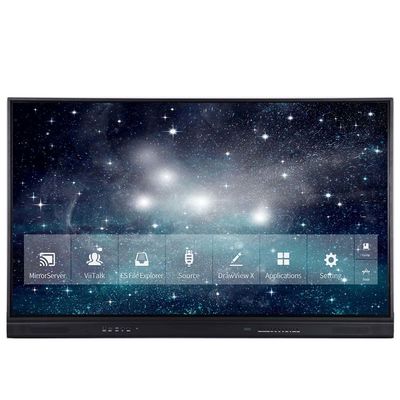

3840*2160 Interactive Flat Panel 98 100 105 Inch Multi Touch Writing Whiteboard
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-YL-98 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD3500-3700/PC |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Screen Type: | DLED Type | Brightness: | 350-450cd/m2 |
|---|---|---|---|
| Response Time: | 6.5ms | Video System: | PAL, NTSC, SECAM |
| Sound System: | D/K, B/G, I, M | Speaker: | 2*15W |
| Position Resolution: | 32767 X 32767 | Surface Glass: | 4mm Tempered Glass |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Multi-Touch: | Up To 40 Points | Hotkeys: | Two Sides Hotkeys |
| Shipping Way: | Sea Shipping Air Freight Truck Freight | Touch Points: | 20 Points |
| Warranty: | 1 Year | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Andriod/Windows/Linux/Mac.etc. | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | 450cd/m2 Interactive Flat Panel,3840*2160 Interactive Flat Panel,105in Multi Touch Writing Whiteboard |
||
Product Description
Interactive Flat Panel 3840*2160 UHD Display 98 100 105 Inch Multi Finger Touch Writing Whiteboard Andriod 9.0 Anti Blue
Features:
1, 3840*2160(4K) UHD panel, perfect display performance
2, Android 9.0 OS,latest Android version for touch monitors
3, Latest Infrared touch technology, 10points multi touch, high speed and smoothly
4, Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software
5, Touch support Chrome OS
6, with 3 multi use front USB port, not only work in Android and OPS, but also can pass through the external PC USB, take more convenience to teachers
7, with light sensitive sensor, protect the user’s eyes smartly
8, equipped with wall mount sets ,workable to be wall hanged or hanged on moving stand,much easier for use and installation
9, multi input annotation software, built-in handwriting recognition (Optional), much easier make note when teaching or having meeting
10, optional magnetic penholder, can stick the magnetic pen on the frame
11, 11 front buttons, the most numbers in the market now, much easier for users operate the machine
12, highest screen display area, black area of scree no more than 2mm
13, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine
14, optional front Type-C port, support both video play and USB function
15, bulit-in video conference software, support video call after connect to camera
16, bulit-in screen share software, support screen projection
| Model | TE-YL-98 |
| Display type | DLED |
| Resolution | 3840*2160 |
| Brightness | 350cd/㎡ |
| Contrast ratio | 1200:1 |
| Display area |
2158.8*1214.4mm(97.52 inch) |
| Panel ratio | 16:9 |
| View angle | 178° |
| Color | 10bit,1.07 billion color |
| Video format | PAL,NTSC,SECAM |
| Sound format | D/K, B/G, I,M |
| CPU | Quad core A55 |
| Main frequency | default 1.2G |
| Andriod version | 9.0 |
| Flash | 16G/32G EMMC |
| RAM | 2G/3 DDR4 |
| VGA input resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| First touch response time | <19ms |
| Input ports |
Back IO input:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,2*USB 2.0,1*TOUCH-USB,1*RS232,1*TF,1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth,1*OPS(up to3840*2160/60Hz, bulid-in 10M/100M LAN) Front IO input:1*HDMI(Max supporting 3840*2160/60Hz),1*TOUCH USB,3*USB |
| Output port | Back IO OUTPUT:1*COXIAL,1*EARPHONE |
| Front keys | 11KEY(POWER,SOURCE,MENU,VOL+,VOL-,REC,A.BLUE,PC,ES,RATIO,HOME) |
| Short cut | NO |
| Rated voltage | AC(100-240)V～50/60HZ |
| Rated current | 2.5A(including OPS) |
| Working temperature | 0°C～45°C |
| Touch points | Single/Two/Four/Six/Ten points |
| Touching mode | Fingers or pen |
| Location technology | Ifrared |
| Location accuracy | <2mm |
| Location resolution | 4096*4096/16384*16384/32768*32768 |
| Continuous response time | <8ms |
| Cursor speed | >180 dot/second |
| Communication port of touch system | USB |
| Operating system | WINDOWS/LINUX/MAC /Android |
| Effective object size | ≥Φ3mm |
| Touch times | More than 60,000,000 times at one position |
| Accessory | Touch pens x 2 |
| HDMI cable(2M) x 1 | |
| Touch USB cable 1.5M x 1 | |
| Power supply cord(1.8M) x 1 | |
| Installation DVD x 1 | |
| Remote controller x 1 | |
| Warranty card x 1 | |
| Product size |
2215.6*1338.5x89.7mm |
