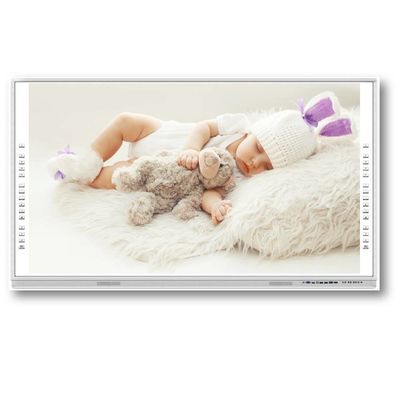

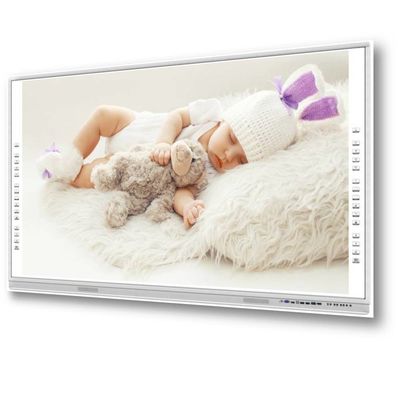

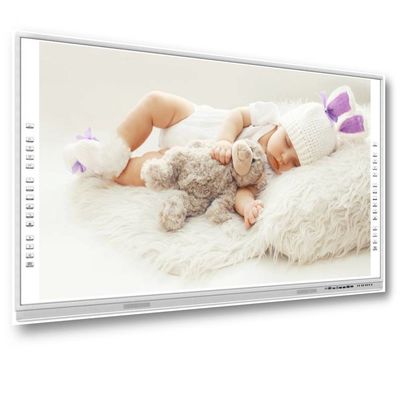

All In One Interactive Whiteboard 92 100 Inch Infrared 10 Points
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | IB-92Q6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD455-465/PC |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Speakers: | 2*15W | Touch Technology: | Infrared Touch |
|---|---|---|---|
| Short Keys: | 14 Keys On Left And Right Side | Core Material: | Polyester Material |
| Backsheet Material: | Galvanized Steel | Project Size: | 2038*1146mm |
| Touch Active Size: | 2142*1152mm | Product Size: | 2179*1129mm |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | RS232 All In One Interactive Whiteboard,190W All In One Interactive Whiteboard,10 Points Infrared Interactive Whiteboard |
||
Product Description
All In One Interactive Whiteboard 92 100 Inch Infrared 10 Points Touch Central Control Host 2*15W Speakers Mini OPS
iBoard multimedia all-in-one Android teaching interactive whiteboard, as a new multimedia interactive teaching terminal, is a PC-based input device with human-computer interaction function. It is a complete all-in-one device that consists of the interactive display unit (including interactive whiteboard and projector)which is its main part, some components like speakers and the control unit which is control components. And All are controlled by the control panel.
As the basic teaching platform of education informatization, multimedia all-in-one Android interactive whitebaord, not only effectively solves the problem of large-scale display, but also achieves better writing effect, especially suitable for the majority of primary and middle schools in urban and rural areas without sufficient educational information. It's a multi-funciton device (including interactive whiteboard teaching, audio and video playing, physical display, etc.), which makes it more convenient and easier to be used because it integrates panel control, one-touch switch and so on. And compared with traditional multimedia devices and touch screen monitor, it is more economical and practical. More importantly, it can help to narrow the "digital divide" between urban and rural education, improve the overall level of regional education informatization, and effectively promote the balanced development of education.
| Mdoel | IB-92Q6HIO | IB-100Q6HIO |
| Projection Size | 2038*1146 | 2227*1253 |
| Touch Active Size | 2142*1152 | 2331*1259 |
| Product Total Area Size | 2179*1129 | 2368*1336 |
| Aspect Ratio | 16:9 | |
| Android Specification | Andriod 6.0 | |
| CPU: QuadCore ARM A53 | ||
| DDR3 - 1G | ||
| 8G | ||
| Touch Technology | IR 10 Touch | |
| Input Ports | HDMI In x2 | |
| VGA In x1 | ||
| USB x6 | ||
| Touch USBx2 | ||
| OPS Slotx1 | ||
| RJ45x1 | ||
| MIC In x1 | ||
| WIFI Antenna x1 | ||
|
Output Ports
|
HDMI x1 | |
| RS232 x1 | ||
| VGA x1 | ||
| AUDIO OUTx1 | ||
|
Others
|
Indicator Light x1 | |
| OPS indictor light x6 | ||
| Speakers: 15W X 2 | ||
| Input Voltage | AC(90～240)V-50/60HZ | |
|
Power
|
Power Standby:<1W | |
| Rated Power:<190W | ||
| working temperature | 0°C～40°C | |
Control unit:
When you press the "system switch", the control unit will be turned on and then the power supply of the whiteboard will also be automatically turned on.
When you press the ”OPS computer switch”, the built-in information processing unit will be turned on and then the electronic whiteboard driver will start automatically.
You can press the “Volume Adjustment” button to increase, decrease or mute the multimedia speaker volume.
Efficient speaker unit:
It adopts DSP digital chip, BLP digital feedback amplification technology and intelligent detection and sampling which can automatically detect and adjust microphone volume gain and search for howling frequency to complete suppression of acoustic feedback.
The output power of the integrated stereo amplifier is not less than 2×15W, and the sound is loud and clear: the signal-to-noise ratio is ≥85dB, the transmission power is ≥10dbm, and the frequency response is ≥50Hz~18KHz.
