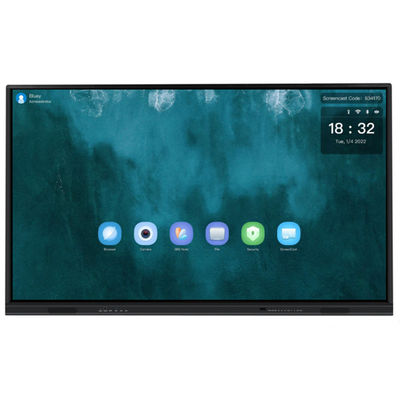

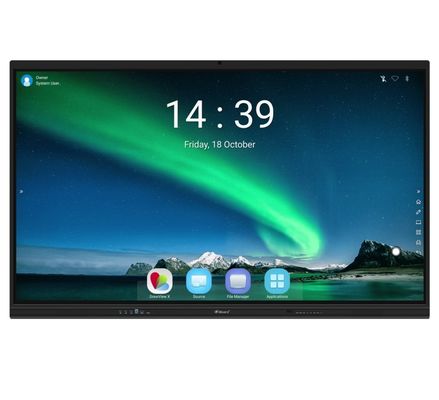

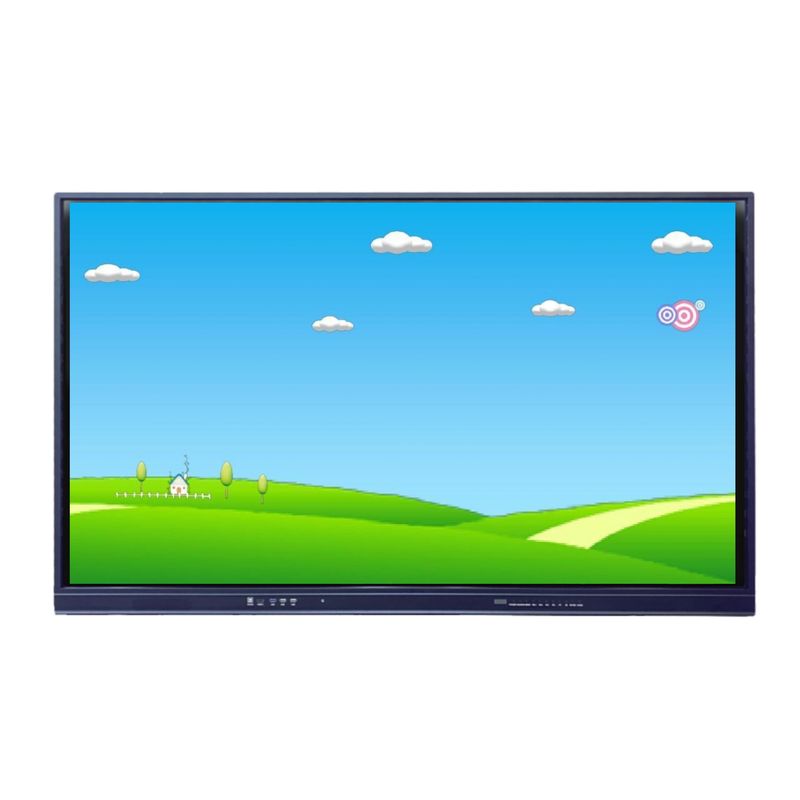

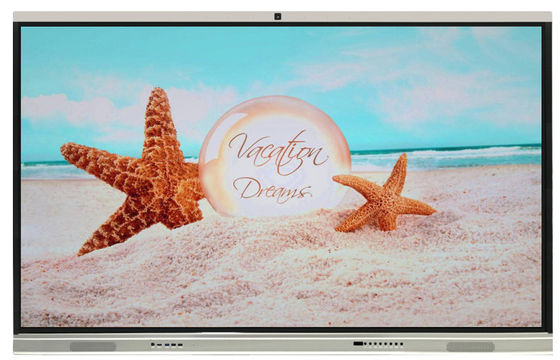

Interactive Flat Panel Digital Board 75 Inch Interactive Displays for Class and Office
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | QS-75 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | USD500 - USD1000/unit |
| Packaging Details: | Carton Package, Wooden case or wooden crate optional |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 units per month |
|
Detail Information |
|||
| Brand Name: | IBoard Or OEM | Product Name: | 75 Inch Interactive Flat Panel |
|---|---|---|---|
| Model: | QS-75 | Screen Size: | 75", 65" 86", 98" Available |
| Color: | Black, Grey, Silver (Other Colors Optional ) | Touch Ways: | Finger Or Any Opaque Objects |
| Touch Points: | 20 Points | Support OPS: | OPS Computer (Optional) |
| Aspect Radio: | 16:9... | Interface: | USB, VGA, RS232, HDMI, RJ45... |
| Shipping Way: | Sea Shipping Air Freight Truck Freight | Warranty: | 1 Year, Up To 3 Years |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |

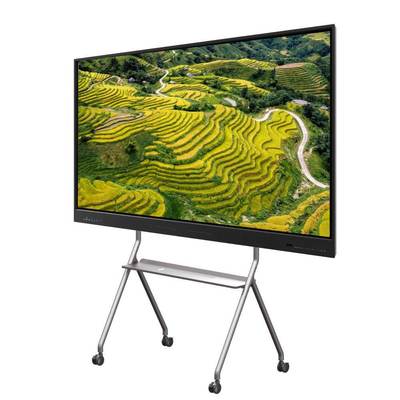

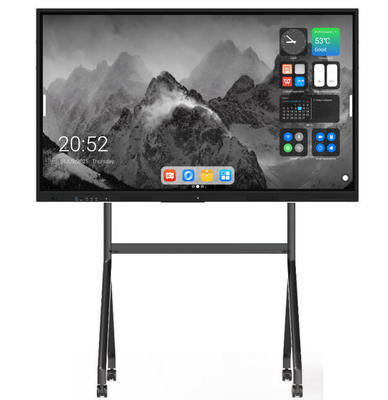

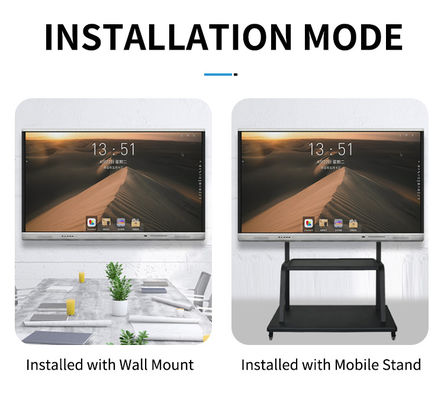

| Accuracy: | 2mm | Mobile Stand: | Optional |
| Camera: | Optional Built In 48MP, Or External Camera | Array Microphone: | Optional In 8 Array |
| NFC Card: | Optional | ||
| Highlight: | 350cd/M2 Interactive Flat Panel,Interactive Flat Panel 3840x2160,RS232 Interactive Lcd Panel |
||
Product Description
Interactive Flat Panel 75 inch
IR Touch Smartboard 4K Display
for School Classroom
| Display | |||||
| Screen Type | D-LED | Display Ratio | 16:9 | ||
| Display Area |
1650.2*928.3 mm(74.52 inch) |
View Angle | 178° | ||
| Resolution | 3840(H) x 2160(V) | Response Time | 6/ 5 ms | ||
| Brightness | 350-500 cd/m2 | Color Depth | 10bit(R), 1.07Billon colors | ||
| Contrast | 5000:1 | Life Time | 50,000 Hrs | ||
|
|||||
| TV SYSTEM | |||||
| Connection | N/A | Sound System | D/K, B/G, I, M | ||
| Video System | PAL, NTSC, SECAM | Channel | N/A | ||
| Sound/SPeaker features | |||||
| Speaker Type | Built-In | Speaker output | 15W * 2, 2X20W optional | ||
| Audio Stereo | Balance, Auto volume control, surround sound | ||||
| android system | |||||
| Android Version | latest Android | GPU | TBD | ||
| CPU | TBD | RAM | 4G/8G/16G/32GB | ||
| Dominant Frequency | TBD | ROM | 32G/64G/128G/256G/512GB | ||
| DISPLAY CONNECTION PORTS | |||||
| Input Ports (Front) | HDMI 1.4*1；USB Touch Port (B)*1, USB2.0*3(multi use for Android,OPS and external PC) | Output Ports(back) |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
||
| Input Ports (Back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1, DP*1 |
||||
| TOUCH SYSTEM | |||||
| Sensing Type | Infrared Touch | Writing Style | Finger; Stylus,any opaque object | ||
| Positioning resolution | 32767 x 32767 | Communication Mode | Full-speed USB (Plug and Play) | ||
| Scanning Speed | 4ms | Surface Glass | 4mm tempered Glass | ||
| Positioning Accuracy | ≤3mm |
OS and points support (driver free) |
Windows, 20-40 points Android 20 points Mac Linux ubuntu |
||
| Internet | |||||
| Ethernet | 802.3 10/100 | Wifi | IEEE 802.11 a/b/g/n/ac, 802.3, 802.3u | ||
| Bluetooth | 4.2 or Latest | ||||
Certificates
Our products meet the certification requirements of most of countries in the world and have complete certificates.
Exhibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 5 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
