| Place of Origin: | Shenzhen, CHINA |
|---|---|
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-XP1-86 |
| Minimum Order Quantity: | 10 |
| Price: | USD700 - USD1800/unit |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
| Brand Name: | IBoard Or OEM | Color: | Black And Silver |
|---|---|---|---|
| Material: | Aluminium Frame | Screen Type: | LED |
| Touch Technology: | Infrared Touch | Touch Ways: | Finger Or Any Opaque Objects |
| Touch Points: | TEN Points To Twenty Points | Support OPS: | 1 OPS Slot (Optional) |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |

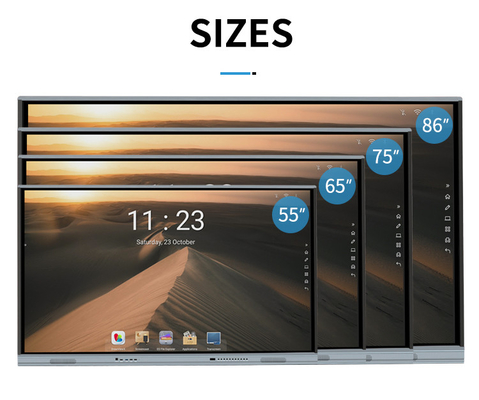

| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | 86 Inch Interactive Flat Panel,415W Interactive Flat Panel,3840x2160 Wall Mounted Flat Panel |
||
Interactive display for training, writing annotation, camera display, connecting to an external PC, playing multimedia audio and video.
Ultra Slim Frame, with the newe ultra-slim frame design and modern styling frame width is only 2.04cm, maximising the area used for touch input and displaying vibrant content.
High-speed multi-point interactive touch technology supporting up to 20 touch points. Using the best Infrared touch sensors, interactions are smooth and fast.
OPS PC module compliant solt support the Intel OPS(Open Pluggable Specification) standard allowing users to add PC level functionality with ease. (It is optional for customers, need extra cost.)
| DISPLAY | |||
| Screen Type | TFT LED | Display Ratio | 16:9 |
| Resolution | 3840(H) x 2160(V) | Display Size | 1895.04*1065.96mm(85.6 inch) |
| Brightness | 350 cd/m2 | Color Depth | 10bit(R), 1.07Billon colors |
| Contrast | 1200:1 | Life Time | 50,000 Hrs |
| ANDROID SYSTEM | |||
| Android Version | Android 8.0 | CPU |
2*ARM Cortex-A73 2*ARM Cortex-A53 |
| DISPLAY CONNECTION PORTS | |||
| Input Ports (Front) |
HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC) USB-C(optional) |
Output Ports(back) |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
| Input Ports (Back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1 |
||
| TOUCH SYSTEM | |||
| Sensing Type | Infrared Touch | Writing Style | Finger; Stylus,any opaque object |
| Positioning resolution | 32767 x 32767 | Communication Mode | Full-speed USB (Plug and Play) |
| Scanning Speed | 4ms | Surface Glass | 4mm tempered Glass |
| Response size | ≥Φ3mm | OS support | Android, Windows, Linux, Mac, Chrome |
| INTERNET | |||
| Ethernet | 802.3 10/100 | Wifi |
IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Or IEEE802.11an 2.4GHz |
| Bluetooth | 4.2 or Updated | ||
| ACCESSORIES |
| Touch nano pen x 2 |
| Touch USB (A-B 1.5M) x 1 |
| HDMI cable(2M) x 1 |
| Power cable(1.8M) x 1 |
| Remote controller x 1 |
Certificates
Our products meet the certification requirements of most of countries in the world and have complete certificates.
Exhibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 15 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
