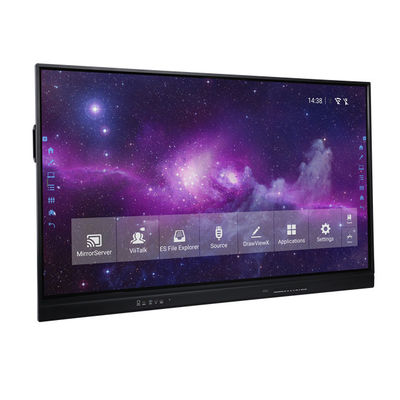

Interactive Touch Screen Whiteboard New Generation Aluminium Frame

Basic Information
Place of Origin: CHINA
Brand Name: iBoard
Certification: CE/FCC/ROHS
Model Number: TE-QS Series
Minimum Order Quantity: 1 Piece
Price: USD700 - USD1800/unit
Packaging Details: Carton or wooden packaging, oem available
Delivery Time: 15-25 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 units/month
Brand Name: IBoard Product Name: Infrared Interactive Flat Panel
Model: QS Panel Size: 55/65/75/86 Inch
Color: Black And Silver Gray+black Material: Aluminium Frame
Screen Type: LED Display Ratio: 16:9
Contrast: 1200:1 Resolution: 3840x2160
View Angle: 178° Brightness: 350cd/m²
System: Android 8 RAM: 2G/4G
ROM: 16G/32G Touch Technology: Infrared Touch
Touch Ways: Finger Or Any Opaque Objects Touch Points: 10 Points Or More
Support OPS: One OPS Slot (Optional) Lifetime: 50000 Hrs
Speakers: 2*15W Suport Resolution: 4K Ultra HD 3840x2160
High Light:

3840x2160 Interactive Touch Screen Whiteboard

,

Android 8 Interactive Touch Screen Whiteboard

,

FCC Interactive Touch Screen Monitor

Interactive Touch Screen Whiteboard



Interactive display for training, writing annotation, camera display, connecting to an external PC, playing multimedia audio and video.

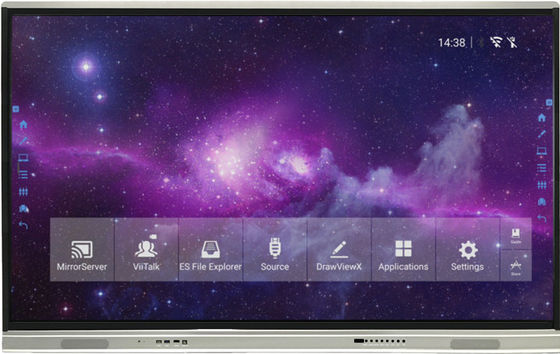

Ultra Slim Frame, with the newe ultra-slim frame design and modern styling frame width is only 2.04cm, maximising the area used for touch input and displaying vibrant content.



High-speed multi-point interactive touch technology supporting up to 20 touch points. Using the best Infrared touch sensors, interactions are smooth and fast.



OPS PC module compliant solt support the Intel OPS(Open Pluggable Specification) standard allowing users to add PC level functionality with ease. (It is optional for customers, need extra cost.)



  TE-QS

New generation Intelligent Multi-Touch Meeting Monitor

 Interactive Touch Screen Whiteboard New Generation Aluminium Frame 0Interactive Touch Screen Whiteboard New Generation Aluminium Frame 1Interactive Touch Screen Whiteboard New Generation Aluminium Frame 2Interactive Touch Screen Whiteboard New Generation Aluminium Frame 3Interactive Touch Screen Whiteboard New Generation Aluminium Frame 4





SPECIFICATION:



Model TE-QS-55 TTE-QS-65 TE-QS-75 TE-QS-86
Dispaly Backlight D-LED Backlight
Resolution 3840*2160 3840*2160 3840*2160 3840*2160
Brightness 350 cd/㎡ 350 cd/㎡ 350 cd/㎡ 350 cd/㎡
Contrast 1200:1 1200:1 1200:1 1200:1
Screen Size(mm) 1210.6*682.4mm 1428,5x803,5mm 1650x928mm 1895,04x1065,96mm
Aspect Ratio 16:9
View Angle 178°
Screen Mode 16:9/4:3/dot to dot/full screen
Color Depth 10bit, 1.07Billon colors 10bit, 1.07Billon colors 10bit, 1.07Billon colors 10bit, 1.07Billon colors
Panel Response Time 8ms 8ms 8ms 8ms
Suport Resolution 4K Ultra HD 3840x2160













Android Specification

Android 8.0

2 x ARM Cortex-A73@1.5GHz

2 x ARM Cortex-A53@1.5GHz

ARM Mali-G51450MHz
2.4 and 5.0GHz WiFi;
Ram: 4G
Storage: 32G
Full support for Full HD and 4K relosution (with OPS slot working with 4k 60Hz);
The file manager is supported
Screen sharing aplication is supported
Local and online supportfor music player.
Input Ports

HDMI 2.0 x2; HDMI 1.4 x1; VGA x1; VGA Audio-In x1; YPBPR x1; AV x1;

USB 3.0 x1;USB 2.0 x1; RJ45 x1; SD Card Reader x1; Touch USB port x2; OPS slot x 1; RS232 x1; USB2,0(for Android and PC) x 3; Display Port x1

Output Ports AV-Out x1; Headphones out; SPDIF x1; HDMI output
Front Button (65” 75” 86”) POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME
Front Button (55”) one power button in the central bottom
Speakers 2x 15w
Voltage AC(100~240)V-50/60HZ
Power Range Standby Power<1W Standby Power<1W Standby Power<1W Standby Power<1W
Rated Power<150W Rated Power<230W Rated Power<350W Rated Power<415W









Touch Parameter

Touch Technology Infared Touch
Touch Points 20 touch points
Writing Mode Finger or any opaque object
Accuracy <2mm
Response Time 5ms
Cusor Speed 180 dot/s
Connection Port USB 2.0, USB 3.0
Operating System Windows/Linux/Mac/Android
Working Temperature 0℃-40℃
Accessories Magnetic Pens*2, HDMI Cable*1, Touch USB cable, Power Cable*1, whiteboard Software *1, Remoter*1, Wall mounting bracket VESA: 400x400 for55", 500x400 for 65”, 600x400 for 75", 750x400 for 86"
Sizes(mm) 1263*780*86.4 1486*905*93.2 1707.4*1030.1*93.3 1953.6*1168.8*93.4
Weights (kgs) 35/ 46 41 / 54 54 / 71 70/ 88

Carton Sizes (mm)

(LxHxW )

1385x 920x 194 1646x1074x240

1873x1204x240



2120x1353x240









Interactive Touch Screen Whiteboard New Generation Aluminium Frame 5





Newly designed model,good outlooking and wide view angle,bring a different new visual experience for presentation.



Fast and high accuracy infrared Multi-touch,smooth writing and convenient finger-guesture erasing. Built-in HD remote-distance meeting system, support up to 4 remote meeting devices to join meeting Support scan QR code of the whiteboard software to share the meeting records by mobile devices.



Dual System Supporting. Support Android and Windows dual system, each system can be operated and managed separately, elegant simplified UI interface for Android, can select the required functions quickly,configured with DrawView X annotation software, can quickly write down handwriting with real writing feeling.





Interactive Touch Screen Whiteboard New Generation Aluminium Frame 6







Interactive Touch Screen Whiteboard New Generation Aluminium Frame 7





ABOUT US

--Company

Interactive Touch Screen Whiteboard New Generation Aluminium Frame 8



Shenzhen iBoard Technology Co., Ltd founded in 2007. The company is located in Shenzhen, Guangdong Province, China. It has 14 years of experience in the education informationization industry. We are a smart education solution provider and operation service provider, specializing in R&D, production and sales of smart education cloud platform, interactive teaching software, interactive whiteboard software; also sales interactive whiteboard, laser projector, all-in-one multimedia device, interactive LED display, advertising display and digital signage etc.



Interactive Touch Screen Whiteboard New Generation Aluminium Frame 9





--Certificates

Our products meet the certification requirements of most of countries in the world and have complete certificates.





Interactive Touch Screen Whiteboard New Generation Aluminium Frame 10





--Factory

Our factory is 23000, can meet the needs of large orders. We have rich experience in OEM/ODM service for overseas customers. And our products are sold to more than 80 countries. Strict production process ensures that products are carefully debugged when they leave the factory. To ensure the perfect delivery to the customer.



Interactive Touch Screen Whiteboard New Generation Aluminium Frame 11







Interactive Touch Screen Whiteboard New Generation Aluminium Frame 12





















Interactive Touch Screen Whiteboard New Generation Aluminium Frame 13
