| Place of Origin: | Shenzhen, CHINA |
|---|---|
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-QS1-65 |
| Minimum Order Quantity: | 10 |
| Price: | USD900-980/PC |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
| Surface Glass: | 4mm Tempered Glass | Touch Points: | 1/2/4/6/10 Points |
|---|---|---|---|
| CPU: | Quad Core A55 | Main Frequency: | Default 1.2G |
| Flash: | 16G/32G EMMC | RAM: | 2G/3 DDR4 |
| Writing Mode: | Touch Pen Or Finger | Side Bar: | Optional |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | Tempered Glass IR Interactive Whiteboard,65 Inch IR Interactive Whiteboard,DLED Screen Android Interactive Whiteboard |
||
All In One Interactive Whiteboard 65 Inch 4mm Tempered Glass 4K DLED TV Screen Dual OS Remote Control Finger Pen Write
Special points:
1, 3840*2160(4K) DLED panel, perfect display performance
2, Android 9.0 OS,latest Android version for touch monitors
3, Latest Infrared touch technology, 10points multi touch, high speed and smoothly
4, Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software
5, Touch support Chrome OS
6, with 3 multi use front USB port, not only work in Android and OPS, but also can pass through the external PC USB, take more convenience to teachers
7, with light sensitive sensor, protect the user’s eyes smartly
8, N.W. no more than 38KG, much easier for delivery and installation
9, multi input annotation software, built-in handwriting recognition (Optional), much easier make note when teaching or having meeting
10, optional magnetic penholder, can stick the magnetic pen on the frame
11, 11 front buttons, the most numbers in the market now, much easier for users operate the machine
12, highest screen display area, black area of scree no more than 2mm
13, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine
14, With HDMI OUT port, extend the screen display
15, optional front Type-C port, support both video play and USB function
16, bulit-in video conference software, support video call after connect to camera
17, bulit-in screen share software, support screen projection
| Model | TE-QS1-65 |
| Display type | DLED |
| Resolution | 3840*2160 |
| Brightness | 350cd/㎡ |
| Contrast ratio | 1200:1 |
| Display area | 1428.5*803.5 mm(64.53 inch) |
| Panel ratio | 16:9 |
| View angle | 178° |
| Color | 10bit,10.7billion color |
| Video format | PAL,NTSC,SECAM |
| Sound format | D/K, B/G, I,M |
| CPU | Quad core A55 |
| Main frequency | default 1.2G |
| Andriod version | 9.0 |
| Flash | 16G/32G EMMC |
| RAM | 2G/3 DDR4 |
| VGA input resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| First touch response time | <19ms |
| Input ports |
Back IO input:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,2*USB 2.0,1*TOUCH-USB,1*RS232,1*TF,1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth,1*OPS(up to3840*2160/60Hz, bulid-in 10M/100M LAN) Front IO input:1*HDMI(Max supporting 3840*2160/60Hz),1*TOUCH USB,3*USB |
| Output port | Back IO OUTPUT:1*COXIAL,1*EARPHONE |
| Front keys | 11KEY(POWER,SOURCE,MENU,VOL+,VOL-,REC,A.Blue,PC,ES,RATIO,HOME) |
| Short cut | optional |
| Rated voltage | AC(100-240)V～50/60HZ |
| Rated current | 2.5A(including OPS) |
| Working temperature | 0°C～45°C |
| Touch points | Single/Two/Four/Six/Ten points |
| Touching mode | Fingers or pen |
| Location technology | Ifrared |
| Location accuracy | <2mm |
| Location resolution | 4096*4096/16384*16384/32768*32768 |
| Continuous response time | <8ms |
| Cursor speed | >180 dot/second |
| Communication port of touch system | USB |
| Operating system | WINDOWS/LINUX/MAC /Android |
| Effective object size | ≥Φ3mm |
| Touch times | More than 60,000,000 times at one position |
| Accessory | Touch pens x 2 |
| Touch USB cable 1.5M x 1 | |
| Power supply cord(1.8M) x 1 | |
| Remote controller x 1 | |
| Warranty card x 1 |

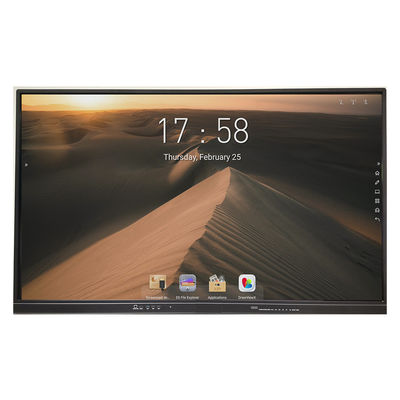

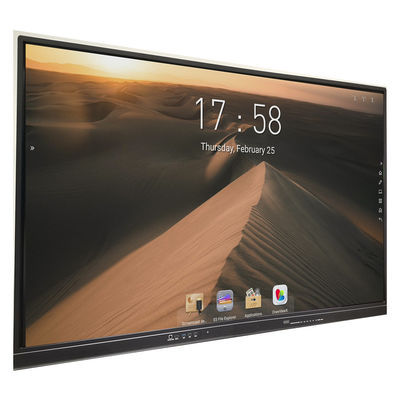

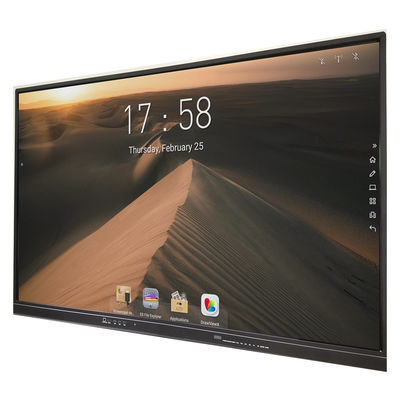

Real photo show:
Package:1pc/carton, optional to be with wooden pallet or crate
