| Place of Origin: | Shenzhen, CHINA |
|---|---|
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-YL6-75 |
| Minimum Order Quantity: | 10 |
| Price: | USD1250-1500/PC |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
| Back Cover: | Plastic | Material: | Aluminum Frame |
|---|---|---|---|
| Sound System: | D/K, B/G, I, M | Video System: | PAL, NTSC, SECAM |
| Lifetime: | 50,000HRS | Brightness: | 350-450cd/m2 |
| Light Sensor: | Equipped | Touch Technology: | Infrared Touch |
| Operation Os: | Andriod/Windows/Mac/Linux | HDMI OUT: | YES |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | SECAM All In One Interactive Whiteboard,86in All In One Interactive Whiteboard,450cd/M2 Electronic Smart Board |
||

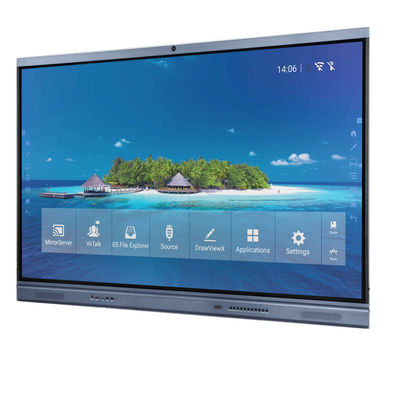

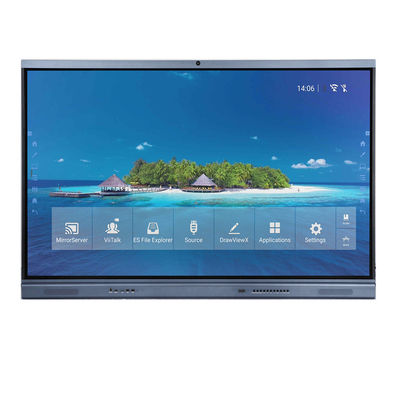

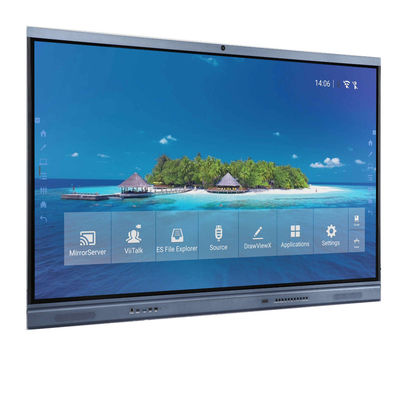

All In One Interactive Whiteboard Wireless Sharing 20 Points Touch 65 75 86 Inch Built in 4K Camera Plug And Play USB
Hot-light features:
1, 3840*2160 4K DLED type panel, perfect display performance,optional to be with anti-glare and anti-finger
2, Android 8.0 or 9.0 OS optional
3, Latest Infrared touch technology, 10points multi touch, high speed and smoothly
4, Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software,dual OS working at one time
5, Touch support Chrome OS
6, with 3 multi use front USB port, not only work in Android and OPS, but also can pass through the external PC USB, take more convenience to teachers
7, with light sensitive sensor, protect the user’s eyes smartly
8, 65" N.W. no more than 38KG, much easier for delivery and installation
9, multi input annotation software, built-in handwriting recognition (Optional), much easier make note when teaching or having meeting
10, optional magnetic penholder, can stick the magnetic pen on the frame
11, 11 front buttons, the most numbers in the market now, much easier for users operate the machine
12, highest screen display area, black area of scree no more than 2mm
13, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine
14, With HDMI OUT port, extend the screen display
15, optional front Type-C port, support both video play and USB function
16, bulit-in video conference software, support video call after connect to camera
17, bulit-in screen share software, support screen projection
| display | |||||
| Screen Type | DLED TYPE | Display Ratio | 16:9 | ||
| Display Area | 1428.5*803.5 mm(64.53 inch) | View Angle | 178° | ||
| Resolution | 3840(H) x 2160(V) | Response Time | 6.5 ms | ||
| Brightness | 350 cd/m3 | Color Depth | 10bit(R), 1.07Billon colors | ||
| Contrast | 4000:1 | Life Time | 50,000 Hrs | ||
| TV SYSTEM | |||||
| Connection | N/A | Sound System | D/K, B/G, I, M | ||
| Video System | PAL, NTSC, SECAM | Channel | N/A | ||
| Sound/SPeaker features | |||||
| Speaker Type | Built-In | Speaker output | 15W * 2 | ||
| Audio Stereo | Balance, Auto volume control, surround sound | ||||
| android system | |||||
| Android Version | Android 8.0 | GPU | ARM Mali-m51450MHz | ||
| CPU |
2*ARM Cortex-A73 2*ARM Cortex-A53 |
RAM | 4G,(8Gbit×4)；DDR4； | ||
| Dominant Frequency | 1.5G | ROM | 32G | ||
| DISPLAY CONNECTION PORTS | |||||
| Input Ports (Front) |
HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC) USB-C(optional) |
Output Ports(back) |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
||
| Input Ports (Back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1 |
||||
| TOUCH SYSTEM | |||||
| Sensing Type | Infrared Touch | Writing Style | Finger; Stylus,any opaque object | ||
| Positioning resolution | 32767 x 32767 | Communication Mode | Full-speed USB (Plug and Play) | ||
| Scanning Speed | 4ms | Surface Glass | 4mm tempered Glass | ||
| Response size | ≥Φ3mm | OS support | Android, Windows, Linux, Mac, Chrome | ||
Package:1pc/carton,optional to be with extra wooden pallet/crate
Applications: school/classroom/office/business center/video meeting/conference/lab/training/presentation,etc.
