| Place of Origin: | Shenzhen, CHINA |
|---|---|
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-YL |
| Minimum Order Quantity: | 10 |
| Price: | 900-4000USD |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
| Product Name: | LED Interactive Whiteboard, Interactive Flat Panel, Multi Touch Screen | Screen Type: | DLED |
|---|---|---|---|
| Size: | 65'',75''86 | Viewing Angle: | 178/178 |
| Interface Type: | USB, HDMI, DP, VGA,RJ45 | Brightness: | 350cd/m2 |
| Resolution: | 3840*2160@60Hz | Type: | Infrared |
| Interface: | USB | Material: | Aluminium Frame |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | Zero gap Interactive Flat Panel,DLED Interactive Flat Panel,DLED interactive flat panel display |
||

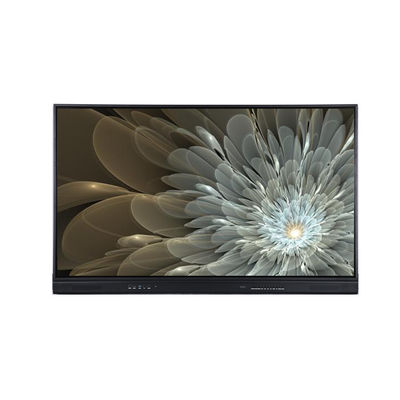

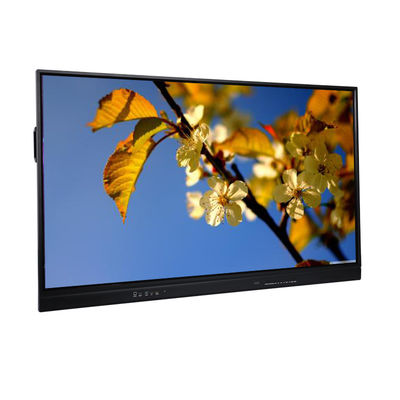

Supper slim interactive flat Panel with Zero gap between panel and glass
Product introduce
iBoard TE-YL series is the latest high class model with supper narrow frame and zero gap design between panel and glass, give the users the ultimate experience at writing and viewing. it's world widely welcomed by customers and shipped out more than 1000pcs every month. the supper slim frame and low hight make it looks like PCAP product, but only need afford the IR price.
The interactive flat panel also has computer function, teachers can timely use a variety of resources, whether it is music, video, or poetry arithmetic, can directly use network resources teaching, rich and colorful.
The integrated infrared touch machine is a modern teaching and HD interactive terminal integrating the functions of LCD high definition display, interactive electronic whiteboard, multimedia demonstration, video conference, network transmission, speaker amplifier and so on
hilight features
1, 3840*2160(4K) UHD panel, perfect display performance
2, Android 8.0 OS, Latest version for monitor
3, Latest Infrared touch technology, 10points multi touch, high speed and smoothly, the best slim frame solution
4, Touch support Windows, Linux, Android and Mac OS, Chrome OS and each system can provide suitable interactive educational software
5, 11.3mm bazel, most advantage in this field
6, non-air gap model, best writing experience
7, double sides anti-glare glass, protect the users eyes, and good view
8, N.W. only 36KG, much easier for delivery and installation
9, multi input annotation software, much easier make note when teaching or having meeting
10, optional magnetic penholder, can stick the magnetic pen on the frame
12, highest screen display area, very slim black area on the surface, only 9mm, make the screen look very nice
13, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine
14, with HDMI out port, can extend one monitor display to another
15, dual wifi mode, 2.4G+5G
Reference Specification
| Sound/SPeaker features | |||
| Speaker Type | Built-In | Speaker output | 10W * 2 |
| Audio Stereo | Balance, Auto volume control, surround sound | ||
| android system | |||
| Android Version | Android 8.0 | GPU | ARM Mali-51450MHz |
| CPU |
2*ARM Cortex-A73 2*ARM Cortex-A53 |
RAM | 4G |
| Dominant Frequency | 1.5G | ROM | 32G |
| DISPLAY CONNECTION PORTS | |||
| Input Ports (Front) | HDMI 1.4*1；USB Touch Port (B)*1, USB2.0*3(multi use for Android,OPS and external PC) | Output Ports(back) |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
| Input Ports (Back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1, DP*1 |
||
