| Place of Origin: | China |
|---|---|
| Brand Name: | IBOARD |
| Certification: | CE,FCC,ROHS,WEEE,etc. |
| Model Number: | TE-YL-65 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD1500-1650/PC |
| Packaging Details: | carton box or could be with extra wooden crate or pallet |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs per month |
| Model: | IR Interactive Whiteboard HDMI VGA USB OPS Port Built In Speakers | Material: | Aluminum |
|---|---|---|---|
| Color: | Black Or Grey Or OEM | Touch USB Port: | Optional |
| Andriod Verison: | 8.0 | Display Ratio: | 16:9 |
| Operation OS: | WINDOWS/ANDROID/MAC/LINUX | Applications: | School/office/lab/science/family,etc. |
| High Light: | 98 Inch IR Interactive Whiteboard,OEM IR Interactive Whiteboard,98 Inch touch interactive whiteboard |
||

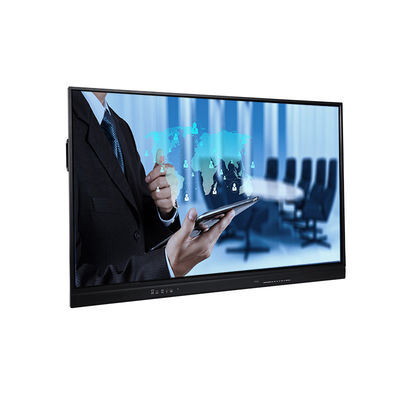

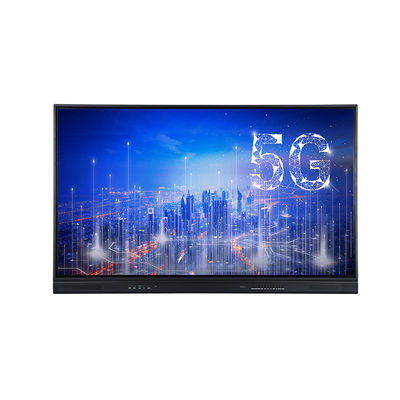

IR Interactive Whiteboard YL Series 65 75 86 98 Inch Workable Pen Finger Writing Touch USB OPS Port Plug And Play USB
Features:
1, 3840*2160(4K) UHD panel, perfect display performance
2, Android 8.0 OS,latest Android version for interactive whiteboard display
3, Latest Infrared touch technology, 10/20/32/40 points multi touch, high speed and smoothly
4, Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software
5, Touch support Chrome OS
6, with 3 multi use front USB port, not only work in Android and OPS, but also can pass through the external PC USB, take more convenience to teachers
7, with light sensitive sensor, protect the user’s eyes smartly
8, N.W. no more than 38KG(65"), much easier for delivery and installation
9, multi input annotation software, built-in handwriting recognition (Optional), much easier make note when teaching or having meeting
10, optional magnetic penholder, can stick the magnetic pen on the frame
11, 11 front buttons, the most numbers in the market now, much easier for users operate the machine
12, highest screen display area, black area of scree no more than 2mm
13, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine
14, With HDMI OUT port, extend the screen display
15, optional front Type-C port, support both video play and USB function
16, bulit-in video conference software, support video call after connect to camera
17, bulit-in screen share software, support screen projection
| Model | TE-YL-65 | TE-YL-75 | TE-YL-86 |
| Display size | 1428.5*803.5mm | 1650.2*928.3mm | 1896.5*1066.5mm |
| Product size | 1469.1*935.8*92.4mm | 1695.6*1066*96.1mm | 1942*1203.6*93.9mm |
| Front Keys |
POWER,SOURCE,MENU,VOL+,VOL-,REC,A.Blue,PC,ES,RATIO,HOME |
||
| Input ports |
Back IO input:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,2*USB 2.0,1*TOUCH-USB,1*RS232,1*TF,1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth,1*OPS(up to3840*2160/60Hz, bulid-in 10M/100M LAN) Front IO input:1*HDMI(Max supporting3840*2160/60Hz),1*TOUCH USB,3*USB |
||
| Output ports |
Back IO OUTPUT:1*COXIAL,1*EARPHONE |
||
| Side bar | NO | NO | NO |
| Andriod version | 9.0 | 9.0 | 9.0 |
| Model | TE-YL-65 | TE-YL-75 | TE-YL-86 |
| Touch technology | Infrared technology | ||
| Rated Voltage |
AC(100-240)V～50/60HZ |
||
| Rated current | 2.5A (including OPS) | ||
| Touch points | 1/2/4/6/10 | ||
Packing details:
| Model | TE-YL-65 | TE-YL-75 | TE-YL-86 |
| Packing size | 1646*240*1050mm | 1873*240*1204mm | 2120*240*1353mm |
| N.W. | 38KGS | 56KGS | 72KGS |
| G.W. | 52KGS | 73KGS | 93KGS |
| Packing accessories | Touch USB cable*1, HDMI cable*1,Power supply cord*1,Touch pen*2,Remote controller,Warranty card*1 | ||
Applications: Our iboard interactive flat monitors are widely used in school,office, meeting, presentation, family,etc. And our products accept OEM and ODM for product logo,packing,software,etc.
