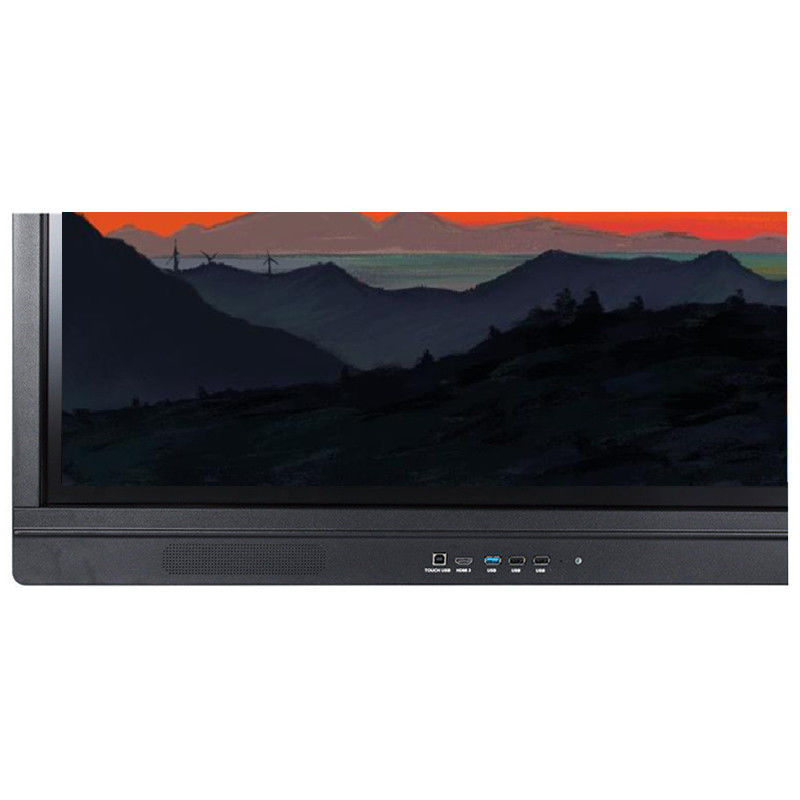

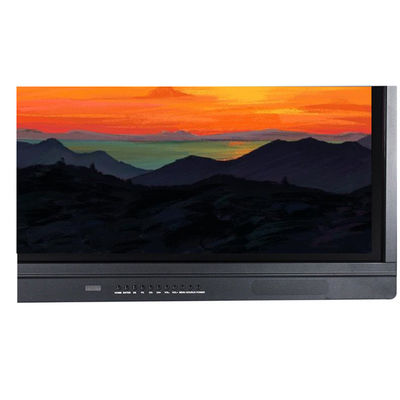

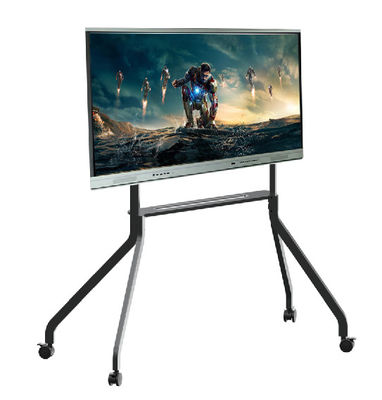

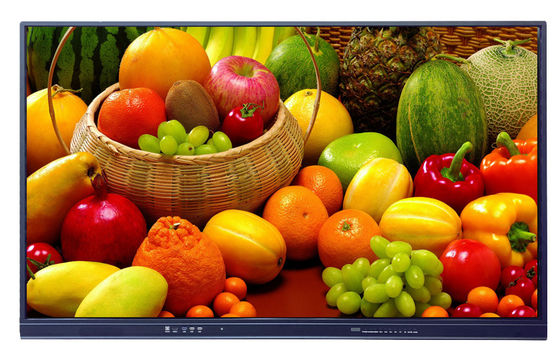

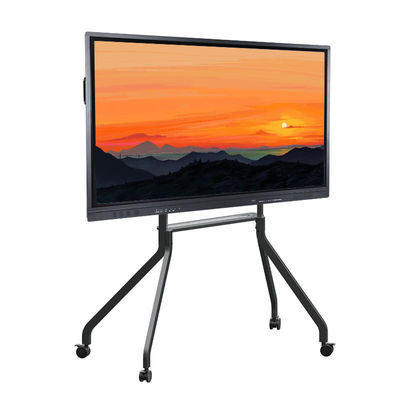

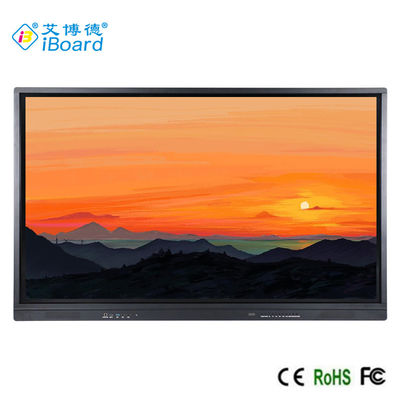

Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display

Basic Information
Place of Origin: CHINA
Brand Name: iBoard
Certification: CE/FCC/ROHS
Model Number: TE-QS/XP/YL-86
Minimum Order Quantity: 1 Piece
Price: USD1200 - USD1800/unit
Packaging Details: Carton or wooden packaging, oem available
Delivery Time: 15-25 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 units/month
Brand Name: IBoard Or OEM Product Name: 86'' Infrared Interactive Flat Panel
Model: TE-QS/XP/YL-86 Size: 86 Inch
Color: Black Material: Aluminium Frame
Screen Type: LED Display Ratio: 16:9
Contrast: 1200:1 Display Size: 1895.04*1065.96mm(85.6 Inch)
Resolution: 3840 X 2160 View Angle: 178°
Brightness: 350cd/m² System: Android 11
RAM: 2G ROM: 16G
Touch Technology: Infrared Touch Touch Ways: Finger Or Any Opaque Objects
Touch Points: 10 Points Or More Support OPS: One OPS Slot (Optional)
Lifetime: 50000 Hrs
High Light:

86 Inch Iboard Interactive Whiteboard

,

Android Iboard Interactive Whiteboard

,

Iboard led interactive whiteboard

Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display



  TE-QS/XP/YL-86

 Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 0Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 1Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 2Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 3Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 4Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 5Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 6



Specifications

DISPLAY
Screen Type LED Display Ratio 16:9
Resolution 3840(H) x 2160(V) Display Area 1895.04*1065.96mm(85.6 inch)
Brightness 350 cd/m3 Color Depth 10bit(R), 1.07Billon colors
Contrast 1200:1 Life Time 50,000 Hrs
    Response Time 6.5 ms
ANDROID SYSTEM
Android Version Android 11.0 CPU

Dual Cores ARM Cortex-A73

Dual Cores ARM Cortex-A53
DISPLAY CONNECTION PORTS
Input Ports (Front)

HDMI 1.4*1;USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC)

USB-C(optional)

Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1

Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1


Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Response size ≥Φ3mm OS support Android, Windows, Linux, Mac, Chrome
INTERNET
Ethernet 802.3 10/100 Wifi

IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz

Or IEEE802.11an 2.4GHz

Bluetooth 4.0
ACCESSORIES
Touch pen x 2
Touch USB (A-B 1.5M) x 1
HDMI cable (2M) x 1
Power cable (1.8M) x 1
Remote controller x 1





Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 7





Newly designed model,good outlooking and wide view angle,bring a different new visual experience for presentation.



Fast and high accuracy infrared Multi-touch,smooth writing and convenient finger-guesture erasing. Built-in HD remote-distance meeting system, support up to 4 remote meeting devices to join meeting Support scan QR code of the whiteboard software to share the meeting records by mobile devices.



Six functions in one, integrate functions of projector, interactive board, computer, television, koisk and audio but better user experience.

It is an ideal solution for business presentation or schools.







Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 8







Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 9











ABOUT US

--Company

Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 10



Shenzhen iBoard Technology Co., Ltd founded in 2007. The company is located in Shenzhen, Guangdong Province, China. It has 14 years of experience in the education informationization industry. We are a smart education solution provider and operation service provider, specializing in R&D, production and sales of smart education cloud platform, interactive teaching software, interactive whiteboard software; also sales interactive whiteboard, laser projector, all-in-one multimedia device, interactive LED display, advertising display and digital signage etc.



Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 11





--Certificates

Our products meet the certification requirements of most of countries in the world and have complete certificates.





Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 12





--Factory

Our factory is 23000, can meet the needs of large orders. We have rich experience in OEM/ODM service for overseas customers. And our products are sold to more than 80 countries. Strict production process ensures that products are carefully debugged when they leave the factory. To ensure the perfect delivery to the customer.



Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 13







Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 14





















Newest Version Android 11 86 Inch iBoard Interactive Multi Touch LED Screen 4K Display 15
