Wall Mounted 75 Inch Interactive Whiteboard PC, Android 8 ,Aluminium Alloy Frame Flat Panel For Meeting Presentation
Product Details
| Brand Name: | IBoard Or OEM | Product Name: | 75'' Infrared Interactive Flat Panel |
|---|---|---|---|
| Model: | XP1-75 | Size: | 75 Inch |
| Color: | Black And Silver | Material: | Aluminium Frame |
| Screen Type: | LED | Display Size: | 1650.2*928.3 Mm(74.52 Inch) |
| Contrast: | 1200:1 | Display Ratio: | 16:9 |
| Resolution: | 3840 X 2160 | View Angle: | 178° |
| Brightness: | ≥350cd/m² | System: | Android 8 |
| RAM: | 4G | ROM: | 32G |
| Touch Technology: | Infrared Touch | Touch Ways: | Finger Or Any Opaque Objects |
| Touch Points: | 10 Points Or More | Support OPS: | One OPS Slot (Optional) |
| Lifetime: | ≥50000 Hrs | Aspect Radio: | 16:10, 16:9... |
| Interface: | USB, VGA, RS232, HDMI | Screen Size: | 65",75",86", 98" |
| Multi-Touch: | Up To 40 Points | Hotkeys: | Two Sides Hotkeys |
| Shipping Way: | Sea Shipping Air Freight Truck Freight | Touch Points: | 20 Points |
| Warranty: | 1 Year | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Andriod/Windows/Linux/Mac.etc. | Accuracy: | 2mm |

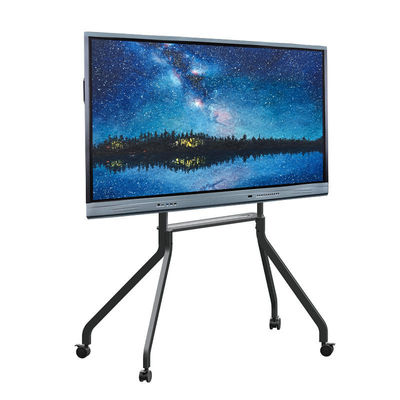

| Mobile Stand: | Optional | Colors: | Black Or OEM |
| Highlight |
Wall Mounted 75 Inch Interactive Whiteboard,PC 75 Inch Interactive Whiteboard |
||
Product Description
Interactive Flat Panel 75 inch IR Touch Wall Mounted 4K Monitor All-in-One Android PC Aluminium Frame Black and Silver
| DISPLAY | |||
| Screen Type | TFT LED | Display Ratio | 16:9 |
| Resolution | 3840(H) x 2160(V) | Display Size | 1650.2*928.3 mm(74.52 inch) |
| Brightness | 350 cd/m3 | Color Depth | 10bit(R), 1.07Billon colors |
| Contrast | 1200:1 | Life Time | 50,000 Hrs |
| ANDROID SYSTEM | |||
| Android Version | Android 8.0 | CPU |
2*ARM Cortex-A73 2*ARM Cortex-A53 |
| DISPLAY CONNECTION PORTS | |||
| Input Ports (Front) |
HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC) USB-C(optional) |
Output Ports(back) |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
| Input Ports (Back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1 |
||
| TOUCH SYSTEM | |||
| Sensing Type | Infrared Touch | Writing Style | Finger; Stylus,any opaque object |
| Positioning resolution | 32767 x 32767 | Communication Mode | Full-speed USB (Plug and Play) |
| Scanning Speed | 4ms | Surface Glass | 4mm tempered Glass |
| Response size | ≥Φ3mm | OS support | Android, Windows, Linux, Mac, Chrome |
| INTERNET | |||
| Ethernet | 802.3 10/100 | Wifi |
IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Or IEEE802.11an 2.4GHz |
| Bluetooth | 4.2 or Updated | ||
| ACCESSORIES |
| Touch pen x 2 |
| Touch USB (A-B 1.5M) x 1 |
| HDMI cable(2M) x 1 |
| Power cable(1.8M) x 1 |
| Remote controller x 1 |
THE PRODUCT -- TE-XP1-75
Newly designed model,good outlooking and wide view angle,bring a different new visual experience for presentation.
Fast and high accuracy infrared Multi-touch,smooth writing and convenient finger-guesture erasing.
ABOUT US
--Company
Shenzhen iBoard Technology Co., Ltd founded in 2007. The company is located in Shenzhen, Guangdong Province, China. It has 14 years of experience in the education informationization industry. We are a smart education solution provider and operation service provider, specializing in R&D, production and sales of smart education cloud platform, interactive teaching software, interactive whiteboard software; also sales interactive whiteboard, laser projector, all-in-one multimedia device, interactive LED display, advertising display and digital signage etc.
--Certificates
Our products meet the certification requirements of most of countries in the world and have complete certificates.
--Factory
Our factory is 23000㎡, can meet the needs of large orders. We have rich experience in OEM/ODM service for overseas customers. And our products are sold to more than 80 countries. Strict production process ensures that products are carefully debugged when they leave the factory. To ensure the perfect delivery to the customer.
