Product Name: | IBoard Interactive Whitebarod, Smart Whiteboard, Electronic Whiteboard | Size: | 120inch |
---|---|---|---|
Display Ratio: | 16:9 | Bazel: | Aliminium |
Surface: | Nano Paint Anti-glare On Cold Steel | Touch Technology: | Infrared |
Interface: | USB2.0, USB 3.0 | Touch Points: | 10-32points |
Resolution: | 32768*32768 | Warranty: | 3years |
Highlight: | 120 Inch IBoard Interactive Whiteboard,16 9 IBoard Interactive Whiteboard |

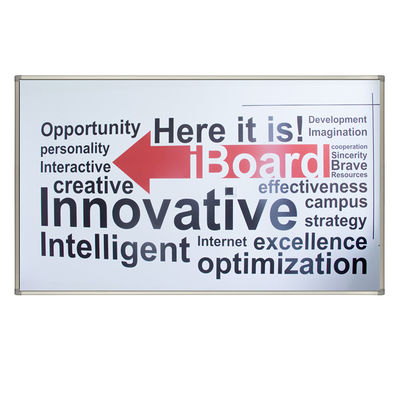

iBoard Interactive Whiteboard 120inch big size 16:9 smart whiteboard for education
Product introduce
IBOARD interactive whiteboard with infrared sensing technology leading, fingers and any opaque object is your mouse, is a high quality, high performance and high performance price ratio of interactive whiteboard features. For education, business and other fields have vivid, smooth user experience, with the smart-class (computer, projector, physical booth and cloud meter classes in the multimedia equipment) used in combination, can make the teaching, immediate meeting content into dynamic resource information which can be edited, truly realize the interactive communication

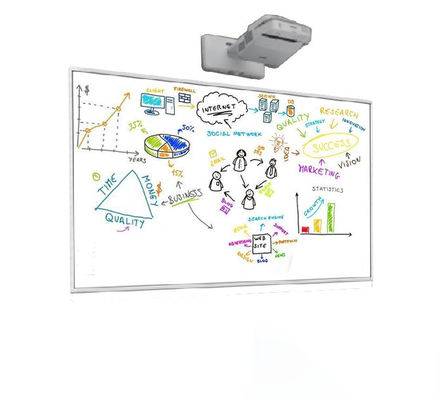

As the world's largest interactive electronic whiteboard, IBOARD 120 inch whiteboard has 2.6 meters length and 1.2 meters hight. Support one projector projection , combine multi functions as normal whiteboard, interactive whiteboard, projection screen together, it’s totally new audio-visual products of ordinary writing board in one; and the special rice yellow face, large visual angle, light spectrum minimal reflection, to protect the eyesight effectively, so that the traditional teaching with multimedia teaching to be perfect.
IBoard gesture recognition patent - operation becomes much simple
IBoard is the only company that owns hand gesture recognition patent in this field. You can operate on the board by your fingers, like iphone, to zoom in or zoom out, and erase the content. All these make operation easier and bring irreplaceable real experience.
Reference specification
Hardware Special Features | Gesture recognition |
Touch Technology | Infrared |
Touch Point | 10 touch |
Resolution: | 32768 x 32768 |
Cursor Speed | 180 dot /s |
Effect Touch Object Size | >8mm |
Touch Method | Finger or Pen |
Positioning Accuracy | <2mm |
Connecting Port | USB 2.0 |
Operating System | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android |
Power Supply | USB power supply DC 4.6V- 5.0V <1W ( 100mA at 5V) |
Working Condition | Indoor or Outdoor |
Storage | Temperature: -30°C~60°C Humidity: 0%~95% |
Operation | Temperature: -10°C~45°C Humidity: 10%~90% |
Installation | Wall mounted, cabinets, mobile stand (optional) |
PHYSICAL SPECIFICATIONS
Model | IB-120T |
Overall Size (mm) | 2727 x 1566 |
Overall Diagonal (inch) | 123.8” |
Aspect Ratio | 16:9 |
Board Weight (kgs) | 38 |
Gross Weight (kgs) | 50 |
Product Dimension (mm) | 2727 x 1566 x37.5 |
Packed Size (mm) | 2850x1680x90 |
