iBoard Interactive Whiteboard 92'' Multi Touch Smart Board For Teaching
Product Details
| Type: | All-in-One Interactive Whiteboard | Touch Size: | 2142*1152 |
|---|---|---|---|
| Diemnsion Size: | 2179*1129 | Frame: | Aluminum Frame |
| Color: | Silver | Touch Points: | 10 Touch Points |
| Touch Mode: | Fingers Or Any Opaque Objects | Connection Ports: | USB 2.0/3.0, HDMI,VGA, TOUCH USB Etc. |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |

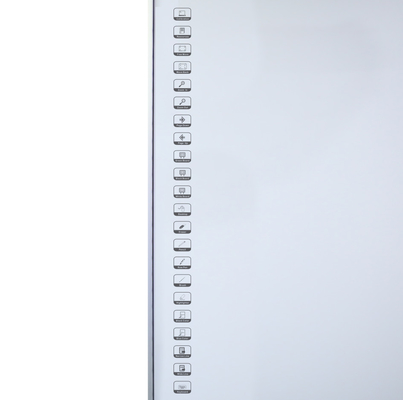

| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight |
92'' Multi Touch Smartboard,AIO Iboard Interactive Whiteboard,92'' Iboard Interactive Whiteboard |
||
Product Description

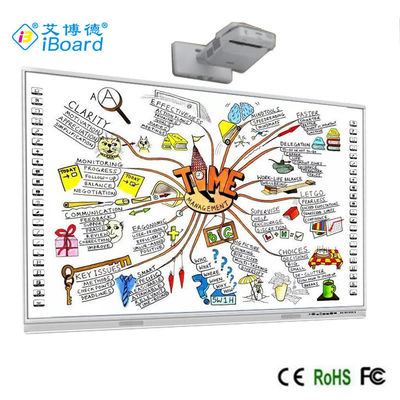

iBoard IR All-in-One Interactive Whiteboard 92'' Android PC USB2.0
Descirption of Smart Board

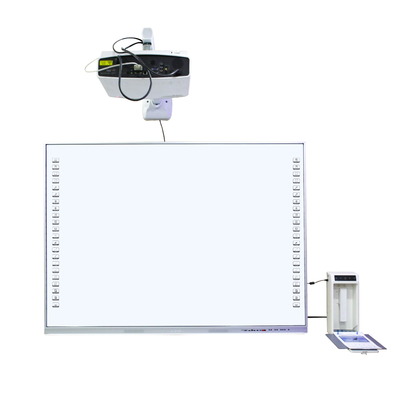

Multimedia all-in-one machine is composed of interactive infrared whiteboards, micro-industrial small computers, surround sound speakers, central control, control panels and wireless microphones (optional). The appearance adopts pure aluminum alloy silver sandblasting design. The multimedia all-in-one machine adopts integrated design and is easy to be installed. The whole machine only needs external power cable and projector signal output line without adding a third wire. The computer completely adopts built-in design. The product looks beautiful and its functions can meet the needs of users.
| SPECIFICATION of Multi-touch Whiteboard | ||
| Mdoel | ZT-98 | ZT-108 |
| Total Diagonal Size | 98.5 inch | 107 inch |
| Active Diagonal Size | 95.5 inch | 104.1 inch |
| Projection Diagonal Size | 92inch | 100.6 inch |
| Projection Size (mm) | 2038*1146 | 2227*1253 |
| Touch Active Size (mm) | 2142*1152 | 2331*1259 |
| Product Total Area Size (mm) | 2179*1129 | 2368*1336 |
| Aspect Ratio | 16:9 | 16:9 |
|
Touch Module Parameters |
Techonology: Infared Touch | |
| Cursor Speed: 200 dot/s | ||
| Touch Resolution: 32768*32768 | ||
| Writing Mode: Finger or any other opaque object | ||
| Touch Point: 10 points | ||
| Accuracy: 2 mm | ||
| Response Time: 5ms | ||
| Connection : USB2.0 , USB3.0 | ||
| Supported OS systems: Windows/Android/Linux /Mac | ||
|
Android Specification
|
Andriod 6.0 | |
| CPU: QuadCore ARM A53 | ||
| DDR3 - 1G | ||
|

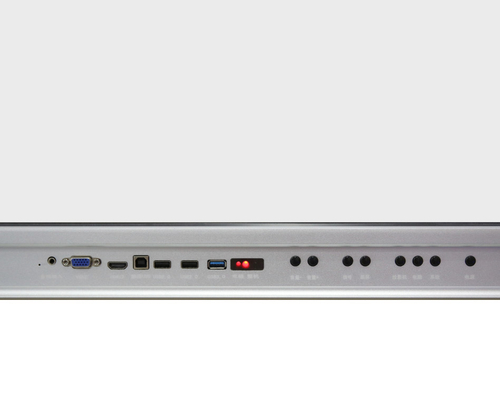

Input Ports |
HDMI-In x2 (support up to 1920*1200) | |
| USB x6 | ||
| Touch USBx2 | ||
| OPS Slotx1 | ||
| RJ45x1 | ||
| MIC In x1 | ||
| WIFI Antenna x1 | ||
|
Output Ports |
HDMI x1((support up to 1920*1080p) | |
| RS232 x1 | ||
| AUDIO OUTx1 | ||
| Speakers | 15W x2 | |
| Indicator Lights | Device Indicator light x1; Built-in OPS indicator light x1 | |
| Input Voltage | AC(90～240)V-50/60HZ | |
| Power | Power Standby:<1W | |
| Rated Power:<190W | ||
| working temperature | 0°C～40°C | |
|
Accessories |
Power Cord 3 Meters x 1 | |
| HDMI Cable 5 Meters x 1 | ||
| Touch USB Cable 1.5 Meters x 1 | ||
| RS232 Cable 5 Meters x 1 | ||
| Installation Guide x 1 | ||
| Styplus Pen x 3 | ||
| Pointer x 1(Optional) | ||
| Whiteboard Software x 1 | ||
--Certificates
Our products meet the certification requirements of most of countries in the world and have complete certificates.
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 12 years. From material purchasing to product delivery, we have own professional
staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 12 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
