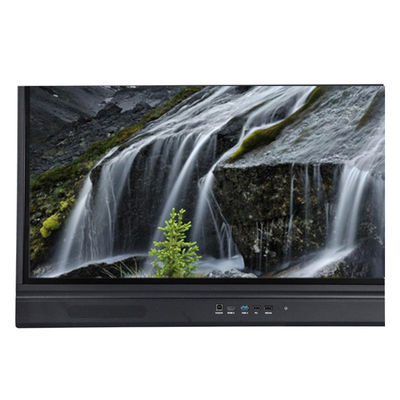

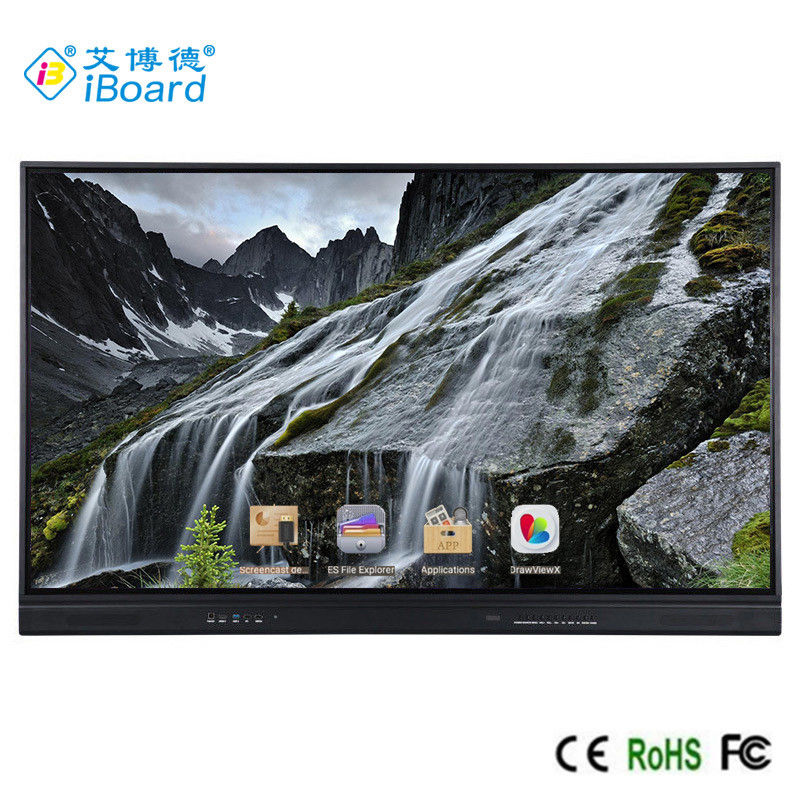

65 Inch LED Interactive Whiteboard, Android Smart Flat Panel 20/40 Touch Points Infrared Black Color
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | YL5s-65 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | USD400 - USD800/unit |
| Packaging Details: | Carton Package, Wooden case or wooden crate optional |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Brand Name: | IBoard Or OEM | Product Name: | 65'' Infrared Interactive Flat Panel |
|---|---|---|---|
| Size: | 65 Inch | Color: | Black |
| Touch Technology: | Infrared Touch | Touch Ways: | Finger Or Any Opaque Objects |
| Touch Points: | 20 Points | Support OPS: | OPS Slot |

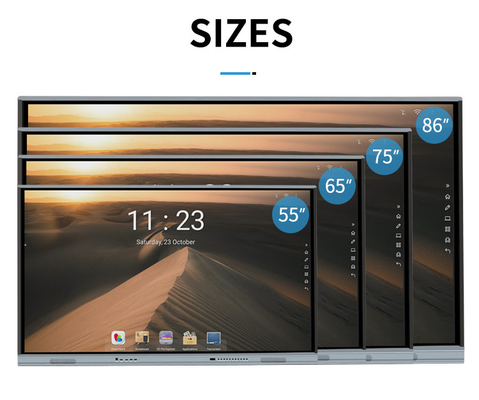

| Interface: | USB, VGA, RS232, HDMI | Screen Size: | 65",75",86", 98" |
| Multi-Touch: | Up To 40 Points | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Warranty: | 1 Year, Up To 3 Years | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Andriod/Windows/Linux/Mac.etc. | Accuracy: | 2mm |

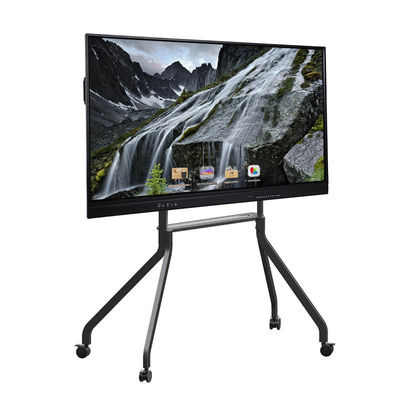

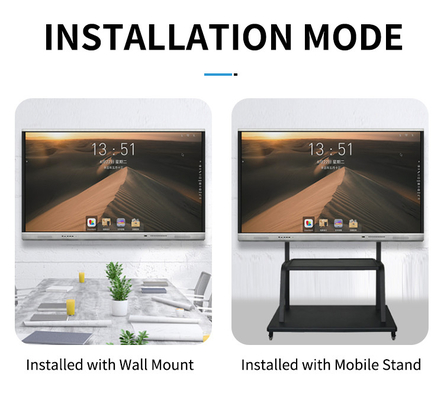

| Mobile Stand: | Optional | Colors: | Black Or OEM |
| Highlight: | 65 inch LED Interactive Whiteboard,Android 9 Smart Flat Panel,65 Inch Smart Flat Panel |
||
Product Description
65'' IR Interactive Flat Panel Display
| Model Name | TE-YL5S-65 |
| Type of Screen | DLED |
| Resolution | 3840*2160 |
| Brightness | 350-450 cd/㎡ |
| Contrast | 1200:1 |
| Display Area | 1428.5*803.5 mm(64.53 inch) |
| Display Ratio | 16:9 |
| View Angle | 178° |
| Color Depth | 10bit,1.07 Billion Colors |
| Video System | PAL,NTSC,SECAM |
| Sound System | D/K, B/G, I,M |
| CPU | 4 x ARM Cortex-A55, have others options |
| Basic Frequency | Default 1.2G |
| Android | Lastes version |
| Flash | 32GB/128GB/... |
| RAM | 4GB/8GB.. |
| Computer VGA Inputs Support Resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| First Touch Response Time | <19ms |
| Input Ports |
BACK:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,2*USB2.0,1*TOUCH-USB,1*RS232,1*TF CARD(MAX 32G),1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth(Support 4.0),1*OPS SLOT(up to3840*2160/60Hz) FRONT:1*HDMI(Max SPPORT 3840*2160/60Hz),1*TOUCH USB,3*USB(Support Android & OPS) |
| Output Ports | Back OUTPUT:1*COXIAL,1*EARPHONE |
Certificates
Our products meet the certification requirements of most of countries in the world and have complete certificates.
Exhibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first . From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 20-30 days.
