Supper slim interactive flat panel/Touch screen monitor Android9.0 OS

Basic Information
Place of Origin: China
Brand Name: iBoard
Certification: CE, FCC
Model Number: TE-QS
Minimum Order Quantity: 10PCS
Price: 700-3500USD/PC
Packaging Details: carton+pallet
Delivery Time: 3weeks
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Panel Type: LED Resolution: 3840*2160
Andorid Os: 9.0 Ram: 3G
ROM: 16G/32G Touch Technology: IR
Touch Points: 10 Screen Size: 55'', 65'', 75'', 86'', 98''
Color: Black/gray Application: Education, Meeting



Item TE-QS-65 TE-QS-75 TE-QS-86
Display size 65inch 75inch 86inch
Resolution 4K UHD 3840*2160
brightness 350cd/m2
View angle 178°
Android Version 9.0.0
Ram/Rom 3G/32G
I/0 Ports

Front: HDMI,touch USB,USB,USB,USB

Back:HDMI IN, LAN, USB2.0, TOUCH USB, VGA, AUDIO IN,TF,WIFI, OPS

Touch technology Infrared (IR)
Touch points 2-20points
Touch OS support Windows, Android,Liunx, Mac,Chrome





TE-QS series interactive flat panel with Ultra-narrow bezel,break through limits,good outlooking and wide view angle,bring a different new visual experience for presentation. is one of the most popular IFPD of iBoard. iBoard interactive flat panel all designed by own R&D department, includes the touch frame, structure, motherboard functions and application sofwware, then assembled in our own factory, can maximum match customers' requirements and control the quality.  Flexiable product line design, can support customers' different delivery date requirements.

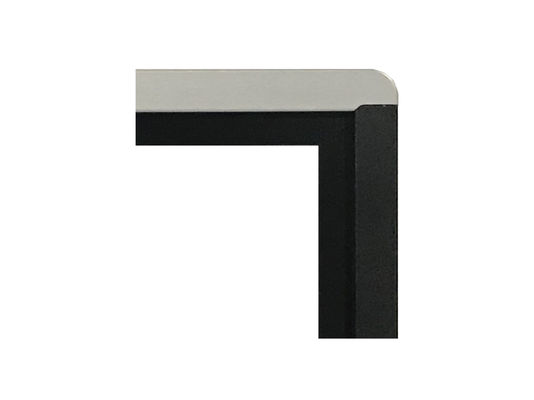

16.2mm ultra-narrow bezel
Ultra-narrow bezel design, Breakthrough to 16.2mm, stylish appearance, screen utilization rate reaches 98%,wide view angle,greatly improved using experience. Also the IR fliter height is small and it make the screen like a capacitive touch screen.



Multi-Touch

Leading infrared sensing positioning technology, support multi-person writing at same time, support writting by your fingers or any opaque object, Intelligent gesture recognition, can meet various meeting demands.



All-in-One Design

Five functions in one, integrate functions of projector, interactive board, computer, koisk and audio but better user experience. It is an ideal solution for business presentation or schools.



UHD 4K Resolution

4K picture quality, more delicated. High-precision UHD picture for visual enjoyment. Support mobile wireless control, built-in annotation applications and other software.



Dual System Supporting

Support Android and Windows dual system, each system can be operated and managed separately, elegant simplified UI interface for Android, can select the required functions quickly,configured with DrawView X annotation software, can quickly write down handwriting with real writing feeling.



Magnetic Pen Slot Holder(Optional)
The bottom frame of the monitor is designed with a magnetic pen slot holder. The pen can be attached to the pen slot after writing, which solves the problem that the writing pen was easy to get lost, and it is also more convenient to find the pens.



Supper slim interactive flat panel/Touch screen monitor Android9.0 OS 0

Supper slim interactive flat panel/Touch screen monitor Android9.0 OS 1

Supper slim interactive flat panel/Touch screen monitor Android9.0 OS 2
