8G 102" All In One Interactive Whiteboard With 10 Touch Points

Basic Information
Place of Origin: China
Brand Name: iBoard
Certification: CE FCC BSMI C-TICK
Model Number: ZT-90 ZT-102
Minimum Order Quantity: 10
Price: USD150-280 per piece
Packaging Details: Export cartons for the interactive whiteboard smart boards
Delivery Time: 20 working days
Supply Ability: 10000 pieces per year
Touch Technology: Infrared Touch Point: 10 Touch Points
Resolution: 32768*32768 Cursor Speed: 180 Dot /s
Effect Touch Object Size: >8mm Touch Method: Finger Or Any Opaque Objects
Positioning Accuracy: <2mm Connecting Port: USB2.0 USB3.0
Operating System: Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android Power Supply: USB Power Supply DC 4.6V- 5.0V <1W ( 100mA At 5V)
Storage: 8G Operation: Temperature: -10°C~45°C Humidity: 10%~90%
Installation: Wall Mounted, Cabinets, Mobile Stand (optional) Color: Black(other Colors Optional ),Gray,Silver/Black
Hotkey: With Hotkeys Or Without Other Name: Interactive Display Board
Whiteboard Type: Interactive Whiteboard,Electronic Whiteboard,Standard Whiteboard Folded: No
Type: Whiteboard Size: Multitouch Electronic Interactive Whiteboard With Hotkey
Touch Points: 10 Points,6 Or More,6,32 Points,2 Product Name: Interactive Smart Board,75 Inch Full HD Electronic Teaching Whiteboard,interactive Whiteboard,New Portable Usb Wireless Infrared Touch Screen Interactive Whiteboard,China Interactive Whiteboard 10 Points Infrared Touch Board Smart
Application: School Teaching,education,Classroom Education For School,business,presentation Warranty: 3 Years
Material: Aluminum Alloy Frame,Nano+Aluminum Honeycomb/ceramic,Aluminum Frame + Rolled-Cold Steel Technology: Infrared,Infrared Interactive Whiteboard
Name: Stand Digital Smart Board,infrared Interactive Whiteboard,84 Inch Lcd Interactive Tv Touch Screen Whiteboard With Wifi Mobile St Function: Projector,tablet,For Education Or Trading
Touch Screen: IR Touch (Support Multi Touch),Infrared Touch Android Version: Andorid 6.0
RAM: 1G Nteractive Smart Whiteboard: Nteractive Smart Whiteboard
Highlight:

102" All In One Interactive Whiteboard

,

8G All In One Interactive Whiteboard

,

102" all in one smart board

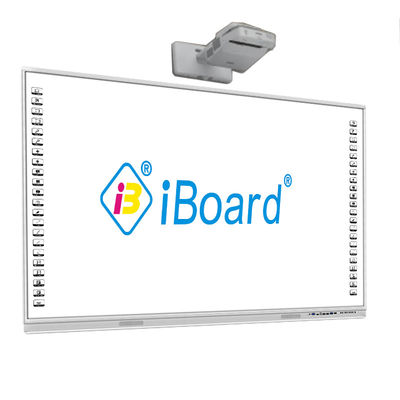

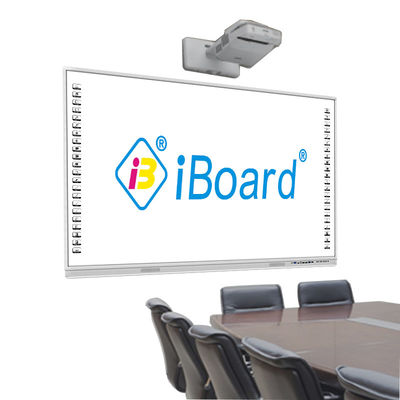

Product Name: 92" 102" Electronic IR All-In-One Pc Interactive Smart Board Multi-Touch Interactive Whiteboard





​​Ⅰ. Description Of IR Interactive Whiteboard and Multi-media All-in-One interactive whiteboard



An interactive whiteboard, also known as interactive board or smart board, is a large interactive display board in the form factor of a whiteboard. It

can either be a standalone touchscreen computer used independently to perform tasks and operations, or a connectable apparatus used as a touchpad to control computers from a projector. They are used in a variety of settings, including classrooms at all levels of education, in corporate board rooms and work groups, in training rooms for professional sports coaching, in broadcasting studios, and others.

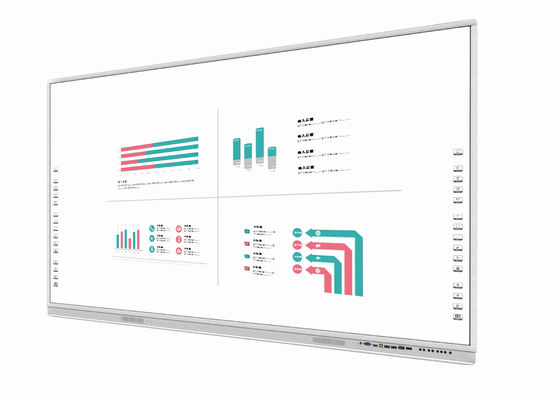

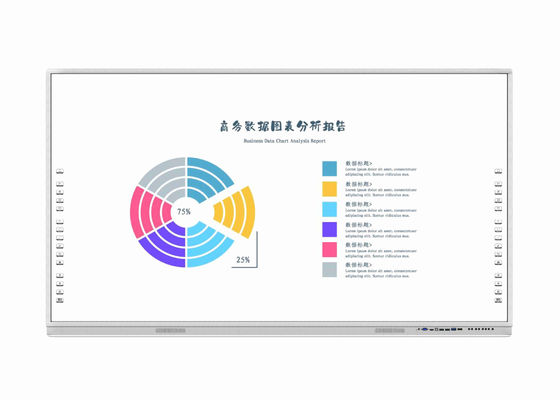

Multi-media All-In-One Interactive Whiteboard is an upgraded version of traditional interactive whiteboards, it intergrated with built in speaker, support dual system (android and windows) , optical wall mounted or built in document visualizer, support wireless screenshare and with annotation Interactive whitebaord software for both andoird and windows system. Support andorid system means you can also install some other third-party android app for educations.



II. Connecting the Whiteboard

Connect the Whiteboard with laptop/PC and projector:
1. Insert one end of the provided USB cable into the USB port of the laptop.
2. Insert the other end into the USB port of the Whiteboard.
3. Insert one end of HDMI (or VGA) cable into the laptop/PC's HDMI (or VGA) port.
4. Insert the other end into the projector's HDMI (or VGA) port. Make sure
the projector is set to use its HDMI( or VGA) input.
When finished, the installation should look similar to the figure bellow:

8G 102" All In One Interactive Whiteboard With 10 Touch Points 0


. Our Advantage


1. We are factories with more than 14 years' exprience on making OEM/ODM interactive smart whiteboard, our interactive board has been sold to more than 80 countries, we  have own developed interactive whiteboard software Drawview, support multi-languages, easy use and have abundant teaching tools.  Prdouction capability for IWB is more than 10,000 pieces per month.

2. 10 points IR touch ( 20 points touch option): We used own developed touch sensor for the IWB, it dopt super sensitive touch sensor, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.

3. Board panel: Nanometer high polymer/Ceramic (Porcelain) surface+ XPS/Aluminum honeycomb middle

4. Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.

5. Support gesture recognition in our smart board software



8G 102" All In One Interactive Whiteboard With 10 Touch Points 1



8G 102" All In One Interactive Whiteboard With 10 Touch Points 2

8G 102" All In One Interactive Whiteboard With 10 Touch Points 3

8G 102" All In One Interactive Whiteboard With 10 Touch Points 4

SPECIFICATION
Mdoel ZT-90
Total Diagonal Size 98.5 inch
Active Diagonal Size 95.5 inch
Projection Diagonal Size 92inch
Projection Size (mm) 2038*1146
Touch Active Size (mm) 2142*1152
Product Total Area Size (mm) 2179*1129
Aspect Ratio 16:9







Touch Module Parameters

Techonology: Infared Touch
Cursor Speed: 200 dot/s
Touch Resolution: 32768*32768
Writing Mode: Finger or any other opaque object
Touch Point: 10 points
Accuracy: 2 mm
Response Time: 5ms
Connection : USB2.0 , USB3.0
Supported OS systems: Windows/Android/Linux /Mac



Android Specification



Andriod 6.0
CPU: QuadCore ARM A53
DDR3 - 1G
8G







Input Ports

HDMI-In x2
VGA In x1
USB x6
Touch USBx2
OPS Slotx1
RJ45x1
MIC In x1
WIFI Antenna x1



Output Ports

HDMI x1
RS232 x1
VGA x1
AUDIO OUTx1
Speakers 15W x2
Indicator Lights Device Indicator light x1; Built-in OPS indicator light x1
Input Voltage AC(90~240)V-50/60HZ
Power Power Standby:<1W
Rated Power:<190W
working temperature 0°C~40°C







Accessories

Power Cord 3 Meters x 1
HDMI Cable 5 Meters x 1
Touch USB Cable 1.5 Meters x 1
RS232 Cable 5 Meters x 1
Installation Guide x 1
Styplus Pen x 3
Pointer x 1
Software CD x 1

8G 102" All In One Interactive Whiteboard With 10 Touch Points 58G 102" All In One Interactive Whiteboard With 10 Touch Points 68G 102" All In One Interactive Whiteboard With 10 Touch Points 78G 102" All In One Interactive Whiteboard With 10 Touch Points 88G 102" All In One Interactive Whiteboard With 10 Touch Points 98G 102" All In One Interactive Whiteboard With 10 Touch Points 10
