Electronic DTV Optical Interactive Whiteboard 2 Touch Points
Product Details
| Touch Technology: | DVT Optical Technology | Touch Point: | 2 Touch Points/ 10 Touch Points |
|---|---|---|---|
| Resolution: | 32768*32768 | Sampling Rate: | 120 Fps |
| Effect Touch Object Size: | >8mm | Touch Method: | Finger Or Any Opaque Objects |
| Positioning Accuracy: | <2mm | Connecting Port: | USB2.0 USB3.0 |
| Operating System: | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android | Power Supply: | USB Power Supply DC 4.6V- 5.0V <1W ( 100mA At 5V) |
| Storage: | Temperature: -30°C~60°C Humidity: 0%~95% | Operation: | Temperature: -10°C~45°C Humidity: 10%~90% |
| Installation: | Wall Mounted, Cabinets, Mobile Stand (optional) | Color: | Black(other Colors Optional ),Gray,Silver/Black |
| Hotkey: | With Hotkeys Or Without | Other Name: | Multitouch Electronic Interactive Whiteboard With Hotkey |
| Whiteboard Type: | Interactive Whiteboard,Electronic Whiteboard,Standard Whiteboard | Folded: | No |
| Type: | Whiteboard | Touch Points: | 10 Points,6 Or More,6,32 Points,2 |
| Product Name: | Interactive Smart Board,75 Inch Full HD Electronic Teaching Whiteboard,interactive Whiteboard,New Portable Usb Wireless Infrared Touch Screen Interactive Whiteboard,China Interactive Whiteboard 10 Points Infrared Touch Board Smart | Application: | School Teaching,education,Classroom Education For School,business,presentation |
| Warranty: | 3 Years | Material: | Aluminum Alloy Frame,Nano+Aluminum Honeycomb/ceramic,Aluminum Frame + Rolled-Cold Steel |
| Technology: | Infrared,Infrared Interactive Whiteboard | Name: | Stand Digital Smart Board,infrared Interactive Whiteboard,84 Inch Lcd Interactive Tv Touch Screen Whiteboard With Wifi Mobile St |
| Function: | Projector,tablet,For Education Or Trading | Aspect Radio: | 16:10, 16:9... |
| Interface: | USB, VGA, RS232, HDMI | Screen Size: | 65",75",86", 98" |
| Multi-Touch: | Up To 40 Points | Hotkeys: | Two Sides Hotkeys |
| Shipping Way: | Sea Shipping Air Freight Truck Freight | Touch Points: | 20 Points |
| Warranty: | 1 Year | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Andriod/Windows/Linux/Mac.etc. | Accuracy: | 2mm |
| Mobile Stand: | Optional | Colors: | Black Or OEM |
| Highlight |
DTV Optical Interactive Whiteboard,2 Touch Points Optical Interactive Whiteboard |
||
Product Description

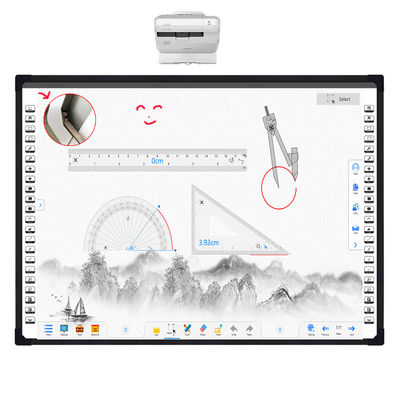

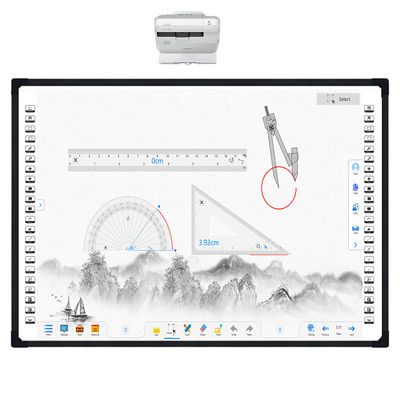

Iboard Electronic DTV Optical Interactive Touch Smart Board Interactive Whiteboard For Education
Series: IB-2C Two camera DTV optical interative whiteboard
Series:IB-4C Four camera DVT optical interactive whiteboard
Ⅰ. Description Of Interactive Whiteboard
An interactive whiteboard, also known as interactive board or smart board, is a large interactive display board in the form factor of a whiteboard. It
can either be a standalone touchscreen computer used independently to perform tasks and operations, or a connectable apparatus used as a touchpad to control computers from a projector. They are used in a variety of settings, including classrooms at all levels of education, in corporate board rooms and work groups, in training rooms for professional sports coaching, in broadcasting studios, and others.
Ⅱ. Product Features

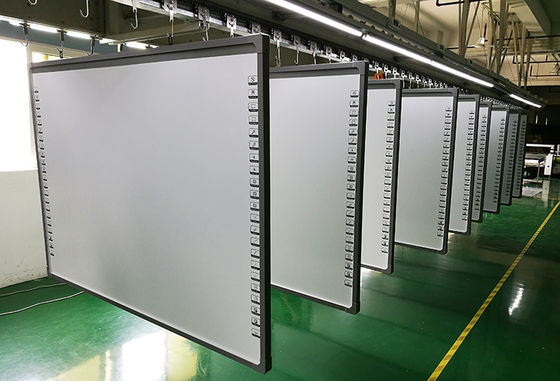

1. We are factories with more than 14 years' exprience on making OEM/ODM interactive smart whiteboard, our interactive board has been sold to more than 80 countries, we have own developed interactive whiteboard software Drawview, support multi-languages, easy use and have abundant teaching tools. Prdouction capability for IWB is more than 10,000 pieces per month.
2. DVT Optical technology: IB-2C Series use two cameras and support dual touch, IB-4C Series use four cameras and support maximun at 10 touch.
3. Board panel: Nanometer high polymer/Ceramic (Porcelain) surface+ XPS/Aluminum honeycomb middle
4. Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.
5. Support gesture recognition in our smart board software
6. Main IWB size include: 84" 85" 92" , other customized sizes are also avaialble when needs.
SPECIFICATION
| Technology | Optical Imaging Touch Technology |
| Touch Point | Dual touch |
| Sampling Rate | 120 fps |
| Respond Time | ≈8ms |
| Resolution | 32768 x 32768 |
| Touch Accuracy | 3 mm |
| Input Method | Finger or any other opaque object |
| Calibration | 4-point, 16-point, 25-point calibration, no drift |
| Operating System |
Windows XP/Vista/7/8/8.1/10, Linux, Android(V4.0 or above) Mac OSX(V10.4 or above) |
| Interface Type | USB2.0 (Full Speed, plug and play) |
| Power Requirements | DC5V±5% @400mA |
| Power Consumption | Average power consumption<2.3W, @5V |
| Operating Temperature | 0℃～55℃ |
| Storage Temperature | -25℃～75℃ |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 10% to 90% RH, non-condensing |
SIZES:
For IB-2C Seires:
| Model | IB-2C85 | IB-2C92 |
| Overall Size (mm) | 1754 x 1289 | 2046 x 1159 |
| Overall Diagonal (inch) | 85 | 92 |
| Aspect Ratio | 4:3 | 16:9 |
| Board Weight (kg) | 19.5 | 20 |
For IB-4C Seires:
| Model | IB-4C84 |
| Overall Size (mm) | 1754 x 1261 |
| Overall Diagonal (inch) | 85 |
| Aspect Ratio | 4:3 |
| Board Weight (kg) | 19 |
| Gross Weight (kg) | 30 |
| Product Dimension (mm) | 1754 x 1261x39.5 |
| Packed Size (mm) | 1875x1380 x90 |
Other Size is also available if need customized sizes !
