| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard/ OEM |
| Certification: | CE FCC Rohs |
| Model Number: | TE-YL-75 |
| Minimum Order Quantity: | 2 pieces |
| Price: | USD629-USD1400 per piece |
| Packaging Details: | Export Cartons or wooden case optional |
| Delivery Time: | 17 working days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 pieces per month |
| Screen Size: | 75 Inch, 65 / 86/98/110 Inch OPTIONAL | Touch Points: | 20-50 Points |
|---|---|---|---|
| Color: | Black, Grey, Silver (Other Colors Optional ) | Application: | Educational Teaching, Meeting, Training, Home |
| Operating System: | Android, Windows, Linux... | Brightness: | 350-450 Cd/m2 |
| Interface: | USB2.0/3.0,Type-C/RS232/RJ45,DP,HDMI... | Material: | Aluminum Alloy Frame |
| Certificates: | CE, ROHS, FCC... | Camera&mic: | Optional Built In Or USB Connected |

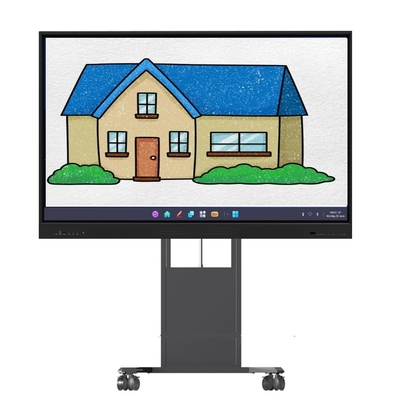

| Mobile Stand: | Optional With (eletronic) Mobile Stand | Screen Share: | Built In |
| OPS Computer: | Optional | Microphone: | Opional |
| Panel: | A Grade AG Panel |

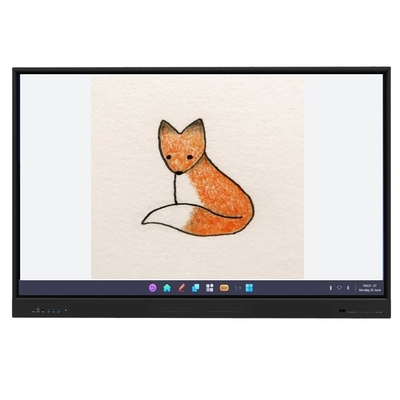

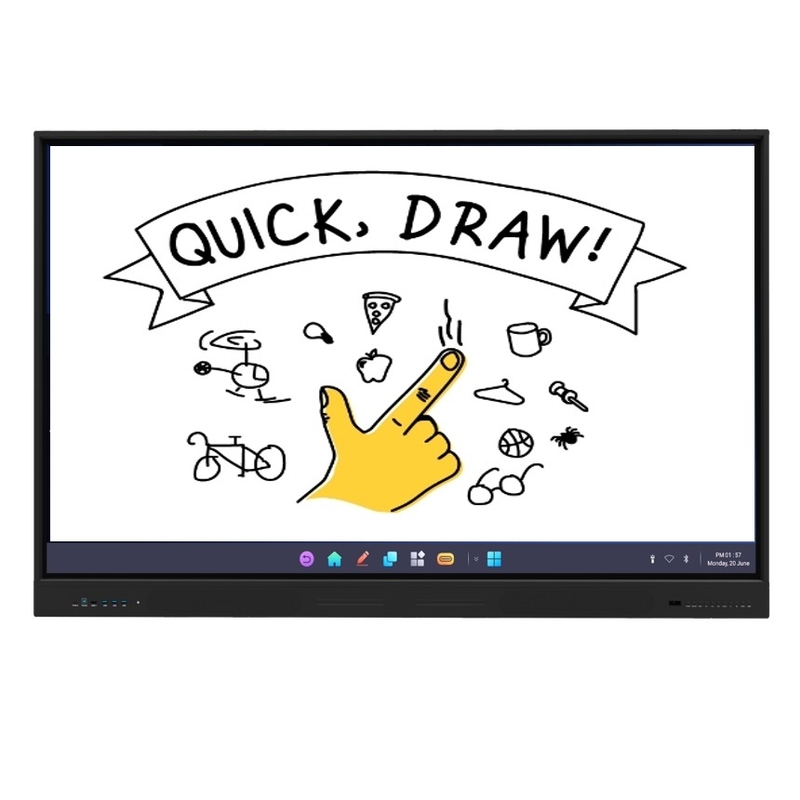

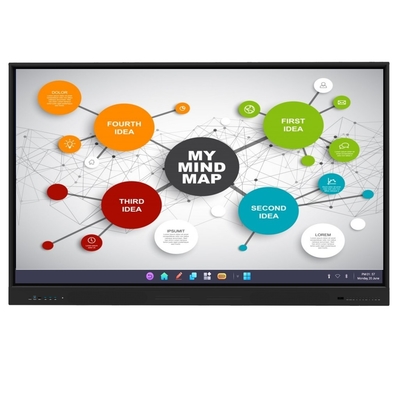

75 inch All in one interactive whiteboard Smart board for School Office Conference
Description of 75 inch Smart boards
Interactive Touch Solutions for School Classroom, office, conference presentation, Trainning, annotation ect.
Built in Android ( 4G+32G, 8G+64G/128G, 16G+256G), come with OPS slot for windows system. Camera& mic optional, mobile stands/ different color for option.
We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one. With various experience on making OEM/ODM interactive flat panels and interactive whiteboard, products sold to more than 80 countires in the world.
We have Own developed Infrared technology and whiteboard software for free;
SKD support;
Customized service for UI/ logo...
Easy for after-sales service;
Good quality control;
Firmware OTA upgrades for lifetime.
Specifecation of Interactive Touch Screen Monitor
| Model | TE-YL-65 | TE-YL-75 | TE-YL-86 ( Even 98/ 110" optional) | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 450 cd/㎡ | 450 cd/㎡ | 450 cd/㎡ | |
| Contrast | 1200:1 or higher | 1200:1 or higher | 1200:1 or higher | |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ | |||
|
Android Specification |
Android 11.0-13.0 | |||
| Ram: 4G/8G/16G | ||||
| Storage: 32G/64G/128G/256G | ||||
| I/O Ports | Please contact us to know more detail specification | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,...etc | |||
| Built in camera | 13/48 Mega Pixels (Optional) | |||
| Built in Microphone | 6/8 array microphones (Optional) | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
|
Touch Parameter |
Touch Technology | Infared Touch | ||
| Touch Points | 20 touch points for both android & windows | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <2mm | |||
| Response Time | 4~8ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB(full speed) | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||
Remark: For more details of the specification , please contact us to know more detials.
