Interactive Flat Panel 98 Inch Smart Touch Screen Display For School And Corporate
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-YL-98 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | USD1350-USD2200 per piece |
| Packaging Details: | Carton Package, Wooden case or wooden crate optional |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 7000 units per month |
|
Detail Information |
|||
| Color: | Black, Grey, White... | Screen Size: | 98 Inch, 65 /75/ 86 Inch Available |
|---|---|---|---|
| Product Name: | 98 Inch Interactive Flat Panel Display, Touch Screen Monitors | Touch Points: | 20-50 Points |
| Application: | School Teaching, Training, Office/Web... | Operating System: | Android, Windows, Linux... |
| Brightness: | 350-450 Cd/m2 | Viewing Angle: | 178 H/178 V |
| Screen Type: | DLED | Ram: | 4G/8G/16G/32G |
| Rom: | 32G/64G/128G/256G/512G | Dual System: | Support |
| Aspect Radio: | 16:9... | Interface: | USB, VGA, RS232, HDMI,DP... |
| Shipping Way: | Sea Shipping Air Freight Truck Freight | Warranty: | 1 Year, Up To 3 Years |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Wireless Dongle: | Optional | Camera& Mic: | Optional Built In Or External |
| OPS Computer: | Optional | ||
| Highlight: | School Interactive Flat Panel,Smart Touch screen Interactive Flat Panel,98 inch Interactive Flat Panel |
||
Product Description

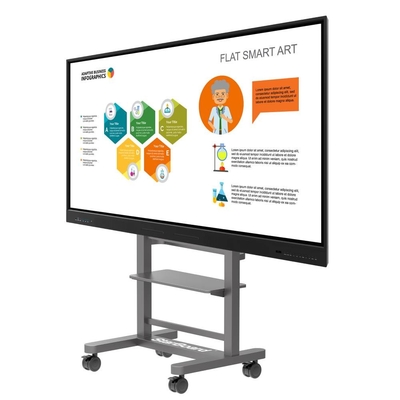

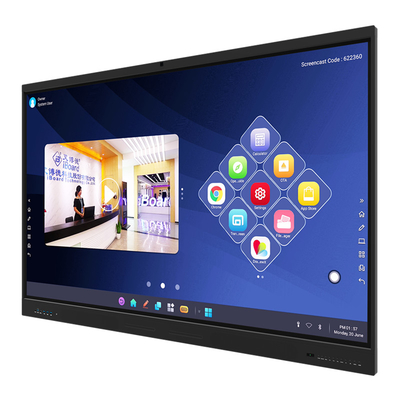

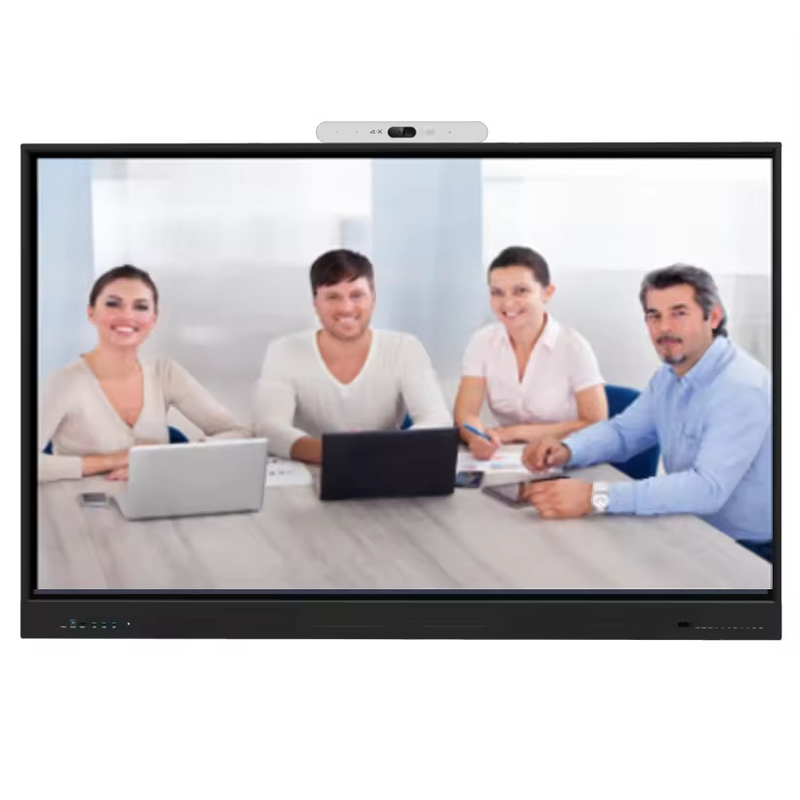

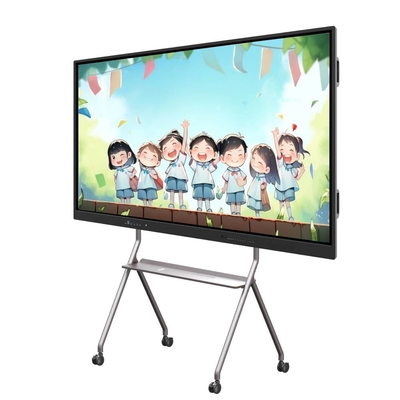

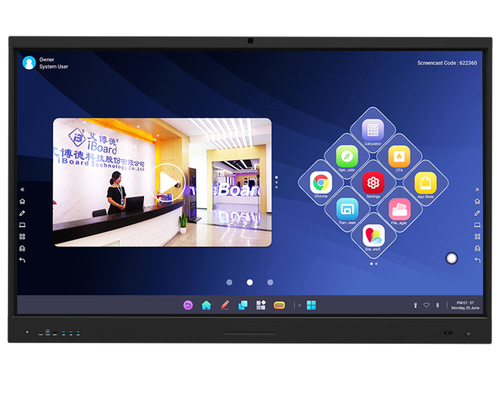

98 inch Interactive Flat Panel Smart Touch screen Display
for School and Corporate
iBoard, a direct factory with over 18 years interactive touch solution experience, our 98 inch Interactive Flat Panel display/ Smart Touch screens satisfied the needs for Local Meetings, Remote Collaboration and School Education, it is integrated the functions of projector, whiteboard, advertising signage, computer, microphone, audio, camera, etc.
Advanced Features
Panel has two WIFI modules.
USB-C on the front support : touch , data, video projection and charging, one cable is enough when connect to a PC with type-C port.
One LAN in (RJ45-in) and one LAN out (RJ45-out) to provide internet to external device
iMagic MDM: an iBoard developed device management software to manage your IFPDs, support install/uninstall apps of IFPD remotely.
Support Web navigator and video playback.
Available size: 55", 65", 75", 86", 98", 105", 110"
Color: Standard in Black, Grey, white, silver... support customzied
OEM service support.
Standard Accesorries Magnetic Pens*2, HDMI Cable*1, Touch USB Cable*1, Power Cable*1, Software download card*1, Remoter*1, Wall mounting bracket *1, also support customized.
Built in own designed whiteboard software, unique with own R&D team support, not the same as the public version.
Mobile stand optional.
Camera and mic, built in or external, optional.
OPS computer, optional.
Wireless screen share dongle, optional.
Spec. Ref.
| Standard Model | TE-YL-98 | |||
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | |||
| Brightness | 350 cd/㎡ | |||
| Contrast | 1200:1 or higher | |||
| Screen Size(mm) | 2158.8 x 1214.4mm | |||
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | |||
| Panel Response Time | 8ms | |||
| Suport Resolution | 4K Ultra HD 3840x2160 | |||
| AG Tempered Glass | 4mm thickness, 7H hardness | |||
| Front Button | POWER/SOURE/MENU/VOL-/VOL+/REC/A.BLUE/PC/ES/RATIO/HOME | |||
| Light Sensor | Yes, it is an integrated brightness detector that automatically adjusts the brightness of the panel according to ambient light. | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Audio | Speakers: 2x 15W, 2x20W+1X20W optional | |||
| Power Range | Standby Power<1W | |||
| Rated Power<550W | ||||
|
Touch Parameter |
Touch Technology | Infared Touch | ||
| Touch Points | 20/50 touch points for Android &Windows | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <2mm | |||
| Response Time | 5ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB 2.0& 3.0 | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||
| Accessories | Magnetic Pens*2, HDMI Cable*1, Touch USB Cable*1, Power Cable*1, Software download card*1, Remoter*1, Wall mounting bracket *1 | |||
| Product sizes(mm) | 2215.6x1338.5x102.7 | |||
| Carton size(mm) (LX HX W) | 2350x1500x280 | |||
| Weights (KGS) | 94/112kgs | |||
For more detail or request, Please feel free to check with our sales team, osd019@touch-easy,com.
