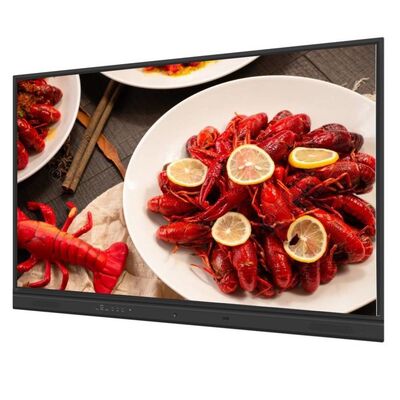

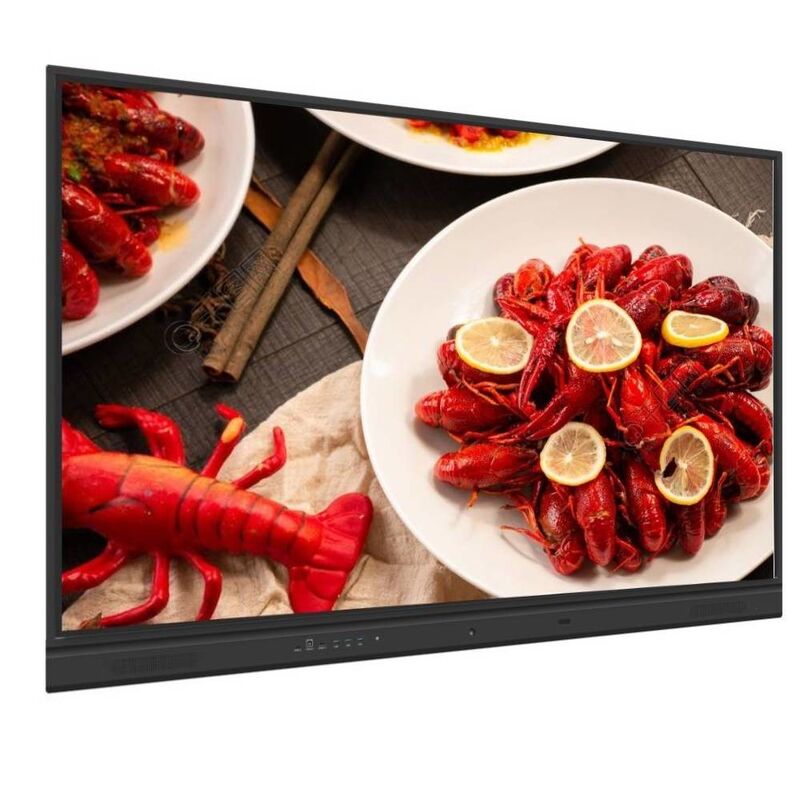

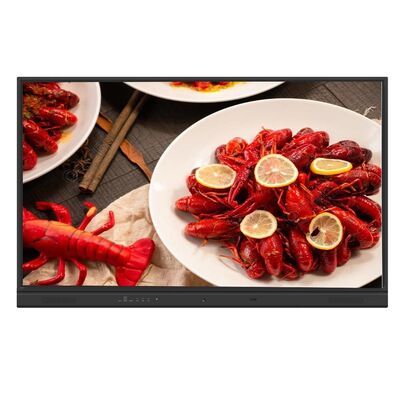

LCD Smart Board Android 16 55 65 75 86 98 Inch 50 Touch Points Whiteboard TV Screen Monitor
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-YL-65 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | Carton Package |
| Delivery Time: | 20 days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000 units per month |
|
Detail Information |
|||
| Touch Points: | 10/20/40/50 Points Optional | Applications: | School/students/education/training/business Center,etc. |
|---|---|---|---|
| Hang Type: | Wall Mounted Or Movable Stand | Size: | 55/65/75/86/98/110 Inch |
| Interface: | USB, VGA, RS232, HDMI | Multi-Touch: | Up To 50 Points |
| Hotkeys: | Two Sides Hotkeys Optional On Glass | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Warranty: | 1 Year | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Andriod/Windows/Linux/Mac.etc. | Accuracy: | 2mm |
| Mobile Stand: | Optional | Colors: | Black Or OEM |
| Highlight: | Android 13 LCD Smart Board,65 Inch Whiteboard TV Monitor,98 Inch Whiteboard TV Monitor |
||
Product Description
LCD Smart Board Android 13 55 65 75 86 98 Inch 40 Touch Points Whiteboard TV Screen Monitor USB TYPE-C Display For Kids
Advantages points:
1.IBOARD has been working as a touch solution provider since year 2007, with experiences in OEM and ODM for products logo/package/software,etc.
2. Touch Technology: infrared touch ,supporting multi finger pen touch points for 10/20/40/50 points for android/windows os
3.Size available:55/65/75/86/98/105/110 inch
4. Supporting wireless share upto 9 screens at one time for phone/pad/laptop/IFPD,etc.
5.With iboard whiteboard software for annotation/record/share/meeting room,etc.
Specification sheet:
| Item | LCD Smart Board Android 13 55 65 75 86 98 Inch 40 Touch Points Whiteboard TV Screen Monitor USB TYPE-C Display For Kids |
| Model | TE-YL-65 |
| Display size | 1428.5*803.5mm |
| Display type | DLED backlight display |
| Touch technology | Infrared touch |
| Resolution | 3840*2160 4K |
| Contrast | 4000:1 |
| View angle | 178° |
| Glass | 4mm thickness, 7H hardness tempered glass |
| Android os |
11 or 13 optional, 4+32G Dual 5.0GHz WiFi Moudle , one for WIFI, one for hotspot. Ethernet 10/100/1000 network card with RJ45 connector.
|
| Input ports |
Rear: 2*HDMI2.0, 1*VGA&AUDIO IN, 1*YPBPR, 2*USB 3.0, 1*USB2.0, 1*TOUCH-USB, 1*TF card, 1*RS232, 1*RJ45 IN, 1*AV IN, 1*MIC IN, 1*DP, 1*Type C(only for USB), 1*OPS SLOT Front: 1*HDMI2.0, 1*TOUCH USB, 3*USB3.0, TYPE-C (Support Touch, Data, Video and Audio transfer, charging(standard 15W, optional 65W) |
| Output ports | 1*HDMI-out, 1*COAXIAL, 1*Earphone, 1*RJ45 OUT, 1*AV OUT |
| Front keys | 8keys (POWER,SOURCE,MENU,VOL-,VOL+,HOME,ENTER, ES) |
| Camera and microphone | optional to be built in for 8mp/13mp/48mp camera or 4/6/8 mic |
| Light sensor | Integrated light sensor for brightness detector that automatically adjusts the brightness of the panel according to ambient light. |
| Speaker | 2*15W |
| Response time | 6ms |
| Accessories | Touch pen*2, Touch usb cale*1, HDMI cable*1,power supply cable*1, remote controller*1, wall mounted bracket*1 set, movable stand (optional) |
| Packing size | 1646*225*1050mm |
| N.W.(kgs) | 38 |
| G.W.(kgs) | 52 |
Powerful whiteboard software, supporting zoom in ,zoom out, PPT presentation, annotation,share, record and meeting room for school/business.
Packing: 1pc/carton,but optional to be extra packed into wooden crate or pallet
