| Place of Origin: | CHINA |
|---|---|
| Certification: | CE/FCC/ROHS |
| Model Number: | TE-XP-86 |
| Minimum Order Quantity: | 1 Piece |
| Price: | USD800 - USD1800/unit |
| Packaging Details: | Carton or wooden packaging, oem available |
| Delivery Time: | 15-25 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 units/month |

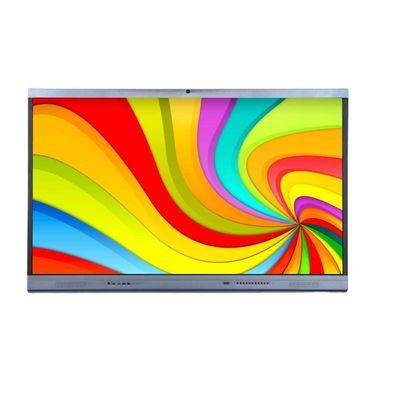

| Brand Name: | IBoard Or OEM | Product Name: | 86'' Infrared Interactive Flat Panel |
|---|---|---|---|
| Color: | Black And Silver | Material: | Aluminium Frame |
| Built-in Camera: | Support 2K Or 4K (Optional) | Touch Technology: | Infrared Touch |
| Touch Points: | 10 Points Or More | Support OPS: | One OPS Slot (Optional) |
| High Light: | LED TFT Wall Mounted Interactive Whiteboard,Wall Mounted Interactive Whiteboard Android 8,FCC Infrared Interactive Flat Panel |
||
| DISPLAY | |||
| Screen Type | TFT LED | Display Ratio | 16:9 |
| Resolution | 3840(H) x 2160(V) | Display Area | 1895.04*1065.96mm(85.6 inch) |
| Brightness | 350 cd/m3 | Color Depth | 10bit(R), 1.07Billon colors |
| Contrast | 1200:1 | Life Time | 50,000 Hrs |
| Response Time | 6.5 ms | ||
| ANDROID SYSTEM | |||
| Android Version | Android 8.0 | CPU |
2*ARM Cortex-A73 2*ARM Cortex-A53 |
| DISPLAY CONNECTION PORTS | |||
| Input Ports (Front) |
HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC) USB-C(optional) |
Output Ports(back) |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
| Input Ports (Back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1 |
||
|
Built-in Camera |
Support 2K or 4K |
| Built-in Speakers | 2*15W |
| Sensing Type | Infrared Touch | Writing Style | Finger; Stylus,any opaque object |
| Positioning resolution | 32767 x 32767 | Communication Mode | Full-speed USB (Plug and Play) |
| Scanning Speed | 4ms | Surface Glass | 4mm tempered Glass |
| Response size | ≥Φ3mm | OS support | Android, Windows, Linux, Mac, Chrome |
| INTERNET | |||
| Ethernet | 802.3 10/100 | Wifi |
IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Or IEEE802.11an 2.4GHz |
| Bluetooth | 4.2 | ||

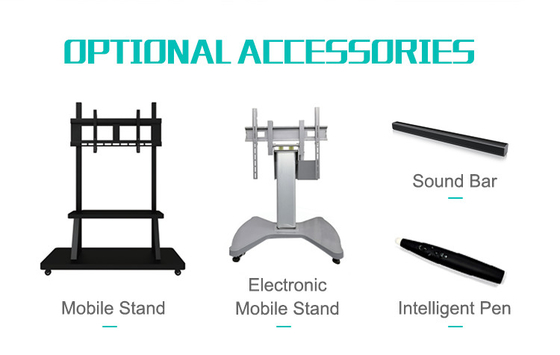

| ACCESSORIES |
| Touch pen x 2 |
| Touch USB (A-B 1.5M) x 1 |
| HDMI cable(2M) x 1 |
| Power cable(1.8M) x 1 |
| Remote controller x 1 |
Our products meet the certification requirements of most of countries in the world and have complete certificates.
Exhibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 12 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 12 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
