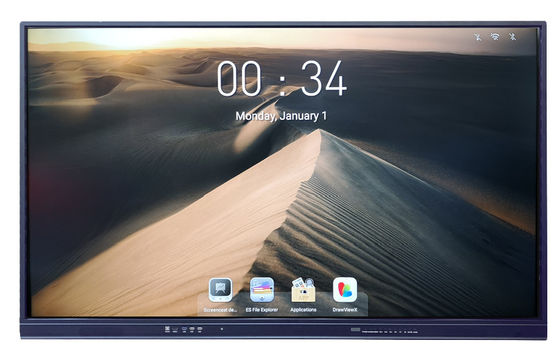

IR Interactive Flat Panel Digital Board 55 Inch 20 Touch Points 350cd/M2

Basic Information
Place of Origin: CHINA
Brand Name: iBoard
Certification: CE/FCC/ROHS
Model Number: QS-55
Minimum Order Quantity: 1 Piece
Price: USD900 - USD1800/unit
Packaging Details: Carton or wooden packaging, oem available
Delivery Time: 15-30 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 units/month
Brand Name: IBoard Or OEM Screen Size: 55 Inch
Color: Black Material: Aluminium Frame
Touch Points: 10 Points To 20 Points Support OPS: One OPS Slot (Optional)
Lifetime: 50000 Hrs Interface: USB2.0/3.0, HDMI Etc.
Highlight:

350cd/M2 IR Interactive Flat Panel

,

Interactive Flat Panel 3840x2160

,

IBoard HDMI Interactive Touch Panel

Interactive Flat Panel 55 Inches All-in-One PC Android 8 for School Classroom

Specifications of IR Touch Smart board 4K Display

Display
Screen Type TFT LED Display Ratio 16:9
Display Area

1486*924*102

View Angle 178°
Resolution 3840(H) x 2160(V) Response Time 6.5 ms
Brightness 350 cd/m2 Color Depth 10bit(R), 1.07Billon colors
Contrast 4000:1 Life Time 50,000 Hrs
Glass 4mm acid-etched tempered glass
TV SYSTEM
Connection N/A Sound System D/K, B/G, I, M
Video System PAL, NTSC, SECAM Channel N/A
Sound/SPeaker features
Speaker Type Built-In Speaker output 10W * 2
Audio Stereo Balance, Auto volume control, surround sound
android system
Android Version Android 8.0 GPU ARM Mali-51450MHz
CPU

2*ARM Cortex-A73

2*ARM Cortex-A53

RAM 4G
Dominant Frequency 1.5G ROM 32G
DISPLAY CONNECTION PORTS
Input Ports (Front) HDMI 1.4*1;USB Touch Port (B)*1, USB2.0*3(multi use for Android,OPS and external PC) Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1

Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1, DP*1

TOUCH SYSTEM
Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Positioning Accuracy ≤3mm

OS and points support

(driver free)

Windows 7/8/10, 10 points

Android 4.0 and up, 10 points

Mac 10.1 to 11, 1 point

Linux ubuntu 14.04 ~18.04,, 10 points

Internet
Ethernet 802.3 10/100 Wifi IEEE 802.11 a/b/g/n/ac, 802.3, 802.3u
Bluetooth 4.2 or Later


IR Interactive Flat Panel Digital Board 55 Inch 20 Touch Points 350cd/M2 0IR Interactive Flat Panel Digital Board 55 Inch 20 Touch Points 350cd/M2 1IR Interactive Flat Panel Digital Board 55 Inch 20 Touch Points 350cd/M2 2IR Interactive Flat Panel Digital Board 55 Inch 20 Touch Points 350cd/M2 3IR Interactive Flat Panel Digital Board 55 Inch 20 Touch Points 350cd/M2 4IR Interactive Flat Panel Digital Board 55 Inch 20 Touch Points 350cd/M2 5IR Interactive Flat Panel Digital Board 55 Inch 20 Touch Points 350cd/M2 6



Certificates

Our products meet the certification requirements of most of countries in the world and have complete certificates.

IR Interactive Flat Panel Digital Board 55 Inch 20 Touch Points 350cd/M2 7

Exhibition:

IR Interactive Flat Panel Digital Board 55 Inch 20 Touch Points 350cd/M2 8





























































































FAQ:

1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 15 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
