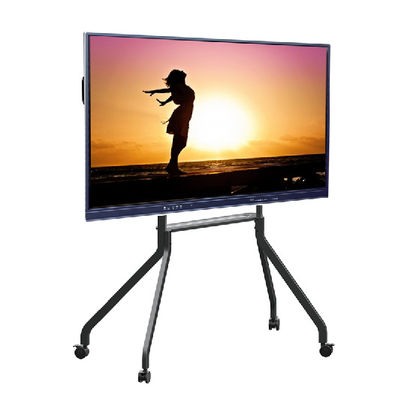

350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points

Basic Information
Place of Origin: CHINA
Brand Name: iBoard
Certification: CE/FCC/ROHS
Model Number: LE-QS-65
Minimum Order Quantity: 1 Piece
Price: USD900 - USD1800/unit
Packaging Details: Carton or wooden packaging, oem available
Delivery Time: 10-30 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 units/month
Color: Black Material: Aluminium Frame
RAM: 4G ROM: 32G
Touch Ways: Finger Or Any Opaque Objects Touch Points: 10 Points/20 Points
Support OPS: One OPS Slot (Optional) Lifetime: 50000 Hrs
High Light:

FCC Interactive Flat Panel

,

Interactive Flat Panel 3840x2160

,

350cd/M2 Interactive Digital Board

Interactive Flat Panel 65 inch IR Touch Smartboard 4K Display All-in-One PC Android8 for School Classroom

Specifications

Display
Screen Type TFT LED Display Ratio 16:9
Display Area

1428.5*803.5 mm(64.53 inch)

View Angle 178°
Resolution 3840(H) x 2160(V) Response Time 6.5 ms
Brightness 350 cd/m3 Color Depth 10bit(R), 1.07Billon colors
Contrast 4000:1 Life Time 50,000 Hrs
Glass 4mm acid-etched tempered glass
TV SYSTEM
Connection N/A Sound System D/K, B/G, I, M
Video System PAL, NTSC, SECAM Channel N/A
Sound/SPeaker features
Speaker Type Built-In Speaker output 10W * 2
Audio Stereo Balance, Auto volume control, surround sound
android system
Android Version Android 8.0 GPU ARM Mali-51450MHz
CPU

2*ARM Cortex-A73

2*ARM Cortex-A53

RAM 4G
Dominant Frequency 1.5G ROM 32G
DISPLAY CONNECTION PORTS
Input Ports (Front) HDMI 1.4*1;USB Touch Port (B)*1, USB2.0*3(multi use for Android,OPS and external PC) Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1

Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1, DP*1

TOUCH SYSTEM
Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Positioning Accuracy ≤3mm

OS and points support

(driver free)

Windows 7/8/10, 10 points

Android 4.0 and up, 10 points

Mac 10.1 to 11, 1 point

Linux ubuntu 14.04 ~18.04,, 10 points

Internet
Ethernet 802.3 10/100 Wifi IEEE 802.11 a/b/g/n/ac, 802.3, 802.3u
Bluetooth 4.2 or Later


Interactive display for training, writing annotation, camera display, connecting to an external PC, playing multimedia audio and video.

Newly design, Ultra Slim Frame, with the newe ultra-slim frame and modern styling frame width is only 2.04cm, maximising the area used for touch input and displaying vibrant content. Bring the ultimate visual experience.

High-speed multi-point interactive touch technology supporting up to 20 touch points. Using the best Infrared touch sensors, interactions are smooth and fast.

OPS PC module compliant solt support the Intel OPS(Open Pluggable Specification) standard allowing users to add PC level functionality with ease. (It is optional for customers, need extra cost.)

TE-QS-65

 350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 0350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 1350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 2350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 3350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 4350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 5



ABOUT US

--Company

350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 6



Shenzhen iBoard Technology Co., Ltd founded in 2007. The company is located in Shenzhen, Guangdong Province, China. It has 14 years of experience in the education informationization industry. We are a smart education solution provider and operation service provider, specializing in R&D, production and sales of smart education cloud platform, interactive teaching software, interactive whiteboard software; also sales interactive whiteboard, laser projector, all-in-one multimedia device, interactive LED display, advertising display and digital signage etc.



350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 7





--Certificates

Our products meet the certification requirements of most of countries in the world and have complete certificates.





350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 8





--Factory

Our factory is 23000, can meet the needs of large orders. We have rich experience in OEM/ODM service for overseas customers. And our products are sold to more than 80 countries. Strict production process ensures that products are carefully debugged when they leave the factory. To ensure the perfect delivery to the customer.



350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 9







350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 10





















350cd/M2 Interactive Flat Panel Digital Board 65 Inch Touch Monitor 4K 20 Touch Points 11
