98 Inch 4K All In One LCD Smart Board Interactive Flat Panel Display

Basic Information
Place of Origin: Guang Dong, China
Brand Name: Support OEM or iBoard
Certification: CE, RoHS
Model Number: TE-YL-98
Minimum Order Quantity: 1 piece
Price: USD3500
Packaging Details: Carton packing, 2395x1455x260mm
Delivery Time: 21 work days
Payment Terms: T/T, Western Union, L/C,
Supply Ability: 1000pcs per month
Size: 98 Inch Frame Color: Black
Android Version: Android 8.0 4+32G Touch Point: Android 10 Touch, Windows 20 Touch
Glass: Tempered AG Glass Speaker: 15W*2
DP: Yes Wifi: 2.4G/5G With BT
High Light:

AG Glass LCD Smart Board

,

LCD Smart Board 350cd/m2

,

550W Interactive Flat Panel Display

98 inch 4K LCD Smart Board Interactive Touch Screen Monitor Android 8.0 4G RAM 32G storage

ANDROID SPECIFICATION
Version: Android 8.0 with 8G RAM and 32G Storage
CPU/GPU: 2 x ARM Cortex-A73@1.5GHz, 2 x ARM Cortex-A53@1.5GHz, MaliG51

TOUCH PARAMETER
Touch technology: Infrared touch 10 touch for Android, 20 touch for Windows
Operating system: Windows/Mac/Linux/Android

PRODUCT SPECIFICATION
Model TE-YL-98
Screen size
98”
Display backlight
D-LED backlight
Resolution
3840 x 2160 (4K)
Aspect ratio
16:9
View Angle
178
Screen size
2158.8*1214.4 mm
Contrast
1200:1
Brightness
350cd/m2
Colour
10bit, 1.07 billion colours
Support resolution
1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60Hz
Rated power
< 550W
Standby power
< 1W
Voltage
AC (100~240)V-50/60Hz
Input ports
- Back: Back: HDMI2.0*2, DP*1, VGA-IN*1, VGA Audio-input*1, YPBPR*1, AV-in*1, RS232 Series*1,USB3.0*1, USB2.0*1 , RJ45-in*1, WIFI(5G)*1 (with two antenna), SD Card*1, OPS Slot(Max support 3840*2160/60Hz)*1, Touch USB B Type*1

- Front: USB2.0x3 (support both PC and Android), Touch USBx1, HDMIX1
Output ports
HDMI-out*1; SPDIF*1, Earphone*1, AV-Out*1
Built-in speakers
15W x 2
Accessories
Wall mountx1, Power cable x 1; Touch USB x 1; HDMI cable x 1; Pen x 2; Remote control x 1, Software download noticex1
Product dimension(mm)

2215.6*1338.5x89.7

Net weight(kgs)
94
Gross Weight(kgs)
114
Carton size(mm) 2395x1455x260

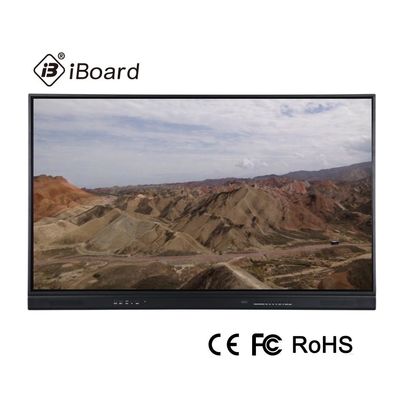

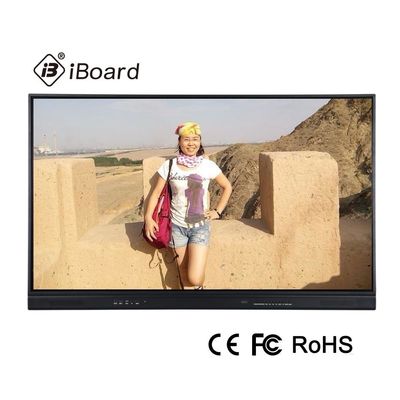

Product Photos
