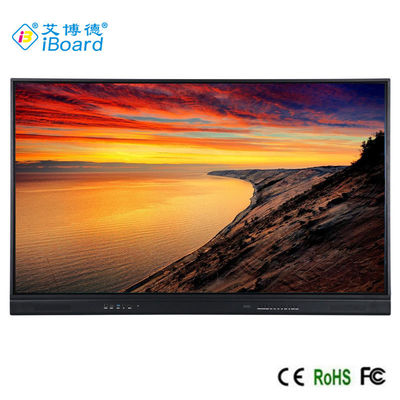

Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Product Details
| Brand Name: | IBoard Or OEM | Material: | Aluminium Frame |
|---|---|---|---|
| Screen Type: | LED | Brightness: | 350cd/m² |
| Touch Points: | 10 Points To 20 Points | Support OPS: | One OPS Slot (Optional) |
| Lifetime: | 50000 Hrs | Interface: | USB2.0/3.0, HDMI Etc. |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight |
Android8 Smart Board 86 Inch,32G Interactive Panel For Education,Android8 Interactive Panel For Education |
||
Product Description
Interactive Flat Panel 86 inch IR Touch Smartboard 4K Display All-in-One PC Android8 for School Classroom
| Display | |||||
| Screen Type | TFT LED | Display Ratio | 16:9 | ||
| Display Area | 1895.04*1065.96mm(85.6 inch) | View Angle | 178° | ||
| Resolution | 3840(H) x 2160(V) | Response Time | 6.5 ms | ||
| Brightness | 350 cd/m3 | Color Depth | 10bit(R), 1.07Billon colors | ||
| Contrast | 1200:1 | Life Time | 50,000 Hrs | ||
|
|||||
| TV SYSTEM | |||||
| Connection | N/A | Sound System | D/K, B/G, I, M | ||
| Video System | PAL, NTSC, SECAM | Channel | N/A | ||
| Sound/SPeaker features | |||||
| Speaker Type | Built-In | Speaker output | 15W * 2 | ||
| Audio Stereo | Balance, Auto volume control, surround sound | ||||
| android system | |||||
| Android Version | Android 11.0 | GPU | G52*8 | ||
| CPU |
CPU A73*4+A53*4
|
RAM | 2G/4G/8G | ||
| Dominant Frequency | 2.28GHz | ROM | 16G/32G/64G | ||
| DISPLAY CONNECTION PORTS | |||||
| Input Ports (Front) | HDMI 1.4*1；USB Touch Port (B)*1, USB2.0*3(multi use for Android,OPS and external PC) | Output Ports(back) |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
||
| Input Ports (Back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1, DP*1 |
||||
| TOUCH SYSTEM | |||||
| Sensing Type | Infrared Touch | Writing Style | Finger; Stylus,any opaque object | ||
| Positioning resolution | 32767 x 32767 | Communication Mode | Full-speed USB (Plug and Play) | ||
| Scanning Speed | 4ms | Surface Glass | 4mm tempered Glass | ||
| Positioning Accuracy | ≤3mm |
OS and points support (driver free) |
Windows 7/8/10, 10 points Android 4.0 and up, 10 points Mac 10.1 to 11, 1 point Linux ubuntu 14.04 ~18.04,, 10 points |
||
| Internet | |||||
| Ethernet | 802.3 10/100 | Wifi | IEEE 802.11 a/b/g/n/ac, 802.3, 802.3u | ||
| Bluetooth | 4.2 or Later | ||||
TE-YL5-86
Certificates
Our products meet the certification requirements of most of countries in the world and have complete certificates.
Exhibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 15 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
