| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard/ OEM |
| Certification: | CE FCC ROHS |
| Model Number: | LE |
| Minimum Order Quantity: | 10 pieces |
| Price: | USD50-USD2000 per pieces |
| Packaging Details: | SKD export cartons or plastic pipe, or export carton for the IR touch frame touch screens |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 pieces per month |
| Type: | Infrared Touch Technology | Interface Type: | USB,Serial |
|---|---|---|---|
| Touch Points: | 10 Points,can Be Customized,1~40 Points | Size: | 32" 42" 43" 49" 50" 55" 65" 70" 75" 80" 86"... |
| Operating System: | WIN,Android, MAC Optional | Interface: | USB2.0/3.0 |
| Material: | Aluminum Alloy Frame | Supply Voltage: | DC 5V |
| High Light: | Kiosk Ir Touch Frame 32 Inch,Serial Interface Ir Touch Frame 32 Inch,32 Inch interactive touch frame |
||

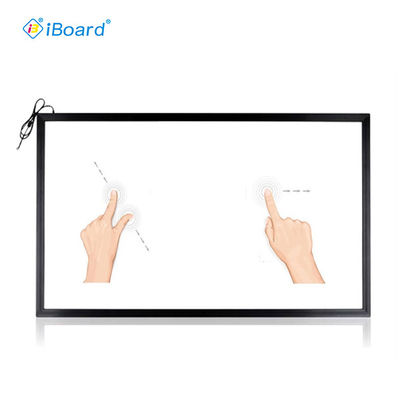

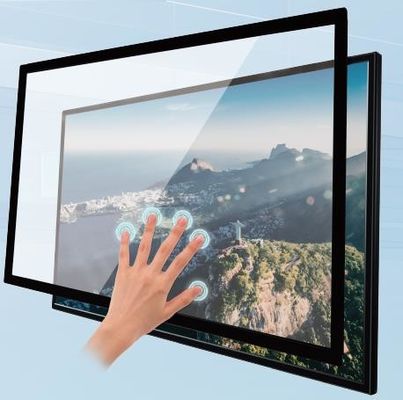

Interactive infrared touch frame is interactive kit which is widely used to convert any displays without touch to an interactive device. It support multi-touch, with smoothly writing experience.
Application
Digital Touch Signage/Touch Kiosk/Touch Screen Monitor/Interactive Video Walls/Touch Table/Vending Machine/Touch Inquiry Machine/Medical Devices/ATM and More...
Available sizes
Size: 21.5”~300”
Customized sizes available
1~40 touch points available
SKD available
Specification
| Specification | |
| Touch Technology | Infrared Touch Technology |
| Touch Points | 2, 10, 20, 40 touch points available |
| Touch Input Method | Finger, Pointer, Styplus pen or any other Opaque objects |
| Touch Interpolation | 32768 x 32768 |
| Respond Time | 5-10 ms |
| Touch Accuracy | ±2mm (over 90% Area) |
| Touch Durability | Unlimited |
| Available Size for Touch | Φ5mm |
| Supply Voltage | DC+5V±10% |
| Operating Current | <200mA for some sizes of some series; ≤500mA for some sizes of some series |

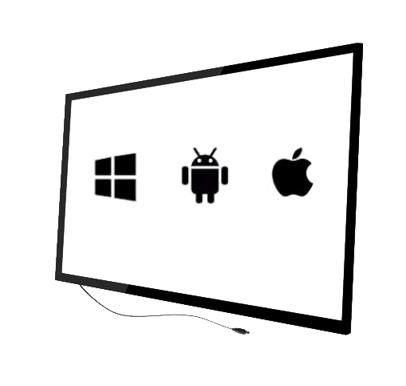

| Supporting System | Windows/Mac OS/Linux/Android/Chrome OS |
Packing
For multi-touch screen overlays with glass(above picture for reference)
For multi-touch ir touch frame disassemble in SKD mode:
