| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard/ OEM |
| Certification: | CE ROHS FCC |
| Model Number: | IB-PTB1205 |
| Minimum Order Quantity: | 5 pcs |
| Price: | USD60-100 per piece |
| Packaging Details: | Export cartons |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 pieces per Month |
| Input Resolution: | 1024×768-1280×720-1920×1080 | Operating System: | Windows/Android/Mac OS/iOS |
|---|---|---|---|
| Color: | Black | Name: | Screen Sharing Clicker PAPA Transmitter |
| Application: | Education,office, Traing, Business, Presentation, Meeting, Conference | Transmission Distance: | ＞20m@1080P |
| Function: | Business, Education, Traing, Meeting Room... | Carrying Capacity: | 8 WiFi Terminals |
| Transport Protocol: | Custom Protocol, AirPlay | Average Breaking Rate: | ＜ 1 Time / 12 Hours |
| Weight: | 88g | Size（L×W×H）: | 182mm×74mm×19mm |
| High Light: | 2.4g WiFi White Board Clicker,5.8g WiFi White Board Clicker |
||

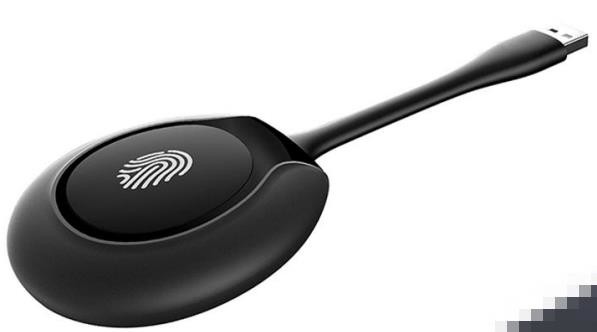

The Screen Sharing clicker is connected to the windows computer or Mac OS computer through the USB interface, which can obtain the content of the computer screen and transmit it to the receiving software or equipment wireless, so as to realize the wireless image transmission of the meeting content.

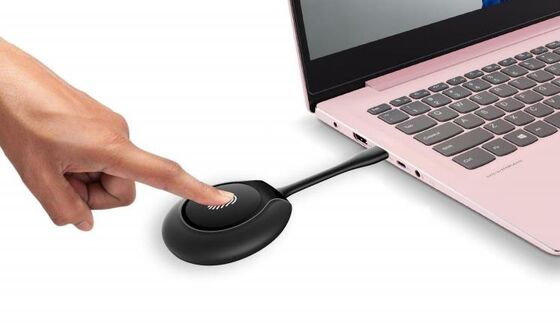

It is a hardware transmitting module with a USB interface. When the USB interface is plugged into the laptop of Mac OS or windows system, the client software can be started automatically, the user operation steps can be reduced, and the user experience can be greatly improved.
Parameter
| No. | Parameter | Detailed indicators |
| 1 | transport protocol | Custom protocol,AirPlay |
| 2 | application area | Business, teaching |
| 3 | WiFi band | 5.8g/2.4g dual frequency |
| 4 | Actual bandwidth | 480m bandwidth |
| 5 | Typical value of mouse delay | ＜55ms |
| 6 | Average breaking rate | ＜ 1 time / 12 hours |
| 7 | transmission distance | ＞20m@1080P |
| 8 | Controllability |
The transmitter is inserted into the computer, the application program is started automatically,connected automatically. The operation is simple and convenient |
| 9 | Input resolution | 1024×768-1280×720-1920×1080 |
| 10 | Carrying capacity | 8 WiFi terminals |
| 11 | Windows | Windows7/Windows8/Windows8.1/Windows10 |
| 12 | Android | Android 4.4.2 and above |
| 13 | iOS | IOS 9.0 and above |
| 14 | Mac OS | Mac OSX 10.6/10.7/10.8/10.9/10.14 |
| 15 |
IOS 9.0 and above video lossless transmission |
Maximum 1080p video source |
| 16 | transmission mode | Mirror mode |
| Push mode |
| 17 | Preemptive function |
Except that two IOS devices cannot preempt each other, all devices can preempt each other. |
| 18 | Touch back | Ten touch return |
| 20 | System upgrade | Remote upgrade over Internet Network |
| 21 | Interface preset | Yes |
