Dual System Infrared Interactive Whiteboard, 3840*2160 Multi Touch Smart Board

Basic Information
Place of Origin: China
Brand Name: iboard
Certification: FCC, CE, IC, RoHS
Model Number: TE-XP
Minimum Order Quantity: 1 set
Price: USD800-USD1800
Packaging Details: Carton or wooden packaging, oem available
Delivery Time: 25 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 units/month
Material: Aluminum Alloy Frame Resulotion: 3840*2160
Color: Black, Grey And Silver Touch Points: 10-20 Touch Customized Options
Feature: Infrared, LED Panel, Interactive Writing Stylus: Finger Or Any Opaque Object

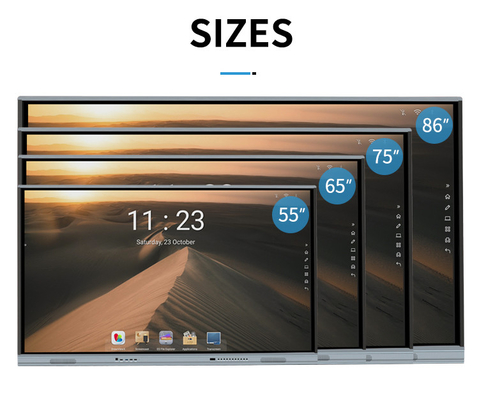

Speed: 5ms Size: 55/65/75/86/98 Inch
Highlight:

Dual System Infrared Interactive Whiteboard

,

3840*2160 Multi Touch Smart Board

,

3840*2160 Infrared Interactive Whiteboard

Dual System IR Infrared Built in Camera Microphone Multi Touch Screen Monitor

Specifications of Smart Interactive Whiteboard

Display
Screen Type TFT LED Display Ratio 16:9
Display Area 1428.5*803.5 mm(64.53 inch) View Angle 178°
Resolution 3840(H) x 2160(V) Response Time 6.5 ms
Brightness 350 cd/m3 Color Depth 10bit(R), 1.07Billon colors
Contrast 4000:1 Life Time 50,000 Hrs
Glass 4mm acid-etched tempered glass
TV SYSTEM
Connection N/A Sound System D/K, B/G, I, M
Video System PAL, NTSC, SECAM Channel N/A
Sound/SPeaker features
Speaker Type Built-In Speaker output 10W * 2
Audio Stereo Balance, Auto volume control, surround sound
android system
Android Version Android 8.0 GPU ARM Mali-51450MHz
CPU

2*ARM Cortex-A73

2*ARM Cortex-A53

RAM 4G
Dominant Frequency 1.5G ROM 32G
DISPLAY CONNECTION PORTS
Input Ports (Front) HDMI 1.4*1;USB Touch Port (B)*1, USB2.0*3(multi use for Android,OPS and external PC) Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1

Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1, DP*1

TOUCH SYSTEM
Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Positioning Accuracy ≤3mm

OS and points support

(driver free)

Windows 7/8/10, 10 points

Android 4.0 and up, 10 points

Mac 10.1 to 11, 1 point

Linux ubuntu 14.04 ~18.04,, 10 points

Internet
Ethernet 802.3 10/100 Wifi IEEE 802.11 a/b/g/n/ac, 802.3, 802.3u
Bluetooth 4.2 or Later


TE-XP is stylish design and it is hot sale product in overseas.

√ Dual System

√ Anti-glare reflection

√ Eye protection

√ Low radiation

√ Enviromental protection/ Battery saving

√ Multi optional connecting port

√ High accuracy ≤2mm

√ Anti-scratch

√ Multi touch (10/20 Touch points)

√ Gesture recognition

√ Support Windows/Linux/Mac/Chrome/Android

√ Built in Micophone/Camera ( Optional)

√ Support remote 4 meeting devices (Optional)

√ Support transcreen for 4 devices (Optional)

Dual System Infrared Interactive Whiteboard, 3840*2160 Multi Touch Smart Board 0Dual System Infrared Interactive Whiteboard, 3840*2160 Multi Touch Smart Board 1Dual System Infrared Interactive Whiteboard, 3840*2160 Multi Touch Smart Board 2Dual System Infrared Interactive Whiteboard, 3840*2160 Multi Touch Smart Board 3Dual System Infrared Interactive Whiteboard, 3840*2160 Multi Touch Smart Board 4

Certification:



Dual System Infrared Interactive Whiteboard, 3840*2160 Multi Touch Smart Board 5



Exibition:

Dual System Infrared Interactive Whiteboard, 3840*2160 Multi Touch Smart Board 6

Packing and Delivery:

Dual System Infrared Interactive Whiteboard, 3840*2160 Multi Touch Smart Board 7



FAQ:



1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.


2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 12 years. From material purchasing to product delivery, we have own professional
staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.


3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.


4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.


5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 12 years.


6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
